Large Open Beam Ceiling Background Music Sound System
This background music sound system features twenty-four Atlas Sound SBMS 8" 70V indoor speakers with easy-to-install fast clamp-mounts for vertical or horizontal installation on I-beams and girders, four Atlas Sound SM42T 4" 70V weather-resistant outdoor speakers, a JBL VMA1120 120W Bluetooth-enabled mixer/amplifier with priority ducking, a TOA PM-660U push-to-talk paging microphone and a TOA EV-20RPS digital message repeater. This large retail sound system is designed specifically for sporting goods stores, sports and outdoor gear retailers, fitness equipment stores, or any open beam ceiling application with outdoor areas.

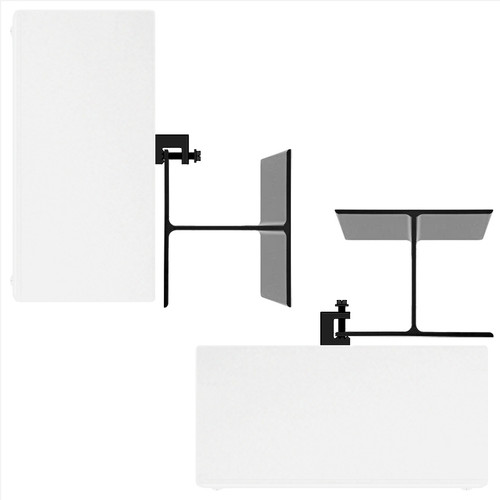

Atlas Sound SBMS 8" Open Beam Ceiling Mount Loudspeakers
The SBMS is ideal for "big box" retail stores whose special design calls for an open beam ceiling. To get customers to pay attention to the announcements of specials and the employees to respond to general paging—intelligibility is a top design goal. The high efficiency of the specially designed 8" speaker included in the SBMS package fills this requirement. The SBMS square design blends in with the overall aesthetic of an open beam ceiling. The SBMS is infinitely flexible, complying with a variety of conduit requirements. Integral knockouts facilitate 0.50" and 0.75" conduit where required by code while integral "romex" style connector simplifies installation for applications where conduit is not required at all. The SBMS also includes a 25V/70.7V internal transformer and is finished in neutral white epoxy for simplified stocking and ordering.
Atlas Sound SM42T 4" 2-Way Weather-Resistant Outdoor Speakers
Use surface-mount Atlas Sound SM42T Series loudspeaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.

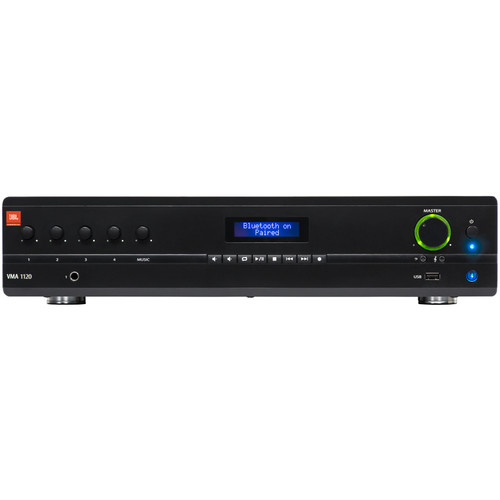

JBL VMA1120 120W 5-Channel Bluetooth Enabled Mixer Amplifier
The VMA1120 is a 5-channel input, 1 120W output channel mixer/amplifier. The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, particularly price-sensitive emerging markets.

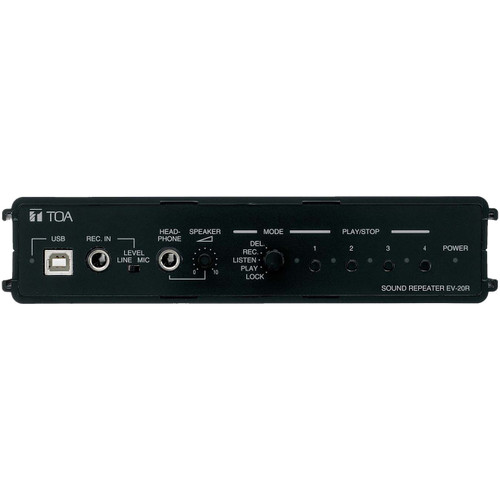

TOA EV-20RPS Digital Message Repeater with USB Connection
The TOA EV-20R Digital Message Repeater with USB is a convenient addition to sites where the same message or music is repeatedly broadcast. Up to 4 types of music and messages (6 minutes total time) can be recorded and played back. The USB port facilitates recording by transferring the supplied sound sources from a PC to the unit. The unit's small built-in amplifier enables small-scale broadcasts through a simple speaker connection. The EV-20R Sound Repeater is used to record and play back sounds produced from a microphone, CD player or other sources. Its particularly ideal applications include repeated broadcasts of the same message in schools, department stores and factories. Flash memory is used as a recording medium, and up to 4 different messages can be recorded and played back. The Sound Repeater also permits broadcasts to be made directly from the microphone or CD player without recording.
TOA PM-660U Desktop PTT Paging Microphone
TOA’s PM-660U is an elegantly styled, compact desk microphone for use in public address, paging and radio communication systems. Ideal applications include restaurants, offices, warehouses, transportation terminals, dispatch centers and entertainment facilities. Its smooth, natural response provides high-quality voice reproduction and excellent articulation to enhance the overall performance of your system. Compact and lightweight, the PM-660U requires a minimum of desk or counter space and is easy to handle. To significantly reduce background noise and feed-back, the PM-660U features a cardioid pick-up pattern that is uniform over the entire frequency range. The dynamic microphone element has a 600 ohm balanced output and the microphone is supplied with an attached 8.2’, four-conductor cable with stripped wire ends. Two conductors are shielded and are dedicated for the microphone signal. The other two unshielded conductors connect to an auxiliary, normally-open switch contact, used to activate external muting, priority or relay control circuits. The auxiliary switch contact is closed by using the push-to-talk bar, which also turns on the microphone by opening a second set of contacts that normally short the mic element. A locking lever is provided to keep the push-to-talk bar in the "on" position when the microphone must be kept open for an extended period. A wire mesh grille protects the mic element and incorporates an internal windscreen to reduce popping noises from speech. Ideal for desktop or shelf mounting, the integral microphone stand/base is fitted with four, rubber isolated feet to reduce mechanical noise pick-up. Constructed of high impact ABS resin, the microphone is finished in a neutral dark gray with a prominent, orange push-to-talk button.
Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
