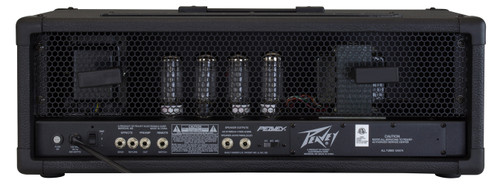

Peavey 6505 120W Guitar Amplifier Head (Discontinued)

Peavey 6505 120W Guitar Amplifier Head (Discontinued)

Name: Peavey 6505 120W Guitar Amplifier Head (Discontinued)
Brand: Peavey
SKU: PEAVEY-00575660
Price: 999 USD
Availability: OutOfStock

Write a Review

Part #:

00575660

Model #:

6505

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Named in celebration of Peavey's first 40 years, the 6505 is the undisputed go-to guitar amplifier for scores of rock, hardcore and metal bands for their raw tone, relentless power and road-proven reliability.

Description

Named in celebration of Peavey's first 40 years, the 6505 Series is the undisputed go-to guitar amplifier for scores of rock, hardcore and metal bands for their raw tone, relentless power and road-proven reliability. The 6505 is still the unquestionable choice for an ever-expanding list of endorsers.

6505® Series amps feature five 12AX7 preamp tubes and four 6L6GC power amp tubes, with presence and resonance controls and three-band EQ for taming their notorious tone.

The 6505 Series is the undisputed go-to guitar amp series for scores of rock and metal bands due to their raw tone, relentless power and road-proven reliability.

Features

High and low gain inputs
120 watts (rms) into 16, 8, or 4 ohms (switchable)
2-channel preamp switchable on front panel or remote footswitch
Rhythm channel: pre-/post-gain, bright and crunch switches
Five 12AX7 preamp tubes and four 6L6GC power amp tubes
Channels share 3-band EQ
Presence and resonance controls
Switchable post-EQ effects loop
Preamp output
Footswitch included
Lead channel: pre-/post-gain

Specifications

Power Amplifier Section
Rated Power and Load:	120 W RMS into 16, 8, or 4 ohms
Power @ Clipping:	Typically @ 5% THD, 1 kHz, 120 V AC line 130 W RMS into 16, 8, or 4 ohms
Frequency Response:	+0, -3 dB, 50 Hz to 20 kHz, @ 100 W RMS into 8 ohms
Hum & Noise:	Greater than 75 dB below rated power
Power Amp EQ:	Active Presence: +10 dB @ 2 kHz Active Resonance: + 10 dB @ cabinet resonant frequency
Power Consumption:	400 watts 50/60 Hz, 120 V AC Domestic
Preamp High Gain Input:	Impedance: Very High-Z, 470K ohms
Lead Channel:	Nominal Input Level: -80 dBV, .1 mV RMS Minimum Input Level: -92 dBV, .025 mV RMS
Lean Channel
Nominal Input Level:	-34 dBV, 20 mV RMS
Minimum Input Level:	-50 dBV, 3 mV RMS
Maximum Input Level:	0 dBV, 1.0 V RMS
Preamp Low Gain Input:(-6 dB pad):	Impedance: High-Z, 44K ohms All levels are increased by +6 dB
Effects Send:	Load Impedance: 47K ohms or greater Nominal Output: -10 dBV, 300 mV RMS
Effects Return:	Impedance: Very High-Z, 470K ohms Designed Level: -10 dBV, 300 mV RMS
Preamp Output:	Load Impedance: 47K ohms or greater Nominal Output: +10 dBV, 3 V RMS
Remote Footswitch:	Special 2 button unit with LED indicators (supplied)Channel select & Effects loop bypass
System Hum & Noise @ Nominal Level:(Clean channel):	(20 Hz to 20 kHz unweighted) Greater than 74 dB below rated power
Equalization:	Custom Low, Mid & High passive type EQ Push Bright (Rhythm channel only)+6 dB @ 2 kHz
General
Dimensions (H x W x D)	10" (254 mm) x 26.625" (676.275 mm) x 11.75" (756.92 mm)
Weight:	48.3 lbs. (21.9 kg)
