Outdoor Public Address Sound System
This Public Address Sound System is perfect for outdoor settings where vocal clarity and coverage are essential. This system provides high-quality music and voice reproduction in applications requiring the ultimate in extreme weather-resistance. Includes a built-in 200W transformer with selectable taps at 200W, 100W, 50W and 25 watts.Typical applications are football, baseball and soccer fields, race tracks and parking areas.

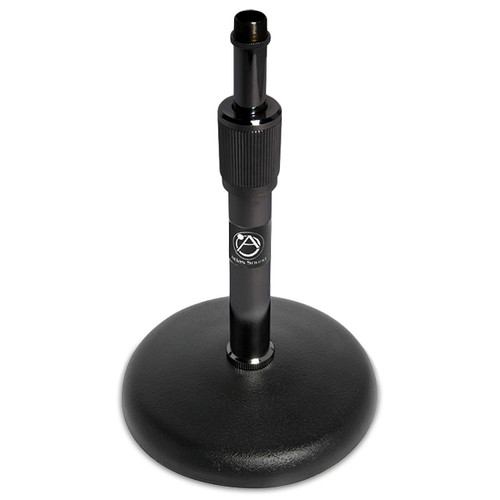

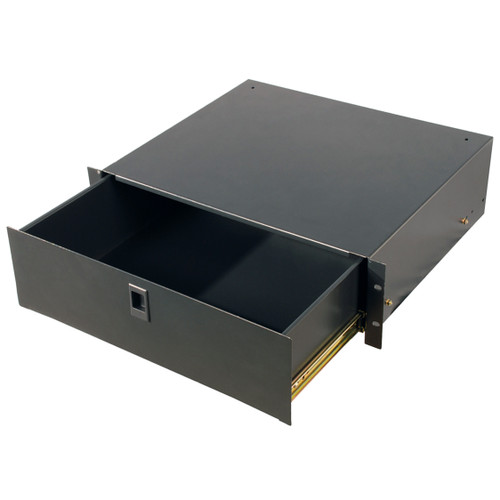

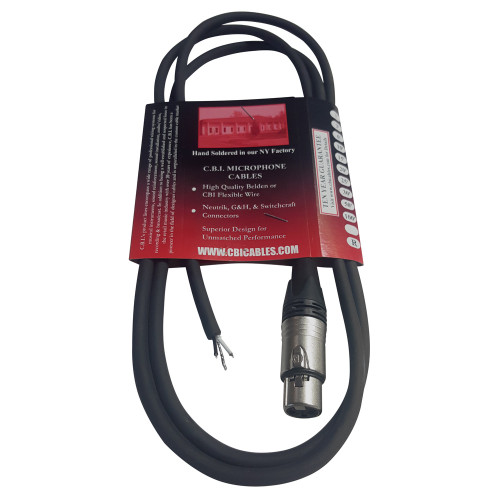

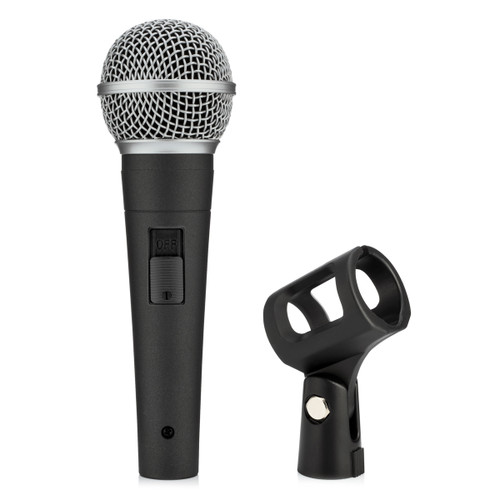

This complete system includes 5 Community W2-312-94HT all-weather 70V/100V loudspeakers, Crown CDI 4000 2-channel power amplifier, Yamaha MGP24X 24-channel mixer, Audio-Technica ATW-3141B wireless handheld system, DBX DriveRack PA2 management system, Tascam CD-500 CD player, RC-20 direct play remote, Atlas Sound AP-S15LA power conditioner and distribution unit, 2 Shure BRH440M-LC dual-sided broadcast headsets, Pure Resonance Audio UC1S microphone with on/off switch, Atlas Sound DS7E desktop mic stand, Gator GRW1009508 9U wall rack with steel door, GRW-DRW3 3U rack drawer with cables and speaker wire included to get your system up and running.
Community W2-312-94HT All-Weather 70V/100V Loudspeakers
The W2-312-94HT is a high output, three-way loudspeaker system, with a 90 H x 40 V coverage pattern, designed to provide high-quality music and voice reproduction in applications requiring the ultimate in extreme weather-resistance. The HF driver uses a proprietary 1" exit, non-metallic diaphragm and a proprietary 2" exit MF driver with an environmentally inert mylar diaphragm. The 12" LF driver utilizes a molded carbon fiber cone. Ferrofluid fills the voice coil gaps to prevent gap corrosion, to improve thermal power handling, and reduce power compression. Community's precision passive frequency dividing networks minimize band overlap through the use of high order filters which maintain linear phase response characteristics.

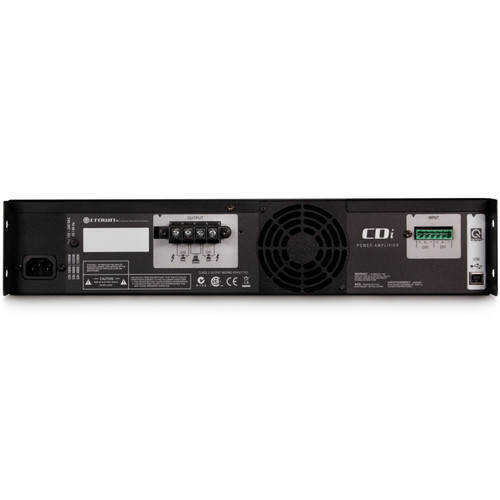

Crown CDi 4000 2-Channel Power Amplifier
The CDi 4000 from Crown Audio is a rugged, lightweight amplifier designed for installed audio applications. The CDi 4000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It also handles a wide range of speaker impedances and outputs, making it very versatile. Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 4000 also has integrated DSP presets for crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information.
Yamaha MGP24X 24-Channel Premium Analog Mixing Console
Drawing from decades of experience crafting innovative, premium analog gear, we originally developed our new discrete Class-A microphone preamps for professional use in our high-end recording equipment. Utilizing an inverted Darlington circuit design, our newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ we've managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.
Audio-Technica ATW-3141b Wireless Handheld System
The AT-ATW-3141B offers up to 1001 selectable UHF frequencies and new features for clear sound and intuitive operation. They have simplified selections of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.
DBX DriveRack PA2 Loudspeaker Management System
The DBX DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
Tascam CD-500 Single Rackspace CD Player
The CD-500 is a slot-loading CD player with a new transport, featuring brushless motors and an edge-grabbing mechanism to prevent disc damage. A front-panel 10-key pad gives you instant access to CD tracks, and flash start is available for instant playback. The CD-500 supports MP3 and WAV file playback from CD-ROM as well as traditional audio CDs.
Tascam RC-20 Direct Play Remote
The RC-20 Direct Play Remote brings instant playback through flash start to the CD-500 or CD-500B – the only CD players available with flash start capability. A set of 20 pushbuttons on the remote play the first 20 tracks on a CD when plugged into the remote jack on the CD-500 or 500B. The simple-to-use remote includes space to label each track to help locate the target material. A Stop/Load button is also available for preloading tracks and stopping playback.

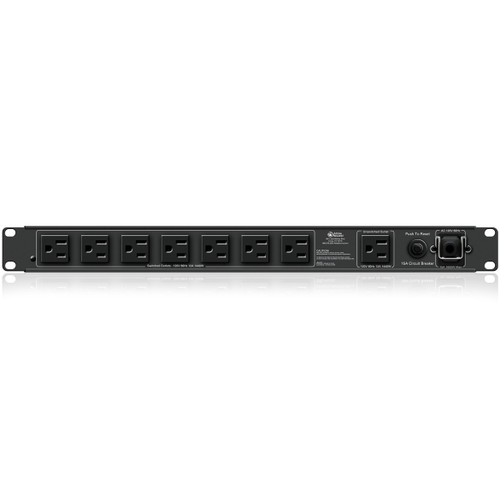

Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit
The AP-S15LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies. Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15LA's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15LA includes a pull out from lamp, 12 foot removable IEC cord with retainer.

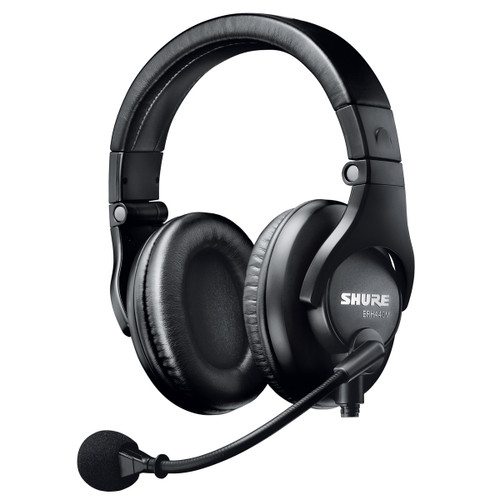

Shure BRH440M-LC Dual-Sided Broadcast Headsets
The BRH440M-LC, with circumaural ear cups that block out background noise, is ideal for use in broadcast and media production applications. A dynamic cardioid microphone delivers natural, clear vocal reproduction. Wearable on the left or right side, the flexible boom offers a flip-up mute function that deactivates the microphone when raised vertically.
Gator GRW1009508 9U 17" Deep Fixed Wall Rack with Steel Door
The GRW1009508 rackworks fixed wall mounted rack from Gator Cases features a fixed back, single section, and welded frame construction. The rack consists of 18 gauge removable side panels with spring latches and an 18 gauge SPCC cold-rolled steel top and bottom. There is 11 gauge drilled and tapped front and rear rack rails, and the top is perforated to accommodate a fan. The rack U number is printed on the rack rails, and an included removable 18 gauge mounting panel allows for easy wall installation. There are 10/32 rack screws, a 5/8" knockout design for a VHF/UHF antenna, and a 10 x 10" rear access knockout for cables. Additional cable entry knockouts on the top and bottom include knockouts with 1/2", 5/8", 1.0", and 1 1/2" dimensions. the rackworks fixed wall mounted rack uses an 18 gauge solid steel door.
