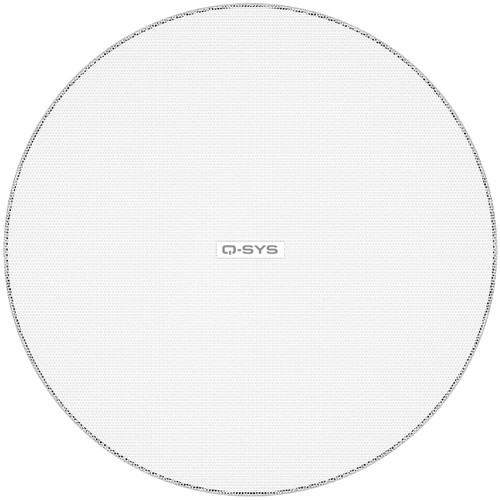

QSC AD-C10T-HPZB AcousticDesign 10" 2-Way High-Power Zero-Bezel Ceiling Loudspeaker 70/100V with 16-Ohm Bypass - Pair

QSC AD-C10T-HPZB AcousticDesign 10" 2-Way High-Power Zero-Bezel Ceiling Loudspeaker 70/100V with 16-Ohm Bypass - Pair

Name: QSC AD-C10T-HPZB AcousticDesign 10" 2-Way High-Power Zero-Bezel Ceiling Loudspeaker 70/100V with 16-Ohm Bypass - Pair
Brand: QSC Audio
SKU: QSC-AD-C10T-HPZB-WH
Price: 1744 USD
Availability: InStock

Write a Review

Part #:

AD-C10T-HPZB-WH

Model #:

AD-C10T-HPZB

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The QSC AD-C10T-HPZB is a high-power, 10-inch, two-way ceiling loudspeaker with a sleek zero-bezel design. It delivers consistent tonal performance across the AcousticDesign Series and features a DMT™ waveguide, Q-SYS voicings, and UL certification.

Description

QSC AD-C10T-HPZB AcousticDesign 10" High-Power Zero-Bezel In-Ceiling Speakers

The AD-C10T-HPZB is a high-power 10-inch ceiling loudspeaker featuring a sleek, bezel-less design. It delivers consistent tonal characteristics across the entire AcousticDesign™ Series, whether surface, ceiling, or pendant mounted. The DMT™ (Directivity Matched Transition) waveguide ensures smooth and uniform frequency response throughout the coverage area. Designed for easy installation, it includes a snap-fit magnetic grille and a 3x double-stepped, long-travel dog-ear blind mount system. Advanced Intrinsic Correction™ voicings are available via the Q-SYS™ Platform, including CX-Q amplifiers. Additional features include a blemish-free removable logo, a removable conduit cover plate for pre-install wiring, and UL1480 and UL2043 certification. It is available in white (RAL 9003), with a black grille accessory sold separately.

Features

High-power 10" ceiling loudspeaker with bezel-less design
Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified
Available in white (RAL 9003), with black grille accessory sold separately.

Specifications

Frequency Range (-10 dB)	68 Hz - 20 kHz
HF Driver	Coaxial compression driver 1.5" (38.1 mm) voice coil
LF Driver	10" (254 mm), 2.0" (50.8 mm) voice coil, ferrite
Coverage	90° conical DMT
Power Rating	Continuous power 250 W @ 8 Ω, rated Power 500 W
Connectors	4-pin 0.2" (5 mm) Euroblock connector with parallel output
Sensitivity	92.5 dB @ 1 W/ 1 m
Maximum Continuous SPL	116 dB
Maximum Peak SPL	128 dB
Rated Bypass Impedance	8 Ω
Transformer Taps (70V/ 100V)	25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
Enclosure Material	ABS baffle on powder coated steel back can
Safety Agency	UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems.
Included Accessories	Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille
Cut-Out Dimensions (Dia)	12" (305 mm)
Dimensions (Dia x H)	13.5" (342.9 mm) x 13.75" (349.25 mm)
Shipping Dimensions (H x W x D)	19.5" (495.3 mm) x 17.5" (444.5 mm) x 32" (812.8 mm)
Net Weight (Individual)	23 lbs (10.5 kg)
Shipping Weight (Pair)	68.1 lbs (30.9 kg)
