RDL D-RN22 2x2 Wall-Mounter Bi-Directional Dante Interface with XLR Mic and Line Inputs - White

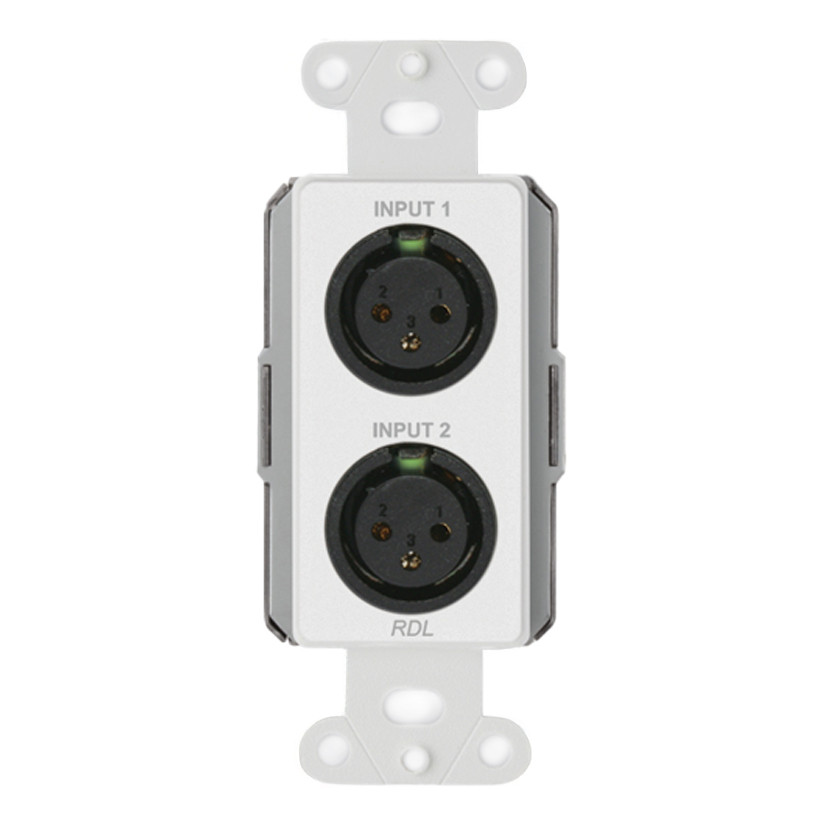

RDL D-RN22 2x2 Wall-Mounted Bi-Directional Mic/Line Dante Interface

More Views

RDL D-RN22 2x2 Wall-Mounter Bi-Directional Dante Interface with XLR Mic and Line Inputs - White

Part # D-RN22

Model # D-RN22

The RDL D-RN22 is a white 2x2 wall-mounted Dante or AES67 interface with dual XLR mic/line inputs and balanced outputs. Featuring software-controlled gain, P48 phantom power, and 24-bit conversion, it delivers low-noise, studio-quality networked audio in a compact single-gang design.

Availability:

List Price $970.92

Pro Acoustics Price Price $733.32

Your Savings $237.60 (24%)

Qty:

Share with
Add to Wishlist

Description

Details

RDL D-RN22 Bi-Directional Mic/Line Dante Interface in White

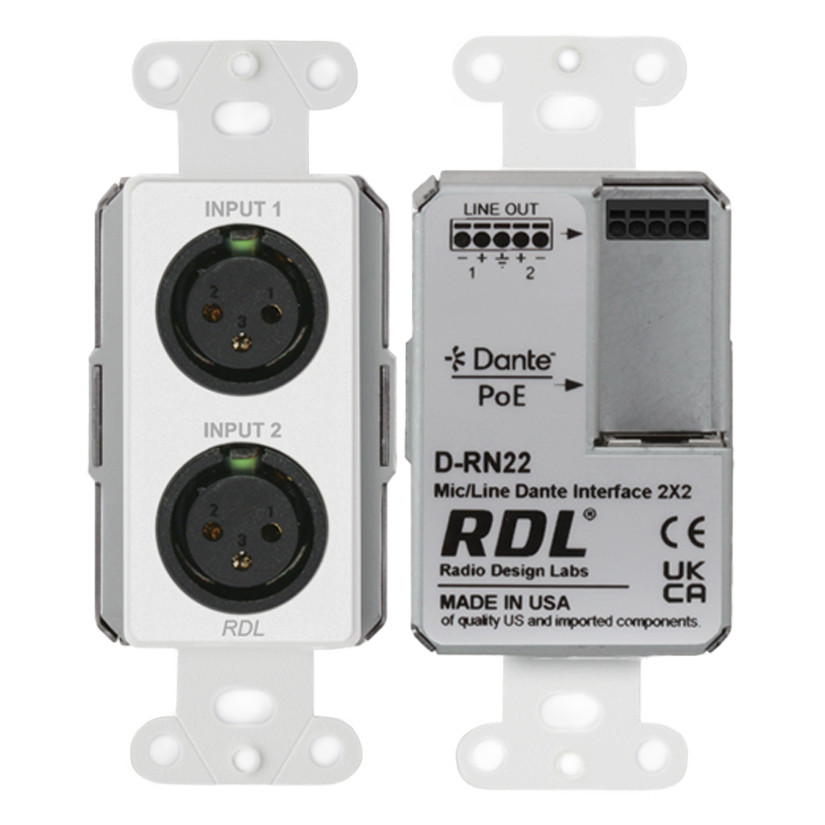

The D-RN22 is a compact, professional 2x2 bi-directional Dante or AES67 network interface in a clean white single-gang wall-mounted design. It features two front-panel XLR mic or line inputs and two balanced line outputs on a rear detachable wiring block. Each input is converted to Dante network audio with software-selectable gain and optional 48V phantom power, while network audio is converted back to balanced line-level outputs with precise software-controlled attenuation.

Designed for seamless integration, the D-RN22 is configured using RDL CONSOLE or other network control software and is compatible with RDL network remote controls. High-resolution 24-bit analog-to-digital and digital-to-analog conversion, combined with RDL's legendary low-noise circuitry, ensures exceptional audio clarity and performance for professional AV installations.

The white Decora-style faceplate blends cleanly into modern environments, while PoE power simplifies installation by eliminating the need for local power supplies. Built with a durable steel chassis and designed to fit standard US single-gang or international back boxes, the D-RN22 is ideal for classrooms, conference rooms, and commercial audio systems requiring reliable, high-quality networked audio.

Features

Features

Wall-mounted 2x2 Dante or AES67 audio network interface in white
Two front-panel XLR mic/line inputs with software-selectable gain
Two balanced line outputs on a rear detachable wiring block
Converts mic/line signals to Dante network audio channels
Converts Dante network audio to balanced line-level outputs
Mic gain selectable: 35 dB, 42 dB, 59 dB; line gain: unity or 12 dB
P48 phantom power selectable via software
Software-controlled output attenuation in 1 dB steps
High-resolution 24-bit A/D and D/A conversion
Studio-quality, low-noise RDL audio performance
Configurable via RDL CONSOLE or compatible network software
Compatible with RDL network remote controls
PoE powered for simple installation
Fits standard single-gang US or international wall boxes
Durable steel chassis with white Decora-style front plate

Specification

Audio Network Protocol	Dante and AES67
Channels	2 Input x 2 Output (Bi-Directional)
Network Connection	RJ45 Ethernet with link and speed indicators
Transmission Rate	100 Mbps
Sample Rates	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Analog Inputs	2 x XLR female (mic/line)
Analog Outputs	2 x balanced detachable wiring block
Mic Gain	35 dB, 42 dB, 59 dB (software selectable)
Line Gain	Unity or 12 dB (software selectable)
Phantom Power	P48, software selectable
Frequency Response	20 Hz to 20 kHz (±0.5 dB)
THD+N	<0.1%
Output Level	+4 dBu nominal, +22 dBu maximum
Power Requirement	PoE Class 0, IEEE 802.3af
Dimensions (H x W x D)	4.11" (104.39 mm) x 1.80" (45.72 mm) x 2.09" (53.09 mm)
Shipping Weight	0.70 lbs (0.32 kg)
