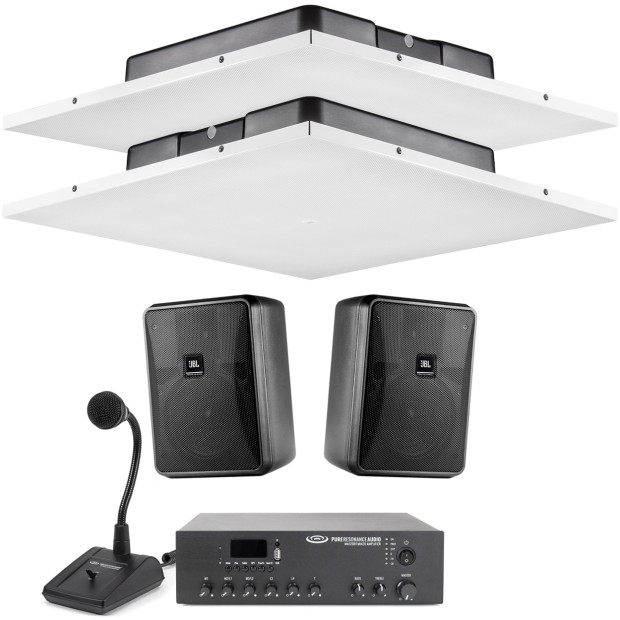

Restaurant Sound System for Indoor Outdoor Waiting Areas with 2 JBL Lay-In Ceiling Tile Speakers, 2 Outdoor Surface Mount JBL Speakers, Bluetooth Mixer Amplifier and Paging Mic

Inside the Design

This JBL restaurant auxiliary sound system for indoor/outdoor spaces features two JBL LCT 81C/T in-ceiling lay-in speakers and two JBL Control 25-1 outdoor wall mount speakers, great for adding clear background music and paging to your indoor and outdoor restaurant waiting areas, lounge, foyer, lobby, and/or entryway to improve the ambiance without overpowering customers' conversations. Provide clear, intelligible paging and background music that customers will appreciate. The JBL in-ceiling speakers provide high-quality sound, and the outdoor speakers offer wide coverage, consistent dispersion, and versatile mounting ideal for outdoor restaurant entryways. With the Pure Resonance Audio MA120BT Bluetooth mixer amplifier, you can connect your personal device or laptop to accommodate your audio needs with the ability to stream wirelessly via Bluetooth. The Pure Resonance Audio PTT1 desktop push-to-talk gooseneck microphone for paging and announcements features reliable push-to-talk functionality for clear communication.

Sound System Features:

• Low-profile JBL LCT 81C/T lay-in ceiling tile speakers designed for excellent performance for paging and light-to-medium music in a wide variety of applications
• JBL Control 25-1 indoor/outdoor wall mount speakers with InvisiBall® mounting hardware for a sleek look with flexible mounting angle adjustment to customize your audio coverage
• Pure Resonance Audio MA120BT Bluetooth mixer amplifier with 7 channels and 120W of power, enabling wireless music streaming and multiple input connections
• Inputs available for connecting personal devices (laptop, smartphone, tablet, etc.) or a paging microphone, if desired
• Pure Resonance Audio PTT1 push-to-talk gooseneck microphone ensures clear communication with push-to-talk functionality
• Designed as a simple DIY audio solution to install and operate



About the System Components

JBL LCT 81C/T In-Ceiling Speakers

The JBL LCT 81C/T speakers are low-profile lay-in ceiling tile speakers built for high-quality performance in paging and light-to-medium music applications. These speakers provide excellent sound clarity and are ideal for various indoor restaurant areas.

JBL Control 25-1 Wall Mount Speakers

The JBL Control 25-1 speakers are weather-resistant indoor/outdoor wall mount speakers featuring InvisiBall® mounting hardware for flexible angle adjustments. They deliver wide coverage and consistent dispersion, making them ideal for outdoor restaurant entryways.

Pure Resonance Audio MA120BT Mixer Amplifier

The Pure Resonance Audio MA120BT is a 7-channel 120W Bluetooth mixer amplifier offering seamless operation for commercial sound applications. It supports wireless streaming via Bluetooth and features multiple input connections for versatile audio management.

Pure Resonance Audio PTT1 Gooseneck Microphone

The Pure Resonance Audio PTT1 is a desktop push-to-talk gooseneck microphone designed for clear paging and announcements. Its reliable push-to-talk functionality ensures intelligible communication in commercial environments.

System & Component Videos

JBL LCT 81C/T 2 x 2' Low-Profile Lay-In Ceiling Tile Loudspeakers with 8" Drivers

• High efficiency 200 mm (8 in) dual-cone driver
• Easy lay-in installation into 2' x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary
• Perforated metal grille included
• Combined 70V/100V and low impedance direct operation
• 20 Watts at 8Ω (low-impedance) direct setting
• 10 Watt multi-tap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only)
• Very low-profile at just 103 mm (4.1 in) deep, to fit into ceilings that are shallow or that contain obstructions
• Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out
• Very high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners
• Designed for high speech intelligibility
• 100° Coverage pattern (conical)
• UL1480A and UL2043 certifications for use in ceiling plenum spaces



JBL Control 25-1 Indoor/Outdoor 5" Speakers

• 5.25" woofer with woven fiberglass cone
• 3/4" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
• High fidelity sound character with broad frequency response of 60 Hz – 20 kHz

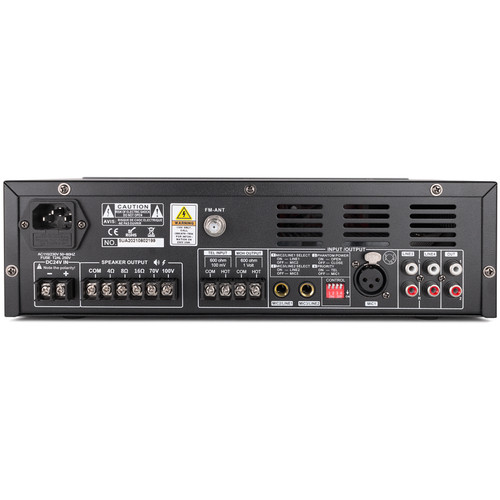

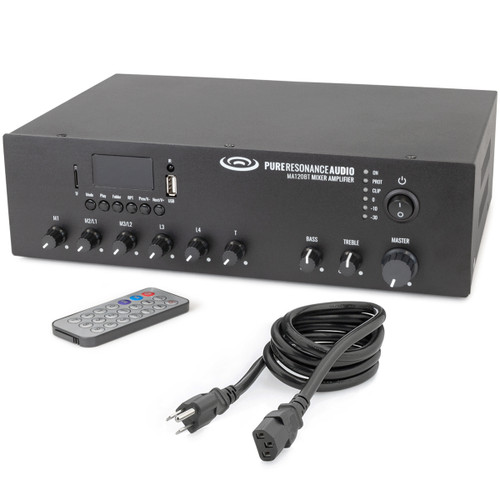

Pure Resonance Audio MA120BT 120W Commercial Mixer Amplifier

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

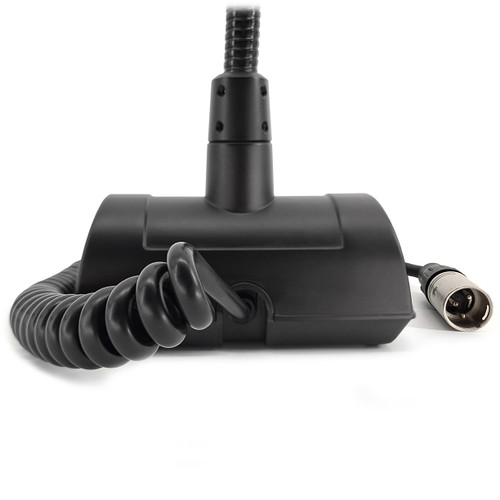

Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone

• Built To Last - Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• Paging and Announcements - This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• Excellent Performance - The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• Metal Table-Stand - The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• Push-To-Talk Switch - The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• Simple Setup - The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up

• (2) JBL LCT 81C/T 2 x 2' Low-Profile Lay-In Ceiling Tile Loudspeakers with 8" Drivers
• (2) JBL Control 25-1 Indoor/Outdoor 5" Speakers
• (1) Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (250') West Penn 224 18/2 Non-Plenum Audio Speaker Wire
