Roland M-48 32-Channel Live Digital Mixing Console (Discontinued)

By Roland Systems Group

Roland M-48 32-Channel Live Digital Mixing Console (Discontinued)

Name: Roland M-48 32-Channel Live Digital Mixing Console (Discontinued)
Brand: Roland Systems Group
SKU: ROLAND-M48
Price: 895 USD
Availability: OutOfStock

Write a Review

Part #:

M48

Model #:

M-48

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

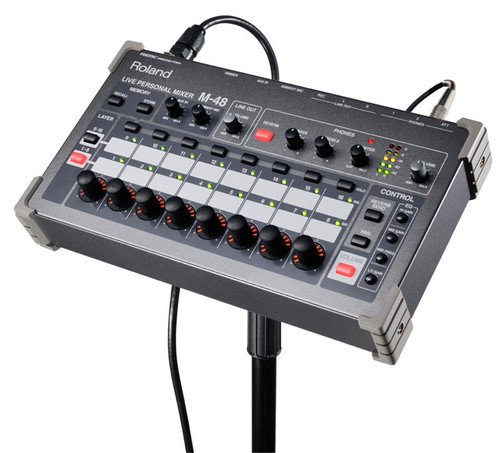

The Roland M-48 Live Personal Mixer offers superb sound quality that creates the ideal monitoring environment for live performance and recording as well as studio applications.

Description

The Roland M-48 is a live personal mixer that is the "next generation" of live personal mixers. It offers musicians the flexibility to control exactly what they want to listen to during their performances and provides the highest level of sound monitoring quality for both headphones and IEMs (In-Ear Monitors) as well as for wedge and powered monitors. The superb sound quality creates the ideal monitoring environment for live performance and recording as well as studio applications.

Features

Unprecedented Personalization
Professional Sound Control and Quality
Unparalleled Usability
Convenient Connectivity
A Complete Digital Mixing System with the M-400 V-Mixer
Can connect to an existing Analog/Digital Console

Specifications

Number of Inputs	40 inputs (REAC), Stereo AUX, Ambient Mic
Number of Outputs	Headphones ×2, L/R Balanced TRS, Stereo Line
AD/DA Conversion	24-bit / 96kHz, 48kHz or 44.1kHz
Nominal Input Level	AUX IN L/R jack: -16 dBu (Vol: Max)
Input Impedance	AUX IN: 10k ohms
Non Clip MaximumInput Level	AUX IN: +2dBu
Nominal Output Level	LINE OUT L/R jacks: -6 dBu (LINE OUT Vol: Unity, Load impedance: 10 k ohms) LINE OUT REC L/R jack: -12 dBu (LINE OUT Vol: Unity, Load impedance: 10 k ohms)
Output Impedance	PHONES jacks (1, 2): 10 ohms LINE OUT L/R jacks: 600 ohms LINE OUT REC L/R jack: 1 k ohms
Recommended Load Impedance	PHONES jacks (1, 2): 16 ohms or greater (Composition impedance of 1 and 2) LINE OUT L/R jacks: 10 k ohms or greater LINE OUT REC L/R jack: 10 k ohms or greater
Non Clip MaximumOutput Level	PHONES jacks (1, 2): 250 mW + 250 mW (1 or 2, 1 kHz, 40 ohms load) LINE OUT L/R jacks: +12 dBu (1 kHz, 10 k ohms load) LINE OUT REC L/R jack: +6 dBu (1 kHz, 10 k ohms load)
Connectors	REAC port: RJ-45 EtherCon type AUX IN L/R jack: Stereo miniature phone type LINE OUT L/R jacks: 1/4 inch TRS phone type LINE OUT REC L/R jack: Stereo miniature phone type PHONES jacks: Stereo miniature phone type and Stereo 1/4 inch phone type
Power Supply	DC +48 V (It is supplied by S-4000D)
Power Consumption	13W
Dimensions	2.69" H x 11.75" W x 6.75" D (67 mm x 297 mm x 171 mm)
Weight	3 lbs 5 oz (1.5 kg)
