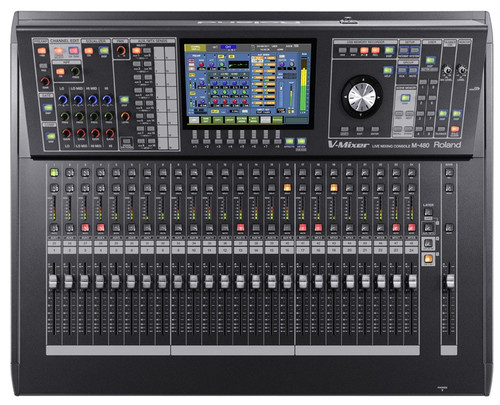

The Roland M-480 V-Mixer is a live mixing console that boasts a powerful mixing engine, providing a premium console choice. But the M-480 is more than a console; it is the heart of a V-Mixing System with perfectly integrated Digital Snakes, Personal Mixing and Multi-Channel Recording solutions.
With superb sound quality, powerful functions, expandability and intuitive operation, the V-Mixing System continues to introduce new possibilities to the world of live mixing.
The M-480 is the first V-Mixer to support a cascade connection that enables 96 channels of mixing by connecting a second unit.
Supporting live events, mobile production, broadcasting, and sound installation the V-Mixing System with the V-Mixer at its heart provides the next level of innovation for any live mixing venue.
The M-480 provides a 4-band fully parametric EQ, gate, compressor, and delay on each input channel.185 possible patch points with 90 discreet outputs. Its user interface is designed to be easy to learn and easy to use. Combining the cursor buttons around the value dial provides optimized and efficient operation.
The M-480 is also equipped with delays on all mixing channels and outputs buses. High quality and precise sound adjustments can be accomplished by using the built-in real time analyzer. The M-480 supports a cascade connection requested by many live sound engineers. Connecting two M-480s with one REAC cable enables the mixing of up to 96 channels as well as advanced synchronization of internal busses. A mixing environment equivalent to a large format console can be created within a minimal footprint and budget.
| Processing | |
|---|---|
| Mixing Channels | INPUT: 48 channels, 6 stereo returns; BUS: MAIN L/C/R, 16 AUX, 8 MATRIX; |
| AD/DA Conversion | 24-bit/48.0 kHz or 44.1 kHz |
| Network Latency | 2.8 mS (typ.); Total System Latency of audio signal from S-1608 inputs to outputs via M-480's |
| Connector | |
| CONSOLE INPUT jacks (1 to 8) | XLR-3-31 type (balanced, phantom power) |
| TALKBACK MIC IN jack | XLR-3-31 type (balanced, phantom power) |
| STEREO IN jacks (L / R) | RCA phono type |
| CONSOLE OUTPUT jacks (1 to 8) | XLR-3-32 type (balanced) |
| PHONES jack | Stereo 1/4 inch phone type |
| DIGITAL OUT jacks Stereo | Optical type, Coaxial type |
| REAC Ports | RJ-45 EtherCon type |
| USB connectors | USB Type A and Type B |
| Remote Controls | RS-232C connector: 9-pin D-sub type, MIDI connectors (OUT/THRU, IN): 5-pin DIN type |
| Other Connectors | GND Terminal, LAMP connector XLR-4-31 type |
| Input/Output | |
| Frequency Response | CONSOLE OUTPUT jacks (1 to 8): -2 dB / +0 dB (20 k ohms load, +4 dBu,typ.) |
| Total Harmonic Distortion + Noise | CONSOLE OUTPUT jacks (1 to 8): 0.05 % (+4 dBu, typ.) |
| Dynamic Range | CONSOLE OUTPUT jacks (1 to 8): 110 dB (typ.) |
| Crosstalk@ 1 kHz | CONSOLE INPUT jacks (1 to 8): -80 dB (Pad: ON, Input gain: +10 dBu, typ.) |
| Nominal Input Level (Variable) | CONSOLE INPUT jacks (1 to 8): -65 to -10 dBu (Pad: OFF) or -45 to +10 dBu (Pad: ON), (typ.) |
| Input Impedance | CONSOLE INPUT jacks (1 to 8): 14 k ohms STEREO IN jacks (L / R): 10 k ohms |
| Non Clip Maximum Input Level | CONSOLE INPUT jacks (1 to 8): +8 dBu (Pad: OFF) or +28 dBu (Pad: ON),(typ.) |
| Nominal Output Level | CONSOLE OUTPUT jacks (1 to 8): +4 dBu (Load impedance: 10 kohms, typ.) |
| Output Impedance | CONSOLE OUTPUT jacks (1 to 8): 600 ohms; PHONES jack: 100 ohms |
| Recommended Load Impedance | CONSOLE OUTPUT jacks (1 to 8): 10 k ohms or greaterPHONES jack: 8 ohms or greater |
| Non Clip Maximum Output Level | CONSOLE OUTPUT jacks (1 to 8): +22 dBu (1 kHz, 10 k ohms load, typ.) |
| Residual Noise Level (IHF-A, typ.) | -88 dBu (All faders: Min) |
| Equivalent Input Noise Level (E.I.N.) | -126 dBu |
| Other | |
| Display | 800 x 480 dots Wide VGA backlit TFT color screen |
| Power Supply | AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) |
| Power Consumption | 95 W |
| Physical | |
| Dimensions (H x W x D) | 9.06" (230 mm) x 29.5" (749 mm) x 24.19" (614 mm) |
| Weight | 44 lbs (20 kg) |
