Shure FP15/83 Lavalier Wireless System

Home /
Live Sound Equipment /
Microphones /
Wireless Microphone Systems /
Lavalier Microphone Systems /
Shure FP15/83 Lavalier Wireless System (Discontinued)

Description

Details

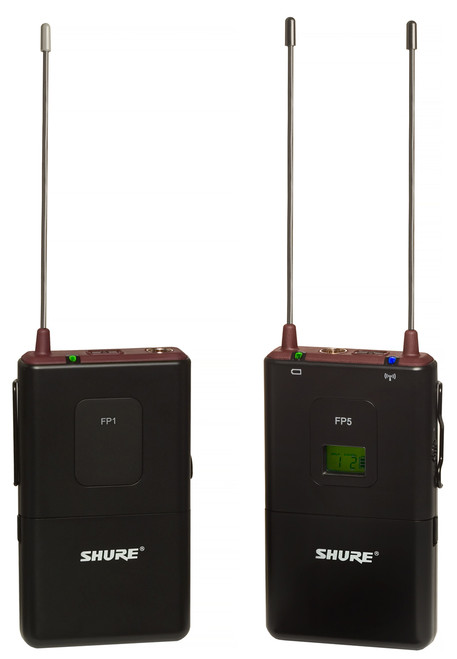

The FP15/83 Lavalier Wireless System is part of the FP wireless systems family.

When portability is required, FP Wireless and its intuitive, flexible components are the ideal solution. FP Wireless features proven wireless technology, including Shure patented Audio Reference Companding, for professional sound capture in demanding videography and electronic field production (EFP) environments.

Features

Features

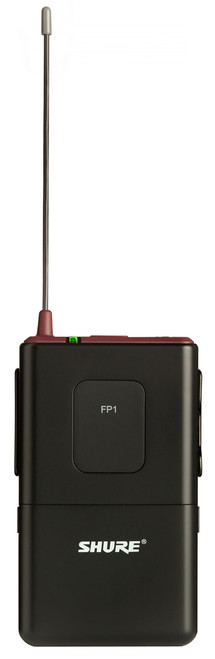

FP1 Bodypack Transmitter:

Automatic transmitter setup that instantly syncs the transmitter to the receiver frequency
LED indicator for control lockout, IR RF sync, and low battery
Audio input gain for adjustment of audio level
4-Pin microphone input jack for use with lavaliers or headset microphones with TA4F connectors

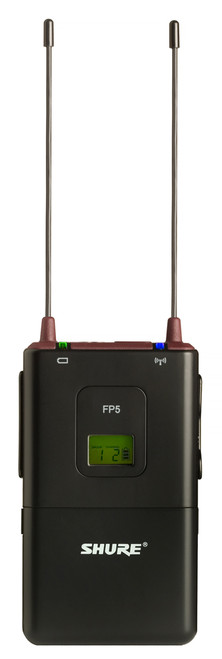

FP5 Portable Receiver:

Power LED with low battery indicator
RF LED that indicates transmitter sync when illuminated
Receiver output level control that manages output to camera/mixer
Diversity antennas for consistent reception of signal transmission
TA3F cable output to either XLR or 1/8" connectors included
Camera shoe mount included
Rugged and lightweight Shure construction

WL183 Lavalier Condenser Microphone:

CommShield Technology
Guards against interference from cellular RF devices
Digital bodypack transmitters

Specification

FP5 Portable Receiver
Audio Output Type	TA3F
Configuration	Impedance Balanced
Pin Assignments	1=Ground, 2=Hot, 3=Cold
Maximum Audio Output Level Ref. ±38 kHz Deviation with 1 kHz Tone	-5 dBV (into 600 Ω Load)
Impedance	200 Ω
Housing	Molded polycarbonate Case
Sensitivity	-108 dBm for 12 dB SINAD, Typical
Power Requirements	2 AA Batteries, 1.5V
Battery Life	Up to 12 Hours (Alkaline)
Dimensions (H x W x D)	4.25" (108 mm) x 2.52" (64 mm) x 0.75" (19 mm)
Weight	0.178 lbs (0.081 kg)
FP1 Bodypack Transmitter
Gain Adjustment Range	-10 to +20 dBV
Input Impedance	1 MΩ
RF Output Power	10 to 30 mW (Varies By Region)
Pin Assignments (TA4M)	1: Ground (Cable Shield) 2: + 5 V Bias 3: Audio 4: Tied Through Active Load to Ground On Instrument Adapter Cable, Pin 4 Floats)
Housing	Molded Polycarbonate Case
Power Requirements	2 AA Batteries, 1.5 V
Battery Life	Up to 12 Hours (Alkaline)
Dimensions (H x W x D)	4.25" (108 mm) x 2.52" (64 mm) x 0.75" (19 mm)
Weight	0.178 lbs (0.081 kg) without Batteries
WL183 Lavalier Condenser Microphone
Type	Condenser (Electret Bias)
Frequency Response	50 to 17,000 Hz
Polar Patterns (At 1 kHz)	Omnidirectional
Output Impedance	1800 Ω
Sensitivity (1 Pa = 94 dB SPL)	-40.0 dBV/Pa
Maximum Sound Pressure Level	125.0 dB SPL
Output Noise (A-Weighted)	22.5 dB SPL
Dynamic Range	102.5 dB
Polarity	Positive Pressure on Diaphragm Produces Positive Voltage on Pins 3 and 4 Relative to Pin 1
Power Requirements	Regulated Nominal +5 Vdc (1.5 Vdc to 10 Vdc) Provided at Microphone Connector Pin 2 Relative to Pin 1 of a Shure Wireless Microphone Transmitter
