Shure GLXD14/BETA98H Instrument Wireless System (Discontinued)

Part # GLXD14/B98-Z2
Model # GLXD14/BETA98H

The Shure GLXD14/BETA98H Instrument Wireless System features intelligent technology and convenient rechargeable power options for musicians who run their own sound. It includes the GLXD4 Wireless Receiver and features the BETA 98H/C Clip-on Microphone.

Description

Details

The revolutionary Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management (2.4 GHz frequency band) technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.

The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ Automatic Frequency Management and battery rechargeability. An integrated battery charge port can charge a spare Shure lithium-ion battery while the system is in use. Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

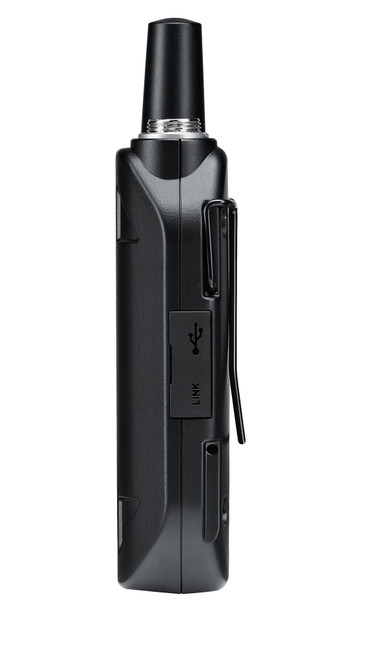

GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. It offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries. (Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.)

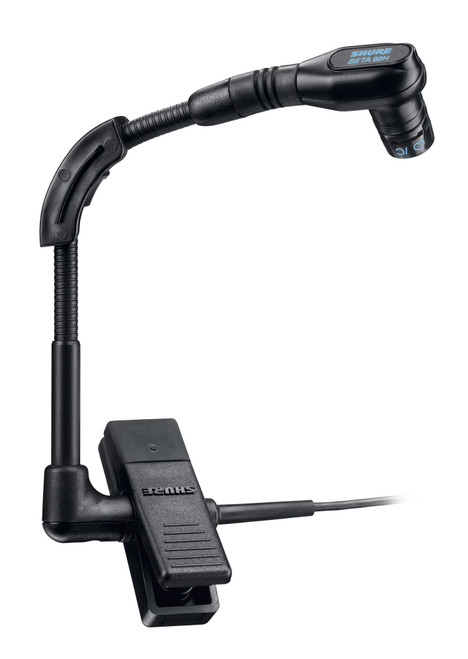

The Shure BETA 98H/C is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured, and an isolation shock-mount reduces the transmission of instrument “key noise” and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.
Features

Features

  • Shure GLXD14/BETA98H Instrument Wireless System Features:
  • Globally unlicensed 2.4 GHz frequency band allows operation of up to 8 compatible systems
  • Up to 200 ft (60 m) operating range (line of sight) Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring an integrated microphone capsule design

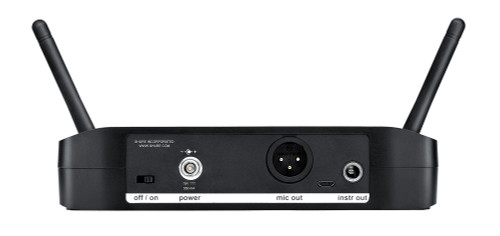

  • GLXD4 Wireless Receiver Features:
  • High-resolution LCD screen status display
  • Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
  • Remote adjustable transmitter gain control
  • Two-color charge indicator LED
  • XLR and 1/4" output connectors
  • Lightweight, durable construction

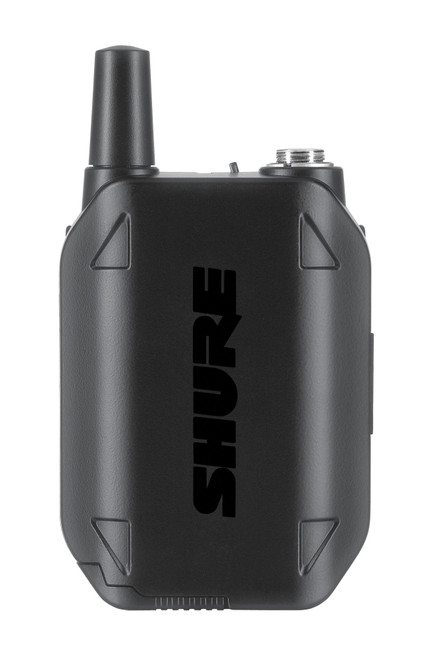

  • GLXD1 Bodypack Transmitter Features:
  • Automatically links with GLX-D wireless receivers for seamless frequency changing
  • Sophisticated design with rugged metal construction
  • Easily accessible on / off switch
  • Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables
  • Shure BETA 98H/C Instrument Microphone Features:
  • The Beta 98H/C features a 10 ft (3 m) high-flex cable with attached preamplifier (XLR connection)
  • Tailored frequency response for open, natural sound reproduction
  • Compact, lightweight construction provides a low degree of visibility
  • Interchangeable microphone cartridges are available
  • Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
  • Legendary Shure ruggedness and reliability
Specification
GLXD4 Wireless Receiver
Operating Range200 ft (60 m) line of sight
Frequency BandISM 2400 – 2483.5 MHz
Audio Range20 – 20,000 Hz
Transmitter RF Output Power10 mW E.I.R.P. maximum
Audio Output ConnectorXLR and 1/4" (6.3 mm) unbalanced
Maximum Output LevelO dBV (XLR/line), +8.5 dBV (1/4")
Battery LifeUp to 16 hours
Dynamic Range120 dB A-weighted
System Distortion0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range-18°C (0°F) to +57°C (135°F)
Power Requirements14–18 V DC at 550 mA, supplied by external power supply
GLXD1 Bodypack Transmitter
Operating Range200 ft (60 m) line of sight
Frequency BandISM 2400 – 2483.5 MHz
Audio Range20 – 20,000 Hz
Transmitter RF Output Power10 mW E.I.R.P. maximum
Audio Output ConnectorXLR and 1/4" (6.3 mm) unbalanced
Maximum Output LevelO dBV (XLR/line), +8.5 dBV (1/4")
Battery LifeUp to 16 hours
Dynamic Range120 dB A-weighted
System Distortion0.2% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range-18°C (0°F) to +57°C (135°F)
Power Requirements3.7 V custom rechargeable lithium-ion battery
Beta 98H/C Instrument Microphone
TypeCondenser (electret bias)
Polar PatternUnidirectional (cardioid)
Frequency Response20 to 20,000 Hz
Output ImpedanceRated at 150.0 ohms (actual) Recommended minimum load impedance: 1 kilohm
Output Level (0 dB = 1 volt per Pascal)Open Circuit Voltage: -56 dB (1.6 mV)
Output Clipping Level (at 1kHz, THD < 1%)2.5 kilohm load: 11 dBV (3.5 V) 1.0 kilohm load: 3 dBV (1.4 V)
Maximum SPL2.5 kilohm load: 163 dB 1.0 kilohm load: 155 dB
Dynamic Range (maximum SPL to A-weighted noise level)132 dB (2.5 kilohm load)
Signal-to-noise ratio63 dB at 94 dB SPL (IEC 651)
Recommended Operating Voltage11 to 52 Vdc Phantom
Environmental Conditions
Operating temperatures-7 degrees C to 49 degrees C (20 degrees F to 120 degrees F)
Storage temperatures29 degrees C to +74 degrees C (-20 degrees F to 165 degrees F)
Relative Humidity0 to 95%
Dimensions (H x W x D)
Receiver1.6" (40 mm) x 7.2" (183 mm) x 4.6" (117 mm)
Transmitter (Without Antenna)3.56" (90 mm) x 2.54" (65 mm) x 0.90" (23 mm)
Weight
Receiver (Without Batteries)10.1 oz (286 g)
System Includes

System Includes

  • (1) GLXD1 Bodypack Transmitter
  • (1) GLXD4 Wireless Receiver
  • (1) BETA 98H/C Instrument Microphone
