Shure PGXD24/PG58 Digital Wireless Microphone System (Discontinued)

Shure PGXD24/PG58 Digital Wireless Microphone System (Discontinued)

Name: Shure PGXD24/PG58 Digital Wireless Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-PGXD24/PG58
Price: 379 USD
Availability: OutOfStock

Write a Review

Part #:

PGXD24/PG58-X8

Model #:

PGXD24/PG58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The PGXD24/PG58 is Digital Handheld Wireless Microphone System. Includes PGXD4 Wireless Receiver and PG58 Handheld Microphones.

Description

The PGXD24/PG58 is Digital Handheld Wireless Microphone System. Includes PGXD4 Wireless Receiver and PG58 Handheld Microphones.

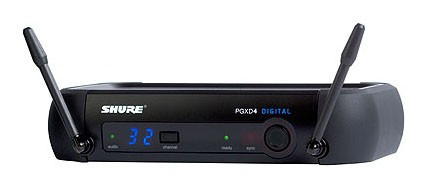

The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

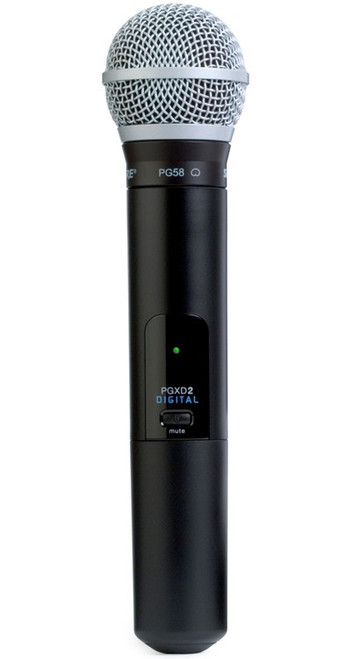

A rugged microphone tuned to accentuate the clarity of lead and back-up vocals.

Features

PGXD4 Features:

24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity for rock-solid wireless signal reliability
Up to 5 compatible channels per frequency band
1/4" and XLR audio outputs
Included padded carrying case for portability and protection

PG58 features:

Tailored frequency response is smooth and extended. Tuned specifically for vocal applications
Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings
Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion
Cartridge includes a neodymium magnet for high output level
Internal shock mount for reduced handling noise
Durable metal construction
On/off switch for onstage control
Hardened steel mesh ball grille that resists wear and abuse
Integral "pop" filter reduces explosive breath sounds and wind noise
Includes 15ft (4.57m) cable, break-resistant mic clip and storage bag

Specifications

Audio Output Level (ref. ± 38 kHz deviation, 1 kHz tone)	XLR connector (into 3000 Ω load): -2.5 dBV, 1/4 inch connector (into 10000 Ω load): +10 dB
Impedance	XLR: 50 Ω, 1/4 inch: 50 Ω
Sensitivity	-102 dBm @ 10-5 BER
Image Rejection	> 70 dB, typical
Housing	ABS
XLR Output	Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No Audio
Audio LED	Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
Power Requirements	12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments	XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio,Sleeve=ground
Dimensions (W x H x D)	7.125 in x 1.6 in x 4.1 in (181 mm x 40 mm x 104 mm)
Microphone Type	Dynamic (moving coil)
Frequency Response	60 to 15,000 Hz
Polar Pattern	Cardioid
Output Impedance	EIA rated at 150 ohms (300 ohms actual)
Sensitivity at 1 kHz, open circuit voltage	2.2 mV1 Pascal=94 dB SPL
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio (XLR), male
Operating Temperature	-29 deg to 57 deg C (-20 deg to 135 deg F)
Relative Humidity	0 to 95%
Net Weight	321 g (0.71 lb)
