Shure PGXD4 Digital Wireless Series Receiver (Discontinued)
By Shure

Shure PGXD4 Digital Wireless Series Receiver (Discontinued)

Write a Review
Part #:
PGXD4=-X8
Model #:
PGXD4
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The PGXD4 is Digital Wireless Series Receiver. The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired.

Description

The PGXD4 is Digital Wireless Series Receiver. The Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.

Features
  • 24-bit / 48kHz digital technology for incredibly accurate sound.
  • Automatic frequency selection locates a clear channel instantly.
  • One-touch sync automatically syncs the transmitter and receiver.
  • True digital diversity for rock-solid wireless signal reliability.
  • Up to 5 compatible channels per frequency band.
  • 1/4" and XLR audio outputs.
  • Included padded carrying case for portability and protection.

Specifications
Audio Output Level XLR connector (into 3000 Ω load): -2.5 dBV, 1/4 inch connector (into 10000 Ω load): +10 dB
Impedance XLR: 50 Ω, 1/4 inch: 50 Ω
Sensitivity -102 dBm @ 10-5 BER
Image Rejection > 70 dB, typical
Housing ABS
XLR Output Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio Pin 3: No Audio
Audio LED Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
Power Requirements 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments XLR: 1=ground, 2=hot, 3=cold 6.35 mm (1/4") TRS: Tip=audio, Ring=no audio,Sleeve=ground
Dimensions (W x H x D) 7.125 in x 1.6 in x 4.1 in (181 mm x 40 mm x 104 mm)
Weight 289 g (10.2 oz.)

Related Products

Sold Out

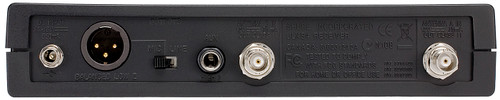

Shure ULXS4 Wireless Receiver (Discontinued) Shure ULXS4 Wireless Receiver (Discontinued)
