Shure SLX124/85/SM58 Combo Wireless Microphone System (Discontinued)

By Shure

Shure SLX124/85/SM58 Combo Wireless Microphone System (Discontinued)

Name: Shure SLX124/85/SM58 Combo Wireless Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-SLX124/85/SM58
Price: 889 USD
Availability: OutOfStock

Write a Review

Part #:

SLX124/85/SM58

Model #:

SLX124/85/SM58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure SLX124/85/SM58 wireless handheld/lavalier combo system comes complete with innovative setup that features auto frequency scanning with transmitter setup, exceptional wireless clarity, and legendary Shure microphones.

Description

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX Wireless Systems exceed these demands with innovative setup features such as auto frequency scan with transmitter setup, exceptional wireless clarity, and legendary Shure microphones.

SLX Wireless Systems feature the Shure patented Audio Reference Companding for clear sound beyond the limits of conventional wireless technology. The WL185 Lavalier electret condenser mics designed for use with a wireless body-pack transmitter. Each mic has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. The reliable SLX1 wireless bodypack transmitter is designed to hold up to the most adverse conditions. SLX1 can be used in a variety of SLX Wireless systems, including Lavalier, Headworn, Guitar/Bass, Instrument, and Combo.

The SLX Wireless Systems feature a wide variety of industry-standard handheld vocal microphones. SLX Wireless Handheld Transmitters includes timed backlit LCD display, frequency and power lockout, and "Mute" functionality.The transmitter design allows for interchangeable microphone cartridges. Options include the BETA 87A, BETA 87C, BETA 58A, SM86, and the legendary SM58. For use with SLX Wireless systems.

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. Model SLX4L is available with logic output for use with software echo cancellation and remote battery life monitoring. Logic-enabled transmitters include MX690 and MX890.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Features

SLX4 Diversity Receiver:

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24 MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
RF presence LED
5-segment audio meter
Multi-function, backlit LCD
Low battery indicator
Frequency and power lockout
Rugged metal chassis
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs
Optional logic functionality for software echo cancellation and remote battery life monitoring

WL185 Lavalier Condenser Microphone:

Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise
Use of windscreen highly recommended
Pickup angle: 130 degrees

SM58 Vocal Microphone:

Frequency response tailored for vocals, with brightened midrange and bass rolloff
Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
Pneumatic shock-mount system cuts down handling noise
Effective, built-in spherical wind and pop filter
Supplied with break-resistant stand adapter which rotates 180 degrees
Legendary Shure quality, ruggedness and reliability
Cardioid (unidirectional) dynamic
Frequency response: 50 to 15,000 Hz
Replacement cartridge: R59

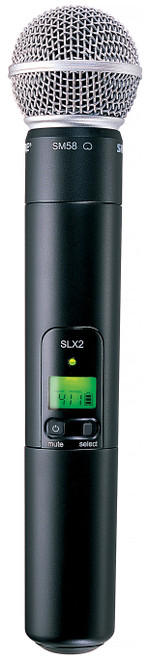

SLX2 Handheld Transmitter:

Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
470 - 782 MHz operating range
Interchangeable cartridges: Beta 87A, Beta87C, Beta 58A, SM86, and the legendary SM58

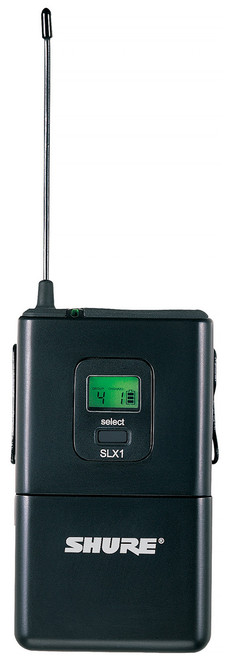

SLX1 Bodypack Transmitter:

Automatic Transmitter Setup
Backlit LCD with timeout feature
Frequency and power lockout
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours continuous use
470 - 782 MHz operating range

Specifications

System
Operating Range Under Typical Conditions	300 ft (100m)
Audio Frequency Response (+/– 2 dB)	Minimum: 45 Hz Maximum: 15 kHz (Overall system frequency depends on microphone element.)
Total Harmonic Distortion	0.5%, typical
Dynamic Range	>100 dB A-weighted
Operating Temperature Range	–18°C (0°F) to +57°C (+135°F)

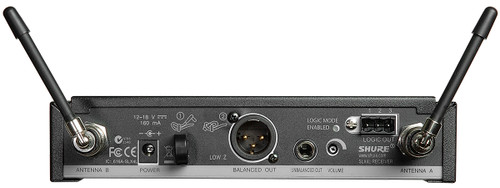

SLX4 Receiver
Housing	Galvanized steel
Audio Output Level	XLR connector (into 600 Ω load): –13 dBV 1/4 inch connector (into 3000 Ω load): –2 dBV
Output Impedance	XLR connector: 200 Ω 1/4 inch connector: 1kΩ
XLR output	Impedance balanced Pin 1: Ground Pin 2: Audio Pin 3: No signal
Sensitivity	–105 dBm for 12 dB SINAD, typical
Image Rejection	>70 dB, typical
Power Requirements	12–18 Vdc at 150 mA, supplied by external power supply
Dimensions (H x W x D)	1.65" (42 mm) x 7.76" (197 mm) x 5.28" (134 mm)
Weight	1.79 lbs (0.81 kg)

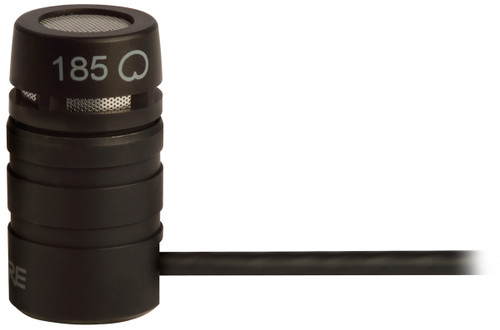

WL185 Lavalier Condenser Microphone
Type	Condenser (Electret Bias)
Frequency Response	50 to 20,000 Hz
Output Impedance	3000 Ω
Sensitivity(1 Pa = 94 dB SPL)	-38 dBV/Pa
Maximum Sound Pressure Level	120 dB SPL
Output Noise (A-weighted)	28.0 dB SPL
Dynamic Range	102 dB
Polarity	Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
Output Noise (A-weighted)	18 dB SPL
SM58 Vocal Microphone
Type	Dynamic (moving coil)
Frequency Response	50 to 15,000 Hz
Polar Pattern	Cardioid
Sensitivity	-54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL
Impedance	EIA rated at 150Ω (300Ω actual)
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector	Three-pin professional audio connector (male XLR type)
Case	Dark gray, enamel-painted, die cast metal; matte-finished, silver, spherical steel mesh grille
Weight	0.656 lbs (0.298 kg)
SLX2 Handheld Transmitter
Audio Input Level	+2 dBV maximum at -10dB position, -8 dBV maximum at 0dB position
Gain Adjustment Range	10dB
RF Transmitter Output	30 mW maximum (dependent on applicable country regulations)
Housing	Molded PC/ABS handle and battery cup
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Battery Life	>8 hours (alkaline)
Dimensions (Dia x L)(Including SM58 Cartridge)	2" (51 mm) x 10" (254 mm)
Weight	0.64 lbs (290 g) (without Batteries)
SLX1 Bodypack Transmitter
Audio Input Level	-10dBV max at mic gain position,+10 dBV max at 0 dB gain position,+20 dBV max at -10dB gain position
Gain Adjustment Range	30dB
Input Impedance	1 MΩ
Housing	Molded ABS case
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Battery Life	>8 hours (alkaline)
Dimensions	4.25" (108 mm) x 2.50" (64 mm) x 0.75" (19 mm)
Weight (without Batteries)	0.19 lbs (0.086 kg)
