The Shure SLX24/BETA58 is a wireless handheld system which includes SLX2/Beta58 Handheld Transmitter and SLX4 Diversity Receiver.

Description

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX Wireless Systems exceed these demands with innovative setup features such as auto frequency scan with transmitter setup, exceptional wireless clarity, and legendary Shure microphones.

SLX Wireless Systems feature the Shure patented Audio Reference Companding for clear sound beyond the limits of conventional wireless technology.

The SLX Wireless Systems feature a wide variety of industry-standard handheld vocal microphones.  SLX Wireless Handheld Transmitters includes timed backlit LCD display, frequency and power lockout, and "Mute" functionality.The transmitter design allows for interchangeable microphone cartridges.  Options include the BETA 87A, BETA 87C, BETA 58A, SM86, and the legendary SM58. For use with SLX Wireless systems.

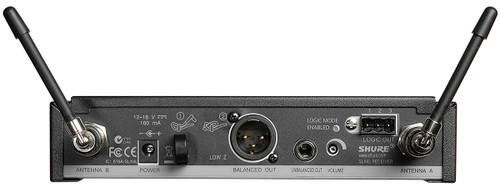

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. For use with SLX Wireless. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. Model SLX4L is available with logic output for use with software echo cancellation and remote battery life monitoring. Logic-enabled transmitters include MX690 and MX890.

The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.

The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille.

Features

SLX4 Diversity Receiver:

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs
  • Optional logic functionality for software echo cancellation and remote battery life monitoring

BETA 58A Vocal Microphone:

  • Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect
  • Uniform supercardioid pattern for high gain before feedback and superior rejection of off–axis sound
  • Neodymium magnet for high signal–to–noise output
  • Hardened steel mesh grille that resists wear and abuse
  • Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
  • Minimally effected by varying load impedance
  • Legendary Shure quality and reliability

SLX2 Handheld Transmitter:

  • Automatic Transmitter Setup
  • Backlit LCD with timeout feature
  • Frequency and power lockout
  • 3-segment battery fuel gauge
  • 2 AA batteries (included) provide 8 hours of continuous use
  • Interchangeable cartridges: Beta 87A, Beta87C, Beta 58A, SM86, and the legendary SM58

Specifications

SLX4 Receiver
Audio Output Level XLR connector (into 600 Ω load): –13 dBV; 1/4" connector (into 3000 Ω load): –2 dBV
Output Impedance XLR connector: 200 Ω; 1/4" connector: 1kΩ
XLR output Pin 1: Ground, Pin 2: (+), Pin 3: (-)
Sensitivity –105 dBm for 12 dB SINAD, typical
Image Rejection >70 dB, typical
Power Requirements 12–18 Vdc at 150 mA, supplied by external power supply
Dimensions (H x W x D) 7.76" (197.10mm) x 1.65" (41.91mm) x 5.28" (134.11mm)
Weight 1.80 lbs (816 g)
BETA 58A Vocal Microphone
Type Dynamic (moving coil)
Frequency Response 50 to 16,000 Hz
Output Level (at 1,000 Hz) Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV)
Impedance Rated impedance is 150 Ω (290 Ω actual) for connection to microphoneinputs rated low Z
Phasing Positive pressure on diaphragm produces positive voltage onpin 2 with respect to pin 3
Case Silver blue enamel-painted die cast metal with hardened, mattefinished,spherical steel mesh grille
Adjustable, Stand Adapter Slip-in mounting, unbreakable, adjustable through180° with standard 5/8"-27 thread, black finish
Weight 0.61 lbs (0.28kg)
SLX2 Handheld Transmitter
Audio Input Level +2 dBV maximum at -10dB position, -8 dBV maximum at 0dB position
Gain Adjustment Range 10dB
RF Transmitter Output 30 mW maximum (dependent on applicable country regulations)
Housing Molded PC/ABS handle and battery cup
Power Requirements 2 “AA” size alkaline or rechargeable batteries
Battery Life >8 hours (alkaline)
Dimensions (Dia x L) 10" (254 mm) x 2" (51 mm)
Weight (without Batteries) 0.64 lbs (0.29kg)

DOCUMENTS

System Includes

  • (1) SLX4 Diversity Receiver
  • (1) BETA 58A Vocal Microphone
  • (1) SLX2 Handheld Transmitter
