Shure ULXS24/BETA58 Handheld Wireless Microphone System (Discontinued)

By Shure

Shure ULXS24/BETA58 Handheld Wireless Microphone System (Discontinued)

Name: Shure ULXS24/BETA58 Handheld Wireless Microphone System (Discontinued)
Brand: Shure
SKU: SHURE-ULXS24/BETA58-G3
Price: 739 USD
Availability: OutOfStock

Write a Review

Part #:

ULXS24/BETA58-G3

Model #:

ULXS24/BETA58

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure ULXS24/BETA58 is a handheld wireless system which includes BETA58A Vocal Microphone and ULXS4 Diversity Receiver.

Description

The ULX Standard UHF wireless (ULX-S) represents a breakthrough in performance and price for both working musicians and professional sound installers.

For more advanced features and controls, see our ULX Professional wireless systems.

The Shure ULX Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4 receiver offers a direct path to full, clear audio signals, unencumbered and unattached. For use with ULX Standard Wireless systems.

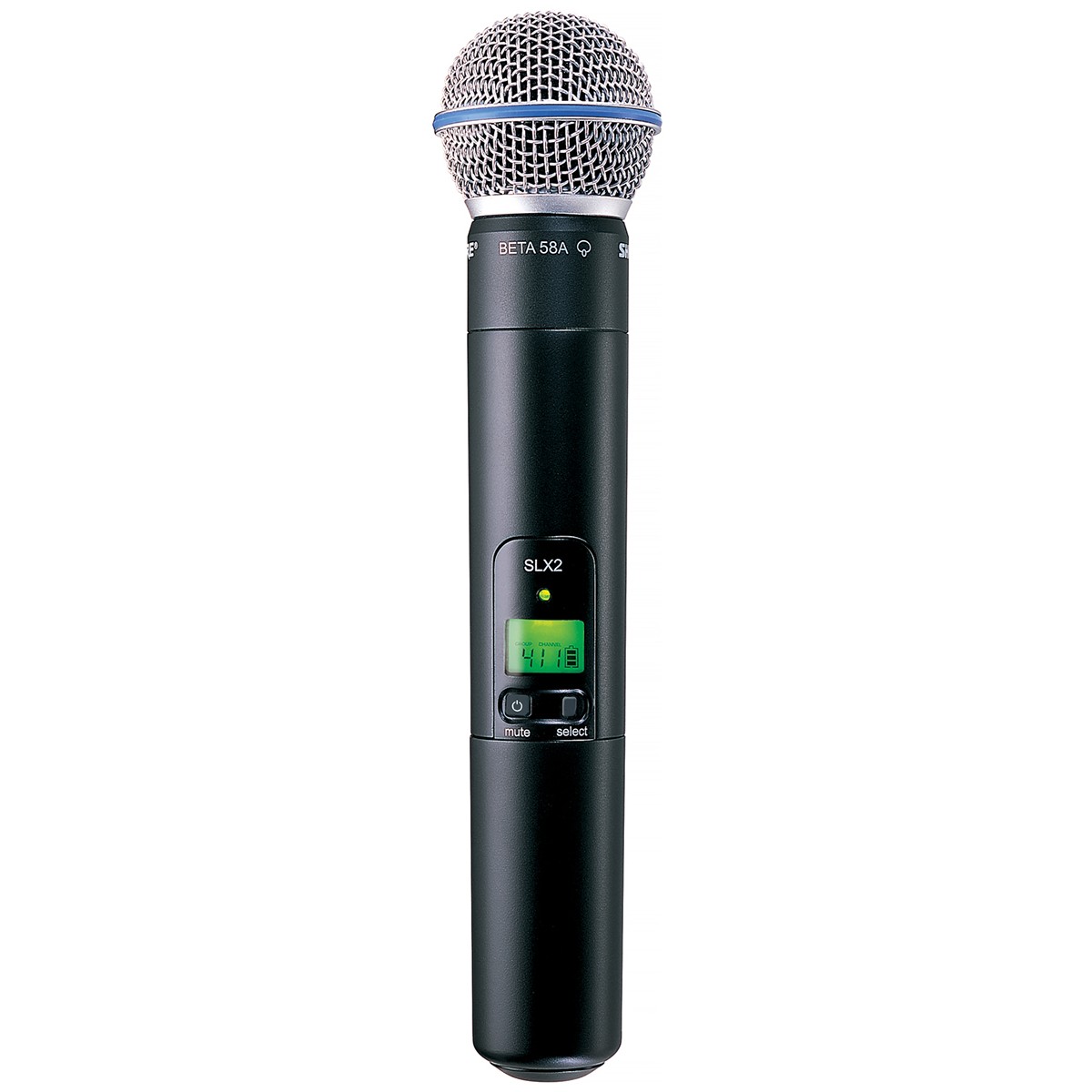

The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It has become a leading choice among vocalists and touring professionals worldwide.

The Beta 58A maintains a true supercardioid pattern throughout its frequency range. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille.

Features

ULXS4 Standard Diversity Receiver:

Automatic Frequency Selection with group scan function
Up to 1440 selectable frequencies
5-segment transmitted audio signal strength meter
RF indicator
3-segment transmitter battery fuel gauge
Advanced multi-function LCD displays group and channel
Mic/Line switch
Detachable 1/4-wave antenna
XLR and 1/4-inch output
Rugged plastic chassis
1/2 rack design

BETA 58A Vocal Microphone:

Frequency response tailored for vocals, with brightened midrange and bass rolloff to control proximity effect
Uniform supercardioid pattern for high gain before feedback and superior rejection of off–axis sound
Neodymium magnet for high signal–to–noise output
Hardened steel mesh grille that resists wear and abuse
Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
Minimally effected by varying load impedance
Legendary Shure quality and reliability

Specifications

Connector	Antenna Power Input
Connector Type	Antenna: BNC Power Input: IEC 320
Actual Impedance	Antenna: 50 Ω
Nominal Input Level	Antenna: –95 to –30 dBm Power Input: 15 Vdc
Maximum Input Level	Antenna: +6 dBm (–20 dBm recommended) Power Input: 18 Vdc
Pin Assignments	Antenna: Shell = Ground Center = Signal Power Input: IEC Standard
Voltage for Remote Power	12 Vdc, 150 mA maximum
Connector	High Z Audio Low Z Audio
Output Configuration	High Z Audio: Unbalanced (1/4 in.) Low Z Audio: Balanced (XLR)
Actual Impedance	High Z Audio: 3 kΩ Low Z Audio: 22 Ω
Pin Assignments	High Z Audio: Tip = Hot Ring/ Sleeve = Gnd Low Z Audio: 1 = Ground 2 = Hot 3 = Cold
Transmitter Gain Adjustment Range	25 dB
Receiver Audio Output Level	XLR connector (into 600 ohm load): , –17 dBV (mic) 1/4 inch connector (into 3000 ohm load): –2 dBV
Impedance	1 Megohm ULXS4, ULXP4 (output): 50 ohms at line level; 2000 ohms at mic level
Modulation	±38 kHz deviation compressor-expander system with pre- and de-emphasis
RF Power Output	30 mW maximum
Dynamic Range	>100 dB, A-weighted
RF Sensitivity	1.26 μV for 12 dB SINAD (typical)
Image Rejection	80 dB typical
Spurious Rejection	75 dB typical
Ultimate Quieting	>105 dB, A-weighted
System Distortion	0.3% total harmonic distortion, typical
Power Requirements	8.4 V Nicad optional ULXS4: 14 - 18 Vdc (negative ground), 550 mA
Battery Life	8 to 9 hours (with 9V alkaline battery)
Operating Temperature Range	- 20° to 49° C (- 4° to 120° F)
Dimensions	ULX4S: (1.72 in x 8.56 in x 6.52 in) (43 mm H x 214 mm W x 163 mm D)
Net Weight	2.31 lbs (1049 g) (5 oz)
Input Configuration	Unbalanced, active
Actual Impedance	20 kΩ
Actual Impedance	50 Ω
Nominal Output Level	20 mW
Maximum Output Level	30 mW
Pin Assignments	Shell = Ground Center = Signal
Transmitter Gain Adjustment Range	ULX2: 25 dB
Receiver Audio Output Level	XLR connector(600 ohm load) +3.9 dBV (line),–17 dBV (mic) 1/4"connector (into 3000 ohm load): –2 dB
Modulation	±38 kHz deviation compressor-expander system with pre- and de-emphasis
RF Power Output	ULX2: 30 mW maximum
Dynamic Range	>100 dB, A-weighted
RF Sensitivity	1.26 μV for 12 dB SINAD (typical)
Image Rejection	80 dB typical
Spurious Rejection	75 dB typical
Ultimate Quieting	>105 dB, A-weighted
System Distortion	0.3% total harmonic distortion, typical
Power Requirements	ULX2: 9V alkaline battery; 8.4 V Nicad optional
Battery Life	8 to 9 hours (with 9V alkaline battery)
Operating Temperature Range	- 20° to 49° C (- 4° to 120° F)
Overall Dimensions	223.5 mm L x 51 mm Dia (8.8 x 2 in)
Net Weight	258 g (9.1 oz) without battery
Frequency Response	50 to 16,000 Hz
Type	Dynamic (moving coil)
Polar Pattern	Supercardioid
Output Level (at 1,000 Hz)	Open Circuit Voltage: -51.5 dBV/Pa (2.6 mV)
Impedance	Rated impedance is 150 Ω (290 Ω actual) for connection to microphoneinputs rated low Z
Phasing	Positive pressure on diaphragm produces positive voltage onpin 2 with respect to pin 3
Case	Silver blue enamel-painted die cast metal with hardened, mattefinished,spherical steel mesh grille
Adjustable, Stand Adapter	Slip-in microphone mounting, unbreakable, adjustable through180° with standard 5/8"-27 thread
Dimensions	50 mm (2 in) x 160 mm (6.5 in)
Net Weight	0.612 lbs (278 grams) (9.92 oz)
