- Description
Details

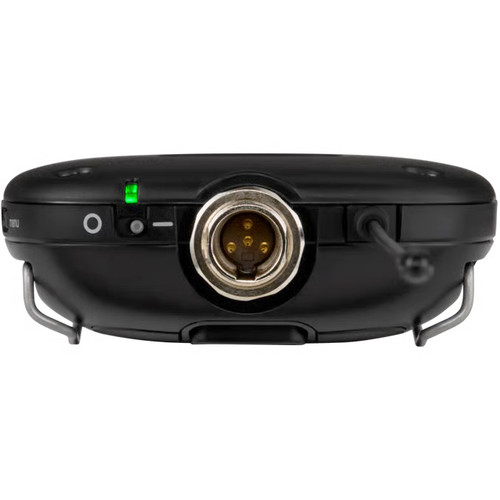

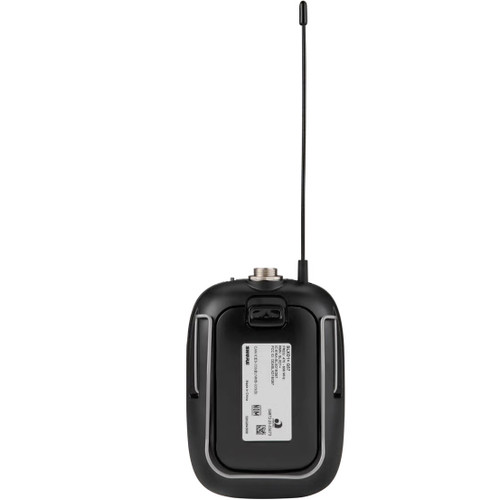

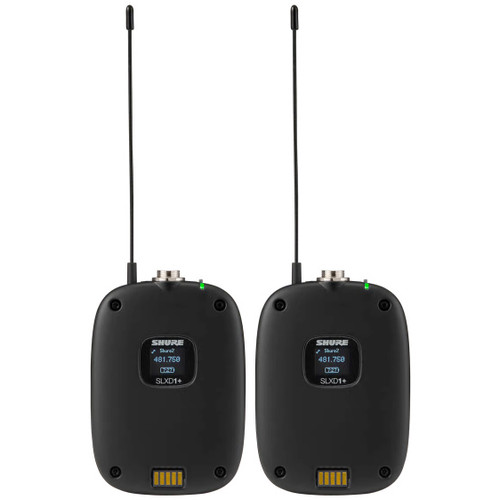

Shure SLXD14D+ 2-Channel Bodypack System
The SLXD14D+ dual wireless system pairs a 1/2-rack SLXD4D+ dual-channel receiver with two SLXD1+ bodypack transmitters to provide professional-grade wireless performance. Delivering 24-bit digital audio with over 118 dB dynamic range, this system ensures transparent, high-fidelity sound for live events, presentations, and broadcast applications. The dual-channel design allows simultaneous operation of two wireless channels, simplifying setup and management for pro engineers and seasoned volunteers alike.
Rock-solid RF performance across a 138 MHz tuning range supports up to 14 simultaneous systems in 8 MHz TV bands, while Automatic Setup maintains a stable connection even in challenging RF environments. ShowLink technology allows remote adjustment of transmitter parameters, including frequency changes, power output, locking/unlocking controls, and firmware updates. System monitoring and control are available through the Wireless Workbench desktop software or the WWB Mobile app via Wi-Fi or Bluetooth.
Each SLXD14D+ system includes AES-256 encryption for secure audio transmission and Shure's patented Digital Feedback Reducer to minimize unwanted feedback automatically. Powered by two AA batteries or optional Shure SB903 rechargeable Li-ion batteries, the system provides up to 8 hours of continuous operation, making it ideal for professional performances, corporate events, houses of worship, and any hands-free wireless application where reliability and clarity are essential.
- Features
Features
- Dual-channel SLXD4D+ 1/2-rack receiver with two SLXD1+ bodypack transmitter
- Transparent 24-bit digital audio with over 118 dB dynamic range
- Rock-solid RF with 138 MHz tuning range for flexible frequency coordination
- Supports up to 14 simultaneous systems in 8 MHz TV bands
- ShowLink remote control for frequency, power, lock/unlock, and firmware updates
- AES-256 encrypted wireless transmission for secure professional audio
- Up to 8 hours of runtime with AA or SB903 Li-ion rechargeable batteries
- Specification
SLXD4D+ Power Requirements 15 VDC @ 600 mA Connector Type BNC (Antenna), XLR & 1/4" (Audio Outputs) Impedance 50Ω (Antenna Input) Spurious Rejection >75 dB Gain Adjustment Range -18 to +42 dB in 1 dB steps Mic/Line Switch 30 dB pad Audio Outputs 2x XLR (Mic/Line), 2x 1/4" (Line) Network Interface Single Port Ethernet 10/100 Mbps Network Addressing Capability DHCP or Manual IP address Maximum Cable Length 100 m (328 ft) Dimensions (H x W x D) 1.65" (42 mm) x 7.76" (197 mm) x 6.06" (154 mm) Weight 2.1 lbs (0.95 kg) SLXD1+ Connector 4-pin male mini connector (TA4M) Impedance 1 MΩ Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp) Antenna Type 1/4 Wave Power 1 mW or 10 mW Battery Type Rechargeable Li-Ion or 1.5 V AA batteries Dimensions (H x W x D) 3.86" (98 mm) x 2.68" (68 mm) x 1" (25.5 mm) Weight 0.20 lbs (0.09 kg) - Documents
Documents
- In The Box
In The Box
- (1) SLXD4D+ Dual Channel Receiver
- (2) SLXD1+ Bodypack Transmitters
- (2) 1/4 Wave Antennas
- (1) Rackmount Kit
- (4) AA Batteries
- (1) Power Supply
- (2) Carrying Pouches
- Reviews
Write Your Own Review
System Components
-
-
Shure SLXD1+ Wireless Bodypack Transmitter
List $379.00Pro Acoustics Price $299.00Savings $80.00 (21%)
