Teleconference Room Sound System with Bose Professional EdgeMax EM180 Premium In-Ceiling Loudspeaker and FreeSpace IZA 190-HZ Zone Amplifier

Inside the Design

This Bose EdgeMax teleconferencing sound system is engineered to deliver exceptional speech intelligibility and full-room audio coverage for conference rooms, meeting spaces, and professional collaboration environments. Featuring one Bose EdgeMax EM180 premium in-ceiling loudspeaker, this system utilizes proprietary PhaseGuide technology to project clear, consistent audio throughout the room while maintaining a sleek architectural look. Paired with the Bose FreeSpace IZA 190 HZ integrated zone amplifier and the powerful Biamp TesiraFORTE VT digital audio server, this system provides advanced signal processing, echo cancellation, and seamless integration for teleconferencing or video conferencing applications. The Shure SLXD124/85M digital wireless combo system offers reliable RF performance with modern digital clarity, including an SM58 handheld microphone and WL185M lavalier microphone. The system also includes an AtlasIED AP S15LA power conditioner, a 7RU wall cabinet, rack hardware, and professional cabling to create a complete, ready-to-install teleconferencing solution.

Sound System Features:

• Premium Bose EdgeMax EM180 in-ceiling loudspeaker with wide 180 degree coverage
• Bose FreeSpace IZA 190 HZ integrated zone amplifier with versatile inputs and built-in DSP
• Biamp TesiraFORTE VT digital audio server with USB audio, VoIP, AEC, and advanced processing
• Shure SLXD124/85M digital wireless system with SM58 handheld and WL185M lavalier microphone
• AtlasIED AP S15LA power conditioner for clean, protected AC power
• 7RU basic wall cabinet with ventilation and locking door
• Includes rackmount kit, blank panel, XLR microphone cable, prep cable, and speaker wire

About the System Components

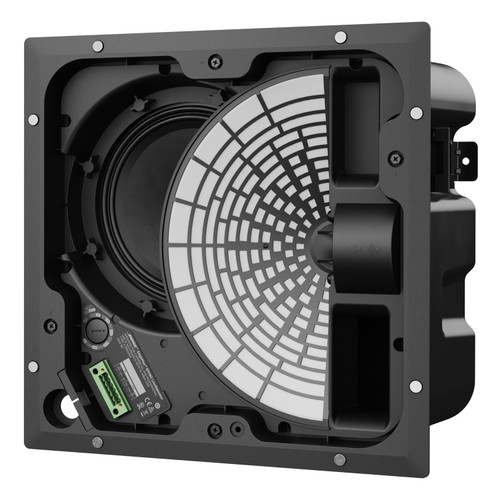

Bose EdgeMax EM180 Premium In Ceiling Loudspeaker

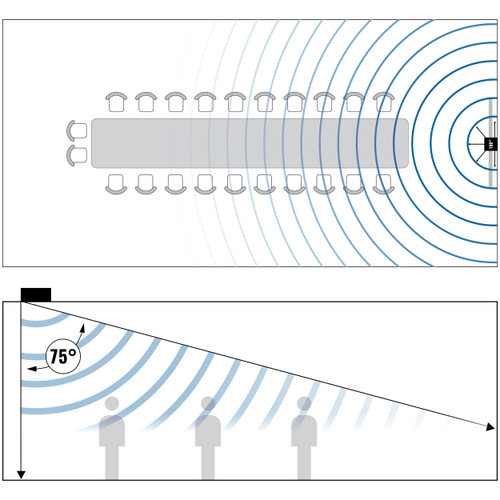

The Bose EdgeMax EM180 loudspeaker uses proprietary PhaseGuide technology to deliver room filling sound typically associated with larger surface mount speakers while maintaining a clean in ceiling architectural aesthetic. Designed to be mounted near wall and ceiling boundaries, EdgeMax loudspeakers improve coverage and reduce the number of required speaker locations. They include white magnetic grilles, auto hold mounting arms, plenum rated construction, and both 8 ohm and 70V or 100V tap settings. Ideal for conference rooms, offices, hospitality venues, and architectural sound installations.

Bose FreeSpace IZA 190 HZ Integrated Zone Amplifier

The Bose FreeSpace IZA 190 HZ integrated zone amplifier provides signal processing, routing, paging, and amplification for a variety of commercial environments. With mic, line, and page inputs, loudspeaker EQ presets, and intuitive controls, this amplifier optimizes system performance and simplifies daily operation. It is well suited for conference rooms, retail spaces, restaurants, and auxiliary zones.

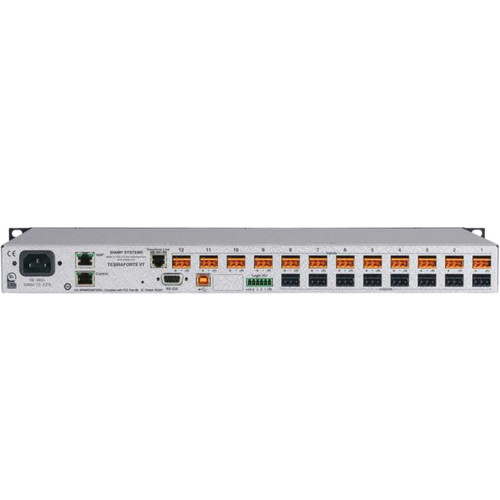

Biamp TesiraFORTE VT Digital Audio Server

The TesiraFORTÉ VT is a high performance digital audio server featuring 12 analog inputs with Acoustic Echo Cancellation and 8 analog outputs. It supports up to 8 channels of USB audio, a 2 channel VoIP interface, and an FXO telephone interface for flexible conferencing integration. Extensive processing tools include AEC, mixing, EQ, filtering, dynamics, delay, routing, and comprehensive monitoring and diagnostics. TesiraFORTÉ VT is ideal for teleconferencing and advanced communication environments requiring professional grade audio clarity.

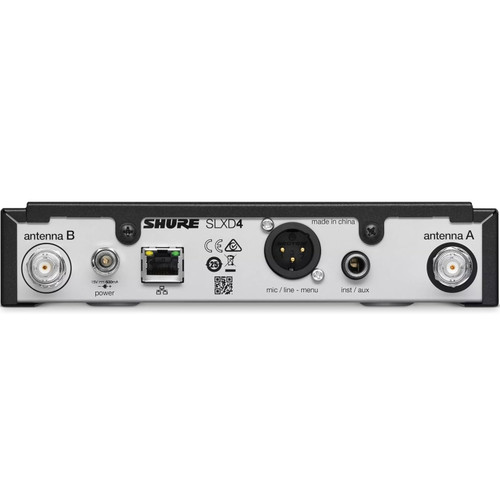

Shure SLXD124/85M Digital Wireless Combo System

The Shure SLXD124/85M wireless combo system provides rock solid digital transmission with clear, detailed audio ideal for professional presentations and conferencing. It includes an SM58 handheld transmitter and a WL185M lavalier microphone for versatile speaking options. SLX-D wireless technology delivers dependable performance for corporate spaces, schools, houses of worship, and meeting environments.

AtlasIED AP S15LA Power Conditioner

The AtlasIED AP S15LA provides clean, stable AC power with advanced filtering to reduce RFI and EMI noise. Its fast acting circuitry suppresses voltage spikes and unwanted energy to protect connected equipment. The unit includes a pullout front lamp and a removable 12 foot IEC power cord.

AtlasIED 607 15 7RU Stand Alone Basic Wall Cabinet

The AtlasIED 607 15 wall cabinet is a 7RU surface mount enclosure designed to house electronic equipment such as amplifiers, processors, and communication devices. Constructed of 16 gauge CRS steel with side ventilation, recessed mounting rails, and a locking front door, this cabinet provides secure and durable equipment storage.

System and Component Videos

Bose EdgeMax EM180 In Ceiling Loudspeaker

• PhaseGuide technology delivers wide 180 degree horizontal coverage from wall ceiling boundary locations
• Full range frequency response from 60 to 18,000 Hz for clear, natural speech and music
• High output performance with up to 119 dB continuous and 125 dB peak SPL
• Two way design with 1.3 inch compression driver and 8 inch woofer
• Selectable 8 ohm or 70V and 100V transformer tap settings for flexible installations

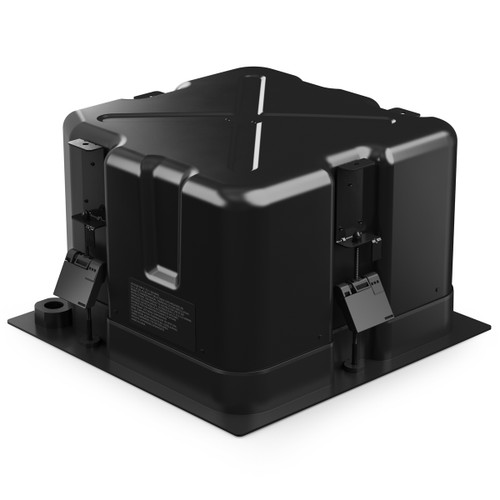

• Auto hold spring loaded mounting arms provide fast and secure installation

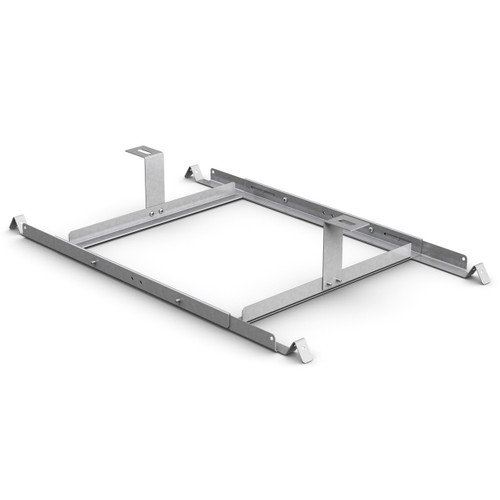

• Includes tile bridge for safe mounting in suspended ceilings
• UL1480 listed for air handling plenum installations
• Magnetic white grille included with optional black grilles and rough in accessories available



Bose FreeSpace IZA 190 HZ Integrated Zone Amplifier

• High quality Class D amplification with built in DSP for optimized audio performance
• Simplified setup using front and rear panel controls with no computer required
• Opti Voice paging provides smooth transitions between paging and background audio
• User friendly front panel allows easy connection of devices, tonal adjustments, and source selection
• Optional wall mount volume control with A B switch for remote user access
• Compact, lightweight design suitable for table, shelf, or rack installation using optional rack kit
• Auxiliary line output allows signal expansion to a secondary amplifier if needed



Biamp TesiraFORTE VT Digital Audio Server

• 12 mic or line level inputs and 8 mic or line level outputs
• 12 channels of Acoustic Echo Cancellation for conferencing clarity
• Up to 8 channels of configurable USB audio for seamless integration with computers
• VoIP interface via RJ 45 and FXO telephone interface via RJ 11
• Gigabit Ethernet port supports system configuration and control
• 2 line OLED display with capacitive touch navigation
• GPIO and RS 232 ports for system integration and control
• Extensive DSP with routing, mixing, EQ, filtering, dynamics, and delay
• Rack mountable 1RU design with internal universal power supply
• CE marked, UL listed, RoHS compliant, and backed by a 5 year Biamp warranty



Shure SLXD124/85M Digital Wireless Combo System

• Digital wireless technology delivers crystal clear audio with rock solid RF performance
• Includes SM58 handheld transmitter and WL185M lavalier microphone for flexible presentation options
• Automatic frequency selection and easy Sync function streamline setup
• Wide 20 Hz to 20 kHz frequency range provides natural, detailed sound
• Up to 32 compatible systems per 44 MHz band for scalable installations
• Rugged transmitters with long battery life support consistent daily use
• Ideal for corporate conference rooms, education, worship spaces, and meeting environments



AtlasIED AP S15LA Power Conditioner and Distribution Unit

• Front panel dimmable pull out lamp for equipment visibility
• 15A circuit breaker protection
• 9 total AC outlets including 7 switched rear outlets, 1 rear unswitched outlet, and 1 front convenience outlet
• RFI filtering reduces radio frequency noise in audio systems
• EMI filtering minimizes interference from motors and switching power supplies
• Fast acting spike suppression up to 6000V protects connected equipment
• LED indicators for power, surge protection, and ground status
• Includes removable IEC power cord with retainer bracket



AtlasIED 607 15 7RU Stand Alone Basic Wall Cabinet

• Durable 16 gauge CRS all welded construction with 11 gauge fixed tapped mounting rails
• Arrives fully assembled for fast installation
• Pre punched back panel allows simplified wall mounting
• Locking front door provides secure equipment access control
• Side vents promote natural airflow for thermal management
• Includes 10 32 pan head screws for mounting electronic components

• (1) Bose EdgeMax EM180 In-Ceiling Loudspeaker with 180 Degree Coverage
• (1) Bose FreeSpace IZA 190-HZ Integrated Zone Amplifier
• (1) Biamp TesiraFORTE VT Digital Audio Server
• (1) Shure SLXD124/85M Digital Wireless Combo System with SM58 Handheld and WL185M Lavalier Microphone
• (1) AtlasIED AP-S15LA 15LA Power Conditioner and Distribution Unit
• (1) AtlasIIED 607-15 7RU Stand Alone Basic Wall Cabinet
• (1) Bose FreeSpace IZA or ZA Rack Mount Kit
• (1) AtlasIED CB3 3RU Solid Economy Blank Panel
• (1) Pure Resonance Audio XLR-3 Microphone Cable - 3ft
• (1) Pure Resonance Audio XLRF-3-PREP Female XLR to Prep Patch Cable - 3ft
• (50') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
