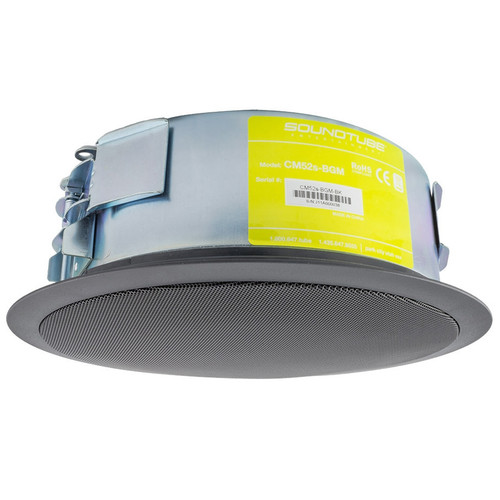

The CM52s-BGM is a 5.25" coaxial two-way blind-mount, short can, in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating a 5.25" polypropylene driver with a rubber surround and a 0.75" silk dome tweeter in a drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (65 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge “full-metal” steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional color coded (green) pre-construction bracket, as well as a six-position tap switch for 25, 70.7 and 100V applications with a transformer bypass position.

• Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5"

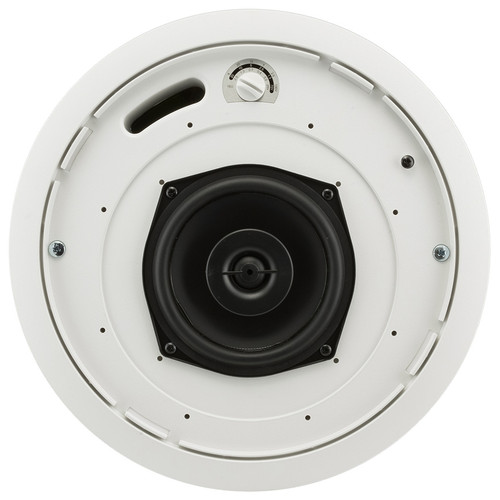

• One 5.25" (134 mm) polypropylene woofer with rubber surround and one 0.75" (19 mm) silk dome tweeter
• BeamRing™ technology for mid-range clarity and smooth off axis performance
• Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation
• Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB)
• Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance

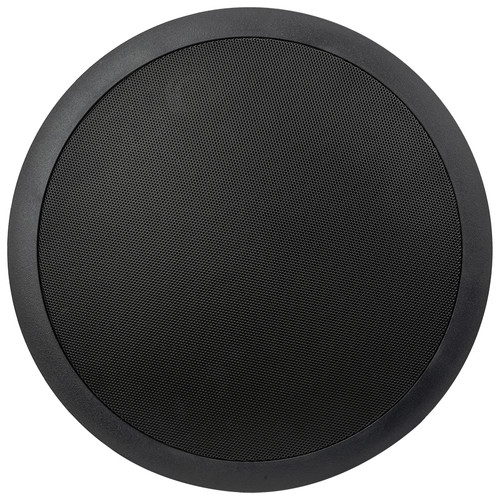

• Incorporates a painted steel grille for lasting durability
• Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
• UL 1480 and 2043 approval pending
• High-quality black or white painted finish. Custom colors available
• Included accessories: Color-coded (orange) tile bridge, UL listed 0.5" conduit clamp, paint shield
