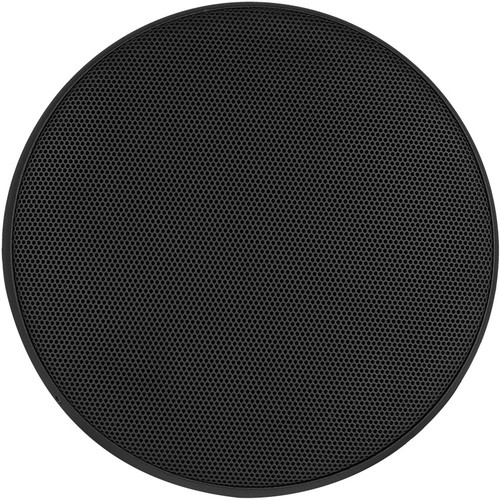

SoundTube RS82-EZ 8" Coaxial Open-Ceiling Pendant Speaker - Black

Part #:
RS82-EZ-BK
Model #:
RS82-EZ
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The SoundTube RS82-EZ 8 inch open ceiling speaker features a high power coaxial driver with BroadBeamHP compression driver technology for long throw and smooth directivity. It includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation.

Description

The SoundTube RS82-EZ 8 inch open ceiling speaker features a high power coaxial driver with BroadBeamHP compression driver technology for long throw and smooth directivity. It includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to conduit via locking cover plate. Enclosure constructed of injection molded ABS with glasber reinforcement for lasting durability in indoor or outdoor applications. 16 ohm impedance for easy daisy chaining in low voltage systems. Aluminum grille with protective powfinish. Built-in thermal fuse. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Unit ships in eco-friendly, recyclable packaging. UL 1480 UEAY, UL 2239 and EN54-24 listed. Included accessories: hanging hardware, terminal weather boot, cover plate, AC-RSEZ-HH-10, and AC-RSEZ-HH-10.

Features

  • One 203 mm (8.0 in.) coaxial driver with BroadBeam Ring for consistently smooth high frequency
  • Weatherized components for indoor and outdoor applications
  • Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation
  • Unit may be hung or mounted direct-to-conduit via locking cover plate
  • Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications
  • 16 ohm impedance for easy daisy chaining in low voltage systems
  • Aluminum grille with protective powder coated finish
  • Built-in thermal fuse
  • Unit ships in eco-friendly, recyclable packaging
  • UL 1480 UEAY planned, UL 2239 approved
  • High-quality black paint finish. Speaker is paintable
  • Included accessories: hanging hardware, terminal weather boot, cover plate

Specifications

System Type 8" Coax, open-ceiling, ported (64 Watt transformer for 25/70.7/100 Volt or voice coil direct)
Impedance (Nominal) 16 ohm
Sensitivity dB @ 2.83 V/1 m 89 dB
Sensitivity dB @ 1 W/1 m 92 dB
Frequency Response (-3 dB) 100 Hz - 22 kHz
Frequency Response (-10 dB) 80 Hz - 22 kHz
Max. Program Power 128W
Max. Continuous Power RMS 64W
Max. Power SPL @ 1 m 110 dB
Tap Selector 6 Position rotary switch with transformer bypass
Transducer - Low Frequency Driver 203 mm (8.0 in.) Polypropylene cone, butyl rubber surround
Transducer- High Frequency Driver 25 mm (1") silk dome tweeter with Beam Ring
Low Frequency Voice Coil 25.4 mm (1")
Crossover Frequency 2.5 kHz
Network Type: Low Pass 6dB per octave, 1st order
Network Type: High Pass 6dB per octave, 1st order
Enclosure Material Injection molded ABS, glass fiber reinforced
Grille Powder coated aluminum
Inputs 4 position ceramic terminal connector
Dimensions (Dia x H) 12.8" (325.9 mm) x 12.9" (3.27 mm)
Weight 11 lbs (5 kg)
Shipping Weight 13 lbs (5.9 kg)
