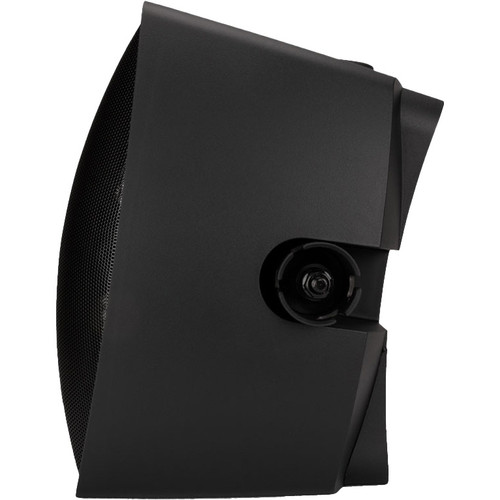

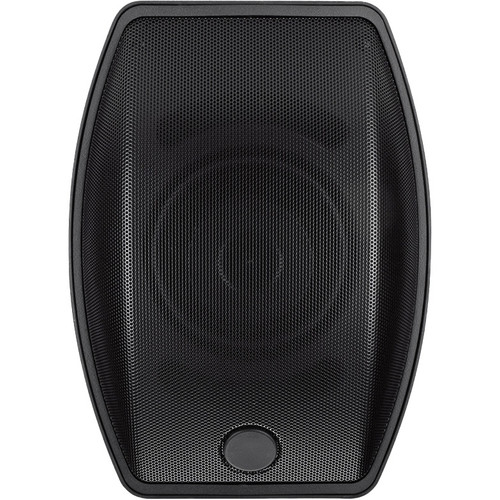

The SM400i is a 4" coaxial, ported speaker with a low-profile surface mount enclosure design for indoor/outdoor applications that delivers a consistent dispersion pattern (2 to 10 kHz, independently verified.) Mounting hardware is included and features a corrosion- and theft-resistant Stealth™ U-bracket for easy and secure installation. Nearly invisible from sightlines, the Stealth™ U-bracket includes one-way fasteners for tool-free, theft-resistant security. SoundTube®'s custom-engineered driver and electro-acoustic network deliver high-performance sound in a cost-effective surface-mount speaker design. The SM400i speaker incorporates a five-position tap switch with a transformer bypass position for simplified ordering and stocking. Corrosion and theft-resistant U-bracket mount with safety cable, Euroblock connector, paint mask, terminal weather boot, and port plugs are included. Included port plugs can be used for added weather resistance.
| Color | Black |
|---|---|
| Certifications | CCC, CE, RoHS, UL1480A |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 154.7 cu in (2535.08 cu cm) |
| Included Accessories | Euroblock, Port Plug, Safety Cable, Terminal Weather Boot, U-Bracket |
| Source Inputs | 4 Pin 5.08 mm Euroblock |
| Crossover Frequency | 2.3 kHz |
| Directivity Factor (Q) | 3.7 and 3.9 (Averaged 100Hz - 10kHz, @ 2kHz) |
| Directivity Index (DI) dB | 4.9 dB and 5.9 dB (Averaged 100Hz - 10kHz, @ 2kHz) |
| Frequency Response (± 10 dB) | 76 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 97 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1" (25.4 mm) |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Magnetically Boosted | No |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 35W |
| Minimum Impedance (Ω Ohms) | 3.7 Ω |
| Mounting Depth | 7.47" (189.7 mm) |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 4 Ω |
| Tweeter Driver | 1" Convex Aluminum w/ BroadBeam® Waveguide |
| Woofer Driver | 4" Polypropylene |
| Sensitivity dB @ 1W/1M | 82.5 dB |
| Sensitivity dB @ 2.83V/1M | 85.5 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps (25V / 70.0V / 100V) | 2.5W / 20W / 20W |
| Dimensions (H x W) | 9.68" (245.9 mm) x 6.97" (177 mm) |
| Shipping Weight | 7.3 lbs (3.31 kg) |
