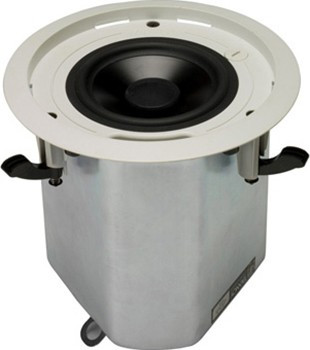

Tannoy CMS501 BM In-Ceiling Monitor - Pair (Discontinued)

The Tannoy CMS 501 is a full bandwidth; high power and high sensitivity ceiling monitor system utilizing Tannoy’s ICT driver technology for high performance and exceptional longevity. The CMS 501 features a 130 mm (5.00”) mineral loaded polypropylene cone mid-bass cone and a 19mm (0.75”) aluminum dome HF unit with Inductive Coupling Technology (ICT). This compact loudspeaker is ideally suited to high-level music and speech applications requiring exceptional sonic quality with uncompromised reliability.

The point source configuration of the Tannoy ICT driver’s mid-bass and tweeter sections ensures a wide and controlled dispersion for optimum coverage. The use of a wireless electromagnetic tweeter means that no crossover is required in the design, improving long-term reliability. The inclusion of a premium quality Tannoy THP 30 low insertion loss multi-tap transformer, for distributed-line operation, provides high system sensitivity, wide bandwidth and exceptional dynamic range.

With a frequency range of 74Hz-24kHz, continuous program power capacity of 100Watts and sensitivity of 89dB/Watt, the CMS 501 is ideal for small to medium sized rooms or installations requiring large arrays of in-ceiling speakers to cover a large area. The CMS 501 is available as Blind Mount and Pre-Install variant without transformer, with or without integrated zinc-plated steel back can, and includes features such as recessed termination box, removable locking connector with screw terminals and a strain relief clamp for use with plenum rated cable or conduit. Spring loaded self-aligning clamps make for quick and easy installation, while all models are supplied with two tile support rails and one C-ring.

• 130 mm (5") ICT transducer for greater durability and longevity
• High power and high sensitivity with extended frequency response
• Wide, controlled constant directivity dispersion for optimum coverage
• Does not suffer from massive loss of energy in the vertical plane at crossover caused by two way discreet designs
• UV/weather resistant UL94 V-0 ABS front baffle
• Blind Mount and Pre Install options
• Low insertion loss 30 W line transformer
• Easily accessible tapping switch on front baffle
• Packaged with tile rails and C-ring for quick and easy installation and simple stocking logistics
