- Description
Details

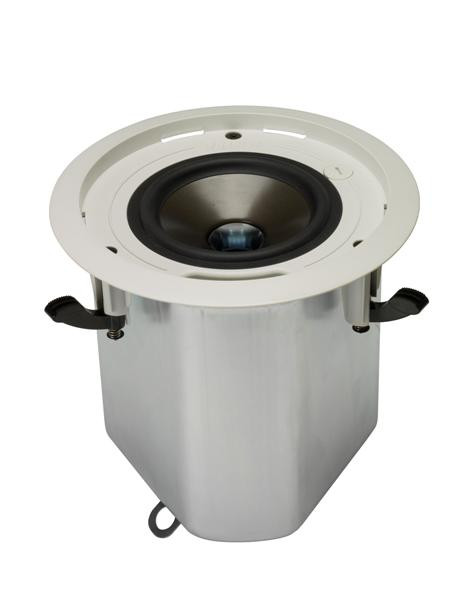

The Tannoy CMS501 DC is a full bandwidth; high power and high sensitivity ceiling monitor system. The 130mm (5.00") Tannoy Dual Concentric™ is a point source, constant directivity drive unit design comprising a multi fibre paper pulp mid bass cone and a 19mm (0.75") ferrofluid cooled, titanium dome HF unit with neodymium magnet system. The driver and passive frequency dividing network is mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mid-bass and tweeter sections of the Tannoy Dual Concentric™ constant directivity driver are coincidentally aligned to a true point source; ensuring a wide and controlled dispersion for optimum coverage; this while avoiding the massive loss of energy, in the vertical plane at the crossover frequency, inherent in two-way discreet designs. This high power and high sensitivity design, with extended frequency response and very low distortion, is equipped with dynamic high frequency protection. This compact unit is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement and exceptional reliability and intelligibility. The zinc plated steel back cans have an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.- Features
Features
- CMS 501 DC BM (Blind Mount) – supplied with an integral back can.
- 130mm (5.00") Point Source Dual Concentric Driver.
- High Power & High Sensitivity with extended frequency response and very low distortion.
- Wide, controlled constant directivity dispertion for optimum coverage.
- Does not suffer from massive loss of energy in the vertical plane at crossover caused by two way discreet designs.
- UV/weather resistant UL94V-0 ABS front baffle.
- Blind Mount & Pre Install options.
- Dynamic High Frequency Protection.
- Easily accessible tapping switch on front baffle.
- Low insertion loss 30w line transformer.
- Ferrofluid cooled Neodymium HF.
- Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics.
- Specification
System Frequency Response (-3dB) (1) 85Hz - 50kHz Frequency Range (-10dB) (1) 74Hz - 54kHz System Sensitivity (1W @1m) (2) 89dB (1W = 2.45V for 6W) Nominal Coverage Angle 90 degrees conical Coverage Angle (1kHz to 6kHz) 105 degrees Directivity Factor (Q) 5.9 averaged 1kHz to 6kHz Directivity Index (DI) 6.9 averaged 1kHz to 6kHz Rated Maximum SPL 107dB (average), 113dB (peak) Power Handling (3) Average: 60W, Programme: 120W, Peak: 240W Recommended Amplifier Power 120W @ 8W Nominal Impedance 8 ohms Transformer Taps 70V: 30W/15W/7.5W/3.75W/ OFF & low impedance operation, 100V: 30W/15W/7.5W/OFF & low impedance Crossover 2kHz - 2nd order LF, 2nd Order HF (with Dynamic HF protection) Transducers Low Frequency 130mm (5.00") Dual Concentric constant directivity driver with multi fibre paper pulp cone High Frequency 19mm (0.75") titanium dome with neodymium magnet system Physical Enclosure Back can: Zinc plated steel, Baffle: Reflex loaded UL 94V-0 rated ABS, Grille: Steel Safety Features Safety ring located at rear of enclosure for load bearing safety bond Clamping Design Security toggle clamp Back Can Options Complete with fixed back can Cable Entry Options Cable clamp & squeeze connector for conduit up to 22mm Conduit Knockouts 3 Sets of horizontal positions 19 / 22 / 28mm (0.75” / 0.87” / 1.10”) Connectors Removable locking connector with screw terminals with "loop through" facility Safety Agency Ratings (pending) UL-1480, UL-2043, CE Hole Cutout Diameter 190mm (7.50") Included Accessories C Ring, tile bridge, paint mask, cutout template, grille Optional Accessories Plaster (mud) ring Dimensions (Bezel Diameter) 210mm (8.20") Dimensions (Front of Ceiling to Rear of Back Can) 189.5mm (7.50") Dimensions (Front of Ceiling to Top of Safety Loop) 207mm (8.10") Weight (ea.) 11 lbs (4.98 kg) - Reviews
