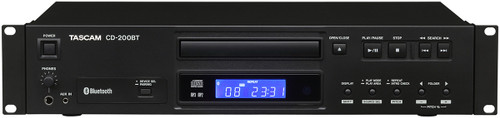

The Tascam CD-200BT Rackmount CD Player With Bluetooth Receiver allows any file type that can be played back by iTunes, Windows Media Player, smartphone player apps and other music applications. The Bluetooth playback uses a wireless connection, so no new wiring is necessary to use compatible audio sources as long as they are in signal-range, allowing easy and speedy playback.
The Bluetooth playback requires pairing. Normally, pairing is one to one, but the CD-200BT has a device selection function that can be used to pair with multiple transmitting devices. By registering devices to be used in advance, you can switch smoothly between transmission devices for playback with minimal connection interruption time. (Only one device can be used for playback at a time) In addition, since the name of the transmission device currently being used for audio playback can be shown on the display, you can check the connection status within this unit.
A variety of different profiles are used for Bluetooth transmission depending on the application. The CD-200BT supports the A2DP (Advanced Audio Distribution Profile) for high audio quality music playback, and SBC (Sub Band Codec), a standard A2DP codec. In addition, it supports the aptX codec, making high quality wireless audio playback possible. The aptX codec also has an error recovery function, so audio is much less likely to be interrupted, compared to ordinary SBC transmission.- Features
Features
- The aptX codec supports high audio quality playback
- Up tp eight Bluetooth® transmission devices can be paired at a time for quick and easy switching
- The name of the transmission device currently being used for playback can be displayed
- aptX, AAC and SBC codecs are supported, and the codec being used can be displayed
- SCMS-T is supported using Bluetooth® (A2DP), so audio with content protection can be received
- Bluetooth® antenna in the front for stable Bluetooth® connections
- High-quality CD drive designed for audio by TEAC
- 10-second shockproof memory prevents skipping from vibrations and other causes
- CD drive supports playback of CD-DA and WAV/MP3/MP2 files (data CD)
- Supports CD text and ID3 tags, so text information, including artist, album and track names, can be shown
- Four playback modes (continuous, shuffle, program and single)
- Repeat playback function (all or single)
- Folder repeat playback (data CD)
- Switch between display of track elapsed time, track and disc remaining time (audio CD)
- +/-14% pitch control function (audio CD/data CD)
- Intro check function can be used to play the first 10 seconds of songs in order (audio CD/data CD)
- RCA analog outputs and COAXIAL/OPTICAL digital outputs
- Stereo mini jack input on the front for portable audio devices
- 2U EIA rack-mount size
- Wireless remote controller with 10-key included
- Paring and device selection can be conducted with the included wireless remote control
- Headphone output
- RoHS certified
- Specification
Playback Media CD, CD-R, CD-RW (8/12cm) Playback Format CD-DA Stereo, 44.1kHz, 16bit WAV (Data CD) Stereo, 8/16/32/11.025/22.05/44.1/12/24/48kHz, 16bit MP2 (Data CD) Stereo, 32/44.1/48kHz, 32-384kbps MP3 (Data CD) Stereo, 32/44.1/48kHz,32-320kbps, VBR Analog Audio Input AUX Connector 1/8" (3.5 mm) Stereo Mini Jack Input Impedance 22k ohms Nominal Input Level -20dBV Maximum Input Level -4dBV Analog Audio Output UNBALANCED Connector RCA pin-jack Output Impedance 200 ohms Nominal Output Level -10dBV (0.32Vms) Maximum Output Level +6dBV (2.0Vms) Digital Audio Output COAXIAL Connector RCA pin-jack Format IEC60958-3 (S/PDIF) OPTICAL Connector TOS (JEITA RC-5720C) Format IEC60958-3 (S/PDIF) Bluetooth® Version 3.0 Output Class Class 2 Supported Profile A2DP, AVRCP Supported A2DP Codec SBC, AAC, aptX® Supported Contents Protection SCMS-T PHONES Connector 6.3 mm (1/4") stereo phone jack Maximum Output Level 20mW + 20mW (THD 0.1%, 32 ohms loaded) Audio Performance Frequency Response 20Hz-20kHz, +/-1dB (playback, JEITA) Distortion 0.01% or less (playback, JEITA) S/N Ratio 90dB or greater (playback, JEITA) Dynamic Range 90dB or greater (playback, JEITA) Channel Separation 90dB or greater (playback, JEITA) Power AC120V, 60Hz (North American)/AC230V, 50Hz (EUR)/AC240V, 50Hz (Australia) Power Consumption 11W Operating Temperature 5-35˚C Inclination of Installation 5˚ or less Dimensions (H x W x D) 3.72" (94.5 mm) x 18.93" (481 mm) x 11.73" (298 mm) Weight 9.92 lbs (4.5 kg) - Documents
