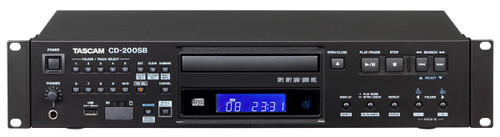

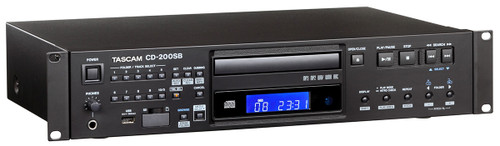

Tascam CD-200SB Rackmount CD Player with SD and USB (Discontinued)

Description

Details

The TASCAM’s CD-200SB is a professional grade CD/digital audio player supporting a wide array of media formats.

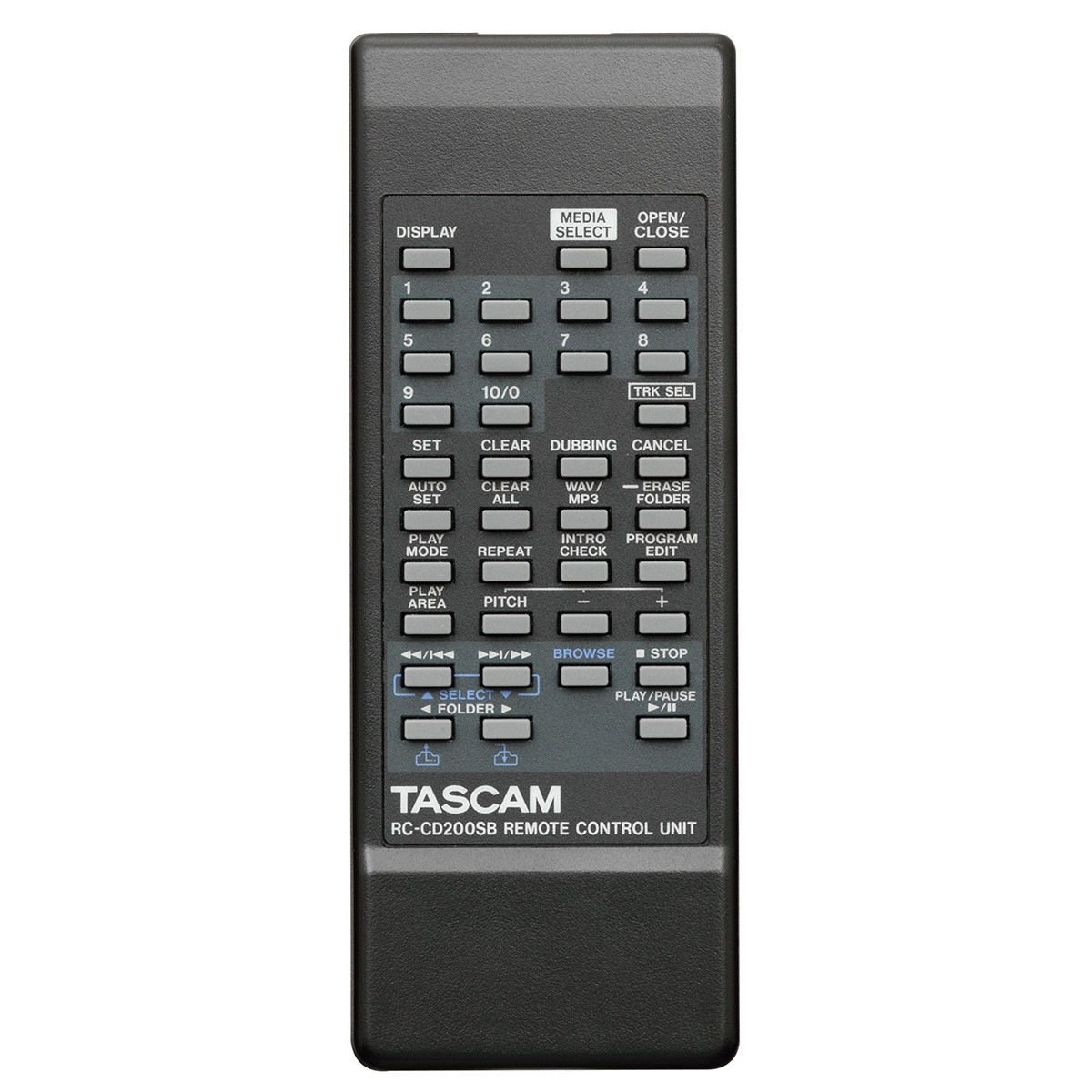

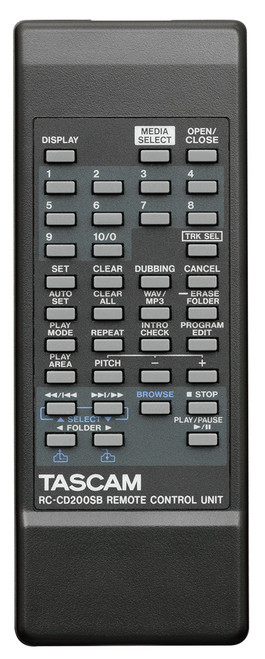

Designed to meet the demand for solid-state and USB media compatibility, the CD-200SB offers SD/SDHC, USB flash storage and CD-R/RW (WAV and MP3 disc) playback along with CD dubbing to both the SD and USB channels. The CD-200SB also features front panel controls for easy-access to files and folders on solid-state media. The unit is equipped with controls for fast track/file selection, multiple playback modes, +/- 14% pitch control and includes a wireless remote control.

Like all models in the signature "CD-200" series, CD-200SB features TASCAM’s proprietary CD-5020A transport, delivering quiet playback, smooth loading and longevity alongside a shockproof memory circuit. And to ensure easy integration into virtually any system, the CD-200SB is equipped with stereo line level outputs on unbalanced RCA as well as balanced XLR connectors and digital audio output on RCA coaxial and optical connectors. Lastly, a 1/4" headphone output for direct monitoring is included. A 2U rack-mountable solution, the CD-200SB is the ideal addition to any commercial or public space installation.

With its wide array of playback features and legendary reliability, the CD-200SB is a media player you can bet your reputation on.

Features

Features

Play files from your solid-state media with ease
Direct access to 10 user defined folders configured within SD/SDHC and USB media
Transfer audio files from CDs to SD/SDHC cards and USB memory drives straight from the device
High-quality and well-regarded CD-5020A disc drive
Supports the demands of the ever-growing solid-state media market
Supports numerous audio formats
CD, CD-DA, Data-CD
SD/SDHC/USB
Shock proof memory

Specification

Supported Media Types	CD, CD-R and CD-RW discs
USB	(4GB–64GB)
SD	(2GB)
SDHC	(4GB–32GB)
Playback File Formats
CD-DA	44.1kHz, 16-bit stereo
MP2	32/44.1/48kHz, 32–320kbps (data CDs/SD cards/USB flash drives)
MP3	32/44.1/48kHz, 32–320kbps, VBR (data CDs/SD cards/USB flash drives)
WAV	8/16/32/11.025/22.05/44.1/12/24/48kHz, 16-bit (data CDs/SD cards/USB flash drives)
AAC	32/44.1/48kHz, 32–320kbps, VBR (SD cards/USB flash drives)
WMA	32/44.1/48kHz, 32–384kbps, VBR (SD cards/USB flash drives)
Dubbing File Formats
WAV	44.1kHz, 16-bit stereo
MP3	44.1kHz, 64/128/256kbps
Analog Output (Balanced)
Connector	XLR-3-32
Output Impedance	200 Ω
Reference Output Level	+4 dBu (1.23 Vrms)
Maximum Output Level	+20 dBu (7.75 Vrms)
Analog Output (Unbalanced)
Connector	RCA pin jack
Output Impedance	200 Ω
Reference Output Level	–10 dBV (0.32 Vrms)
Maximum Output Level	+6 dBV (2.0 Vrms)
Phones Output
Connector	6.3 mm (1/4') Stereo Phone Jack
Maximum Output Level	20 mW + 20 mW (THD+N: 0.1%, 32Ω)
Digital Output (Coaxial)	Connector: RCA Pin Jack, Compatible Signal Format: IEC-60958-3 (S/PDIF)
Digital Output (Optical)	Connector: Optical Jack, Compatible Signal, Format: IEC-60958-3 (S/PDIF)
Audio Performance
Frequency Response	20 Hz - 20 kHz ±1.0 dB (during playback, JEITA)
Signal-to-Noise Ratio (S/N)	More than 90 dB (during playback, JEITA)
Total Harmonic Distortion	Less than 0.01% (during playback, JEITA)
Dynamic Range	More than 90 dB (during playback, JEITA)
Channel Separation	More than 90 dB (during playback, JEITA)
Power Requirement	AC 120 V, 60 Hz
Power Consumption	11 W
Operating Temperature	5 to 35°C
Inclination of Installation	5° or less
Dimensions (H x W x D)	3.72" (94.5 mm) x 18.93" (481 mm) x 11.73" (298 mm)
Weight	10.36 lbs (4.7 kg)
