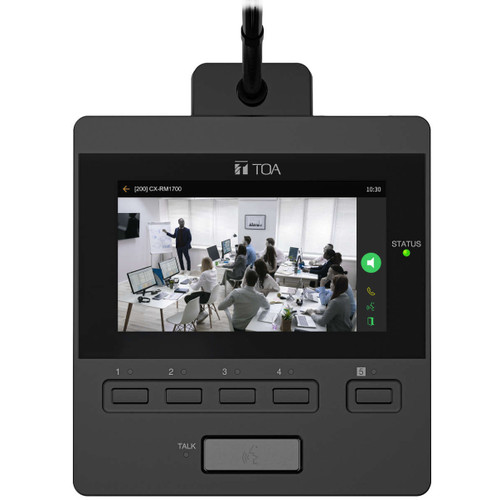

TOA CX-RM1700 5-Inch Touchscreen Remote Microphone

The CX-RM1700 is a touch-screen remote microphone designed for the CX-1000 series IP communication system. By connecting to a network (LAN or WAN), users can make audio broadcasts to intercom stations, audio units, and amplifier units using the microphone or connected audio sources. Chime broadcasts can also be played from the built-in memory, offering customizable announcements.

Equipped with a 5-inch touch screen LCD and direct keys, the CX-RM1700 provides intuitive operation, allowing users to assign arbitrary functions to the keys. The built-in electret condenser microphone and 1W dynamic speaker ensure clear audio transmission for both live and recorded messages.

For flexible installation, the CX-RM1700 supports PoE (IEEE802.3af) or 12V DC power. Dual LAN ports, with PoE support on LAN A, enable seamless network integration, and ONVIF-compatible IP camera images can be displayed, expanding its functionality for visual monitoring.

Features

Features

5" Touchscreen LCD with direct keys for intuitive operation
Built-in electret condenser microphone and 1W dynamic speaker
Supports G.722 and PCM audio codecs for high-quality transmission
Audio broadcasts to intercom stations, audio units, and amplifier units
Customizable Chime broadcasts from built-in memory
Dual LAN ports with PoE support (LAN A), optional 12V DC power
1 Control input and 1 relay output for external device integration
Additional 2 control inputs, 1 control output, and 1 mute input
ONVIF-compatible IP camera display support

Specification

Power Source	PoE (IEEE802.3af compliant) or 12V DC (optional AC adapter)
Current Consumption	PoE: 190 mA, 12V DC: 560 mA
Power Consumption	7.5W
Microphone	Unidirectional electret condenser microphone (with indicator)
AUX Input	1 channel, -60 dB/20 dB selectable, 600Ω, transformer-balanced
Frequency Response	200 Hz - 16 kHz
Signal to Noise Ratio	60 dB or more
Distortion	1% or less
Internal Speaker	Dynamic type speaker, maximum output 1W
Network Interface	100Base-TX, dual RJ45 (LAN A PoE compatible, LAN B non-PoE)
Audio Transmission	Sampling frequency 48 kHz/16 kHz, PCM, G.722, Unicast/Multicast
User Control	5" touch screen LCD, Direct key x5, Talk key
LED Indicators	SELECT (green) x5, Microphone (green) x1, STATUS (yellow/red/green) x1, TALK (green) x1
Control Input/Output	1 channel each: 12V DC no-voltage input, relay output 30V DC/100 mA
Installation	Desktop installation only
Dimensions (H x W x D)	2.25" (57.1 mm) x 5.98" (152 mm) x 7.43" (188.7 mm)
Weight	1.48 lbs (0.67 kg)
