TOA HS-1200BT 12" 2-Way 300W Controlled Directivity Speaker 70V/100V/8½ - Black

Part #:
HS-1200BT
Model #:
HS-1200BT
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The TOA HS-1200BT is a 12-inch 2-way controlled directivity speaker delivering 300W continuous power with selectable 70V, 100V, and 8-ohm operation. Its 90° x 40° coverage, array tweeter design, and rugged black enclosure make it ideal for installed and portable sound systems.

Description

TOA HS-1200BT 12-Inch 2-Way Controlled Directivity Speaker

The HS-1200BT is a professional 2-way controlled directivity speaker designed to deliver outstanding speech intelligibility and powerful music reproduction in a wide range of commercial and professional audio applications. Equipped with a high-performance 12-inch low-frequency driver and an advanced array tweeter system, it provides consistent 90° horizontal by 40° vertical coverage for improved sound control and even distribution throughout the listening area. Finished in black, it blends seamlessly into auditoriums, houses of worship, sports venues, and performance spaces.

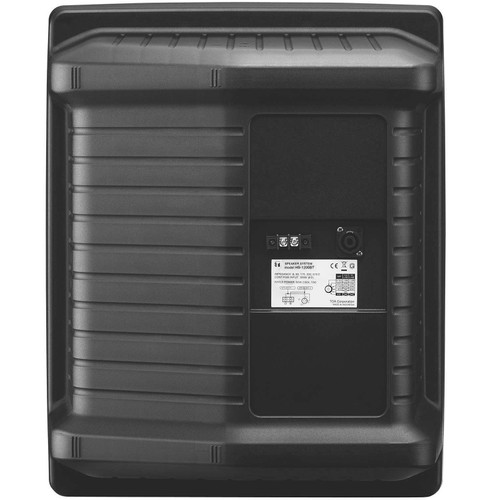

Designed for maximum installation flexibility, the HS-1200BT supports 70V, 100V, and 8-ohm operation, making it equally suited for distributed audio systems and conventional low-impedance installations. Dual input connections featuring Speakon and screw terminals simplify integration into both permanent and portable sound systems, while the integrated carry handle and lightweight cabinet make transportation and setup easy. The cabinet can also be positioned as a floor monitor for live sound reinforcement.

The HS-1200BT combines compact size with professional performance, offering 300W continuous power handling and excellent vocal clarity even in acoustically challenging environments. Its controlled directivity minimizes unwanted reflections, while the array tweeter design reduces size and weight without sacrificing output, making it an excellent solution for corporate venues, educational facilities, houses of worship, theaters, and other professional sound reinforcement applications.

Features

  • 12-inch 2-way controlled directivity loudspeaker
  • 300W continuous program power handling
  • Selectable 70V, 100V, and 8-ohm operation
  • 90° horizontal x 40° vertical sound dispersion
  • High-output 12-inch low-frequency driver
  • Lightweight array tweeter design for reduced size and weight
  • Dual input terminals with Speakon and screw connectors
  • Can be used as a floor monitor or main PA speaker
  • Integrated carry handle for easy transport
  • Suitable for permanent and portable sound reinforcement
  • Rugged black enclosure for professional installations

Specifications

Enclosure Sealed type
Rated Input 60W (High Impedance)
Power Handling Continuous pink noise: 100W (Low Impedance)
Continuous program: 300W (Low Impedance)
Rated Impedance

100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W)

70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W)

Sensitivity 97 dB (1W, 1 m)
Frequency Response 70 - 20,000 Hz
Crossover Frequency 3 kHz
Directivity Angle Horizontal: 90°, Vertical: 40°
Speaker Component Low frequency: 30 cm (12) cone-type
Input Terminal NEUTRIK NL4MPXX Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35")
Included Accessories Handle x1, Handle fitting bracket x2, Handle mounting screw x2, Rubber foot x2,
Rubber foot mounting screw x2
Dimensions (H x W x D) 17.64" (448 mm) x 14.21" (361 mm) × 12.60" (320 mm)
Weight 22.05 lbs (10 kg)
