The TOA HS-1200WT is a 12-inch 2-way controlled directivity speaker delivering 300W continuous power with selectable 70V, 100V, and 8-ohm operation. Its 90° x 40° coverage, array tweeter design, and clean white enclosure make it ideal for installed and portable sound systems.

Description

TOA HS-1200WT 12-Inch 2-Way Controlled Directivity Speaker

The HS-1200WT is a professional 2-way controlled directivity speaker designed to deliver exceptional speech intelligibility and powerful music reproduction across a wide range of commercial and professional audio applications. Featuring a high-performance 12-inch low-frequency driver and an advanced array tweeter system, it provides consistent 90° horizontal by 40° vertical coverage for precise sound control and even distribution throughout the listening area. The white enclosure offers a clean, unobtrusive appearance that complements modern architectural spaces.

Designed for maximum installation flexibility, the HS-1200WT supports 70V, 100V, and 8-ohm operation, making it ideal for both distributed audio systems and conventional low-impedance installations. Twin input connections with Speakon and screw terminals simplify integration into permanent or portable sound systems, while the integrated carry handle makes transportation and installation easy. The enclosure can also be positioned as a floor monitor for live sound reinforcement applications.

Delivering 300W continuous program power, the HS-1200WT combines high output with controlled directivity to minimize unwanted reflections and improve vocal clarity in acoustically challenging environments. Its lightweight array tweeter design reduces overall cabinet size and weight without sacrificing performance, making it an excellent choice for houses of worship, auditoriums, educational facilities, conference centers, theaters, and other professional sound reinforcement applications.

Features

  • 12-inch 2-way controlled directivity loudspeaker
  • 300W continuous program power handling
  • Selectable 70V, 100V, and 8-ohm operation
  • 90° horizontal x 40° vertical sound dispersion
  • High-output 12-inch low-frequency driver
  • Lightweight array tweeter design for reduced size and weight
  • Twin input terminals with Speakon® and screw connectors
  • Can be used as a floor monitor or main PA speaker
  • Integrated carry handle for easy transport and installation
  • Suitable for permanent and portable sound reinforcement
  • Durable white enclosure for professional AV installations

Specifications

Enclosure Sealed type
Rated Input 60W (High Impedance)
Power Handling Continuous pink noise: 100W (Low Impedance)
Continuous program: 300W (Low Impedance)
Rated Impedance

100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W)

70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W)

Sensitivity 97 dB (1W, 1 m)
Frequency Response 70 - 20,000 Hz
Crossover Frequency 3 kHz
Directivity Angle Horizontal: 90°, Vertical: 40°
Speaker Component Low frequency: 30 cm (12) cone-type

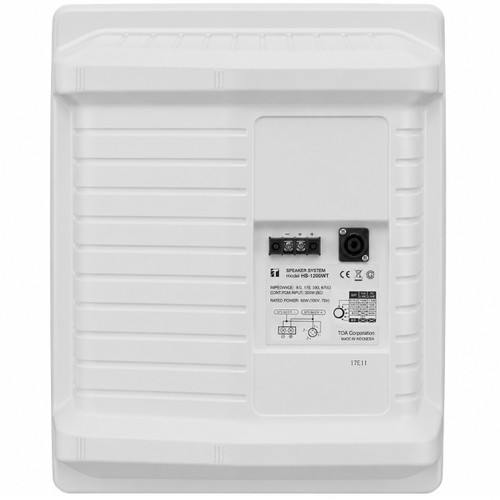

Input Terminal NEUTRIK NL4MPXX Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35")
Included Accessories Handle x1, Handle fitting bracket x2, Handle mounting screw x2, Rubber foot x2,
Rubber foot mounting screw x2
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white
Dimensions (H x W x D) 17.64" (448 mm) x 14.21" (361 mm) × 12.60" (320 mm)
Weight 22.05 lbs (10 kg)
