The 224 18/2 non-plenum audio speaker wire delivers dependable performance for both commercial and residential sound systems. Built with 18 AWG stranded bare copper conductors, it ensures strong signal transmission and long-term durability. Each conductor is insulated with red and black PVC for clear polarity identification and enclosed in a flexible black jacket that allows easy installation through walls, ceilings, or conduit.

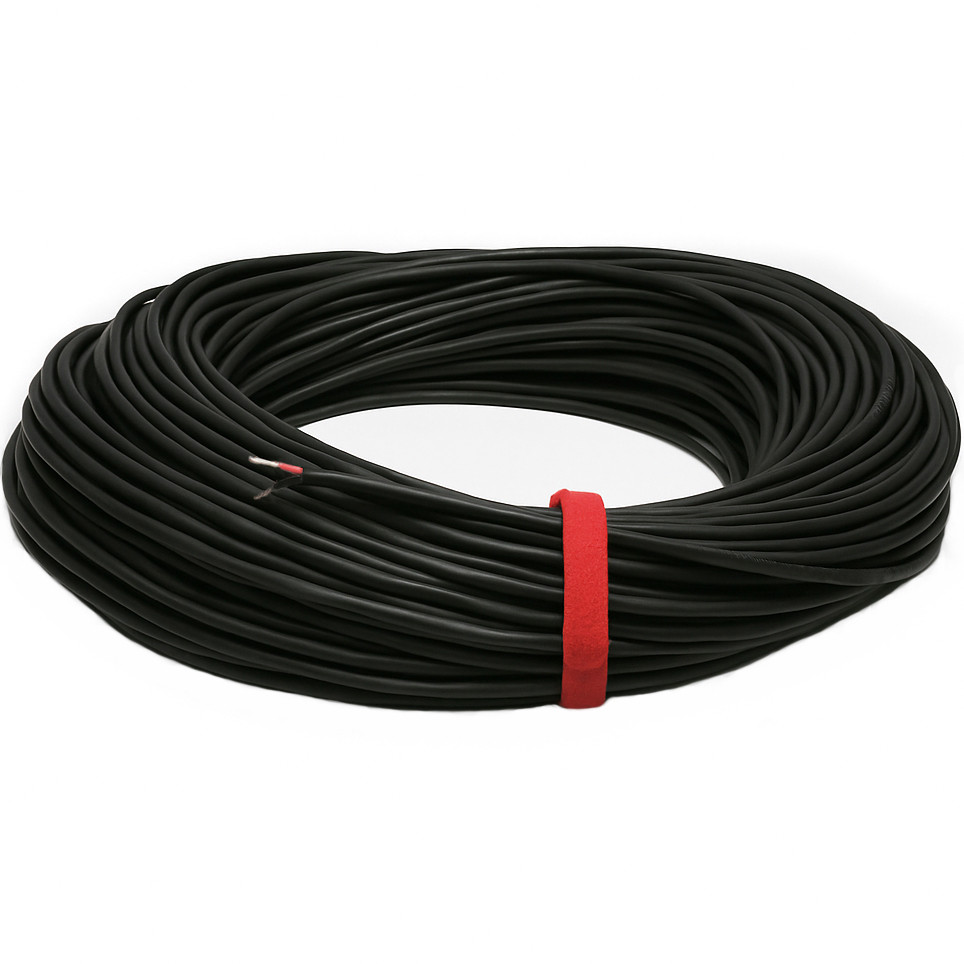

Supplied in a 1000 ft spool with sequential footage markings, this cable offers efficiency and precision during setup. Perfect for speaker connections, paging systems, and low-voltage audio wiring, the West Penn 224 provides a high-quality, cost-effective solution for professional-grade sound distribution.
| Number of Conductors | 2 |
|---|---|
| AWG Size | 18 |
| Conductor Stranding | 7 x 26 |
| Conductor Type | Bare Copper |
| Nominal DCR | 6.2Ω per 1000 ft |
| Cabling Lay Length | 3.5" |
| Twists per Foot | 3.4 twist/ft |
| Insulation Type | Thermoplastic |
| Insulation Thickness | 0.008" |
| Insulation Colors | Red and Black |
| Jacket Type | PVC |
| Jacket Color | Black |
| Jacket Thickness | 0.017" |
| Nominal Cable O.D. | 0.156" |
| Plenum Rated | No |
| UL/NEC Rating | CMR, CMG |
| RoHS Compliant | Yes |
| Pull Tension | 42 lbs |
| Bend Radius | 1.40" |
| UL Flammability | UL1666 Vertical Shaft |
| CSA Flammability | FT4 |
| Operating Temperature | -20°C to 60°C |
| Voltage Rating | 300V |
