The Williams AV IR SY12 IR+ complete infrared assistive listening system includes an IR M1 modulator, two IR E4 emitters, and five IR RX20 receivers. It provides a secure, fully integrated IR assistive listening solution for venues requiring clear, reliable audio coverage.

Description

Williams AV IR SY12 IR Plus Complete Infrared Assistive Listening System

The IR SY12 IR+ complete infrared assistive listening system is a secure and fully featured solution designed for professional assistive listening applications. It delivers clear, private audio transmission using infrared technology, ideal for environments where secure and interference-free listening is required.

This system includes the IR M1 infrared modulator and Wi-Fi server, providing stable audio distribution to the infrared emitters. Two IR E4 emitters ensure wide and consistent room coverage, delivering high-quality audio throughout the listening area.

The system also includes five IR RX20 infrared receivers for end users, along with essential accessories such as a multi-bay charger, neckloops, linking hardware, and ADA signage components. These elements combine to create a complete, installation-ready assistive listening solution for compliant and accessible venues.

Features

Complete IR+ secure assistive listening system
Includes IR M1 infrared modulator and Wi-Fi server
Two IR E4 emitters for reliable room coverage
Five IR RX20 infrared receivers included
Designed for secure, interference-free audio transmission
Ideal for ADA-compliant assistive listening applications
Includes a multi-bay charger for receiver management

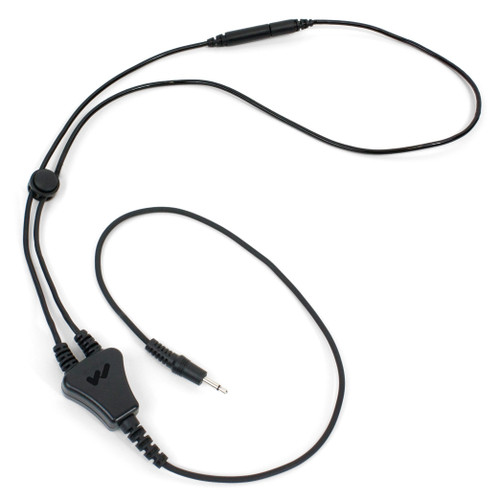

Neckloops included for hearing aid compatibility
Complete installation-ready system with accessories
Suitable for theaters, houses of worship, and public venues

Specifications

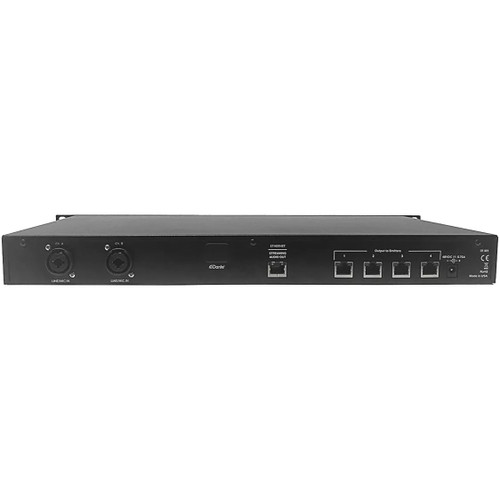

IR M1 Modulator
Power Supply	110-240 VAC input, +48 VDC output (international desktop supply)
Power Consumption	36W
Audio Inputs	2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable)
Frequency Response	40 Hz - 16 kHz (+1 dB, -3 dB)
Signal-to-Noise Ratio	67 dB (typical)
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm)
Weight	5.2 lbs (2.4 kg)

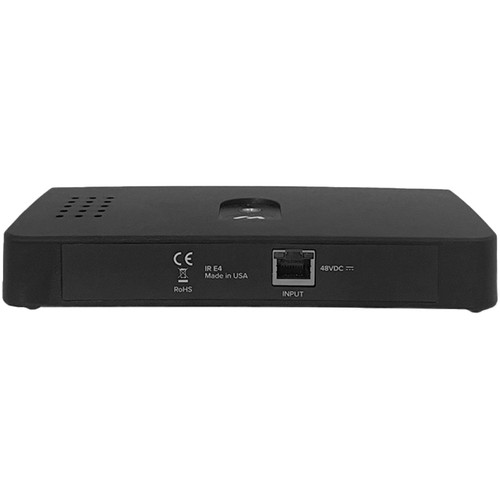

IR E4 Emitter
Power	48 VDC supplied by IR M1 via CAT 5e cable
Coverage Area	Up to 18,000 (1670 m) square feet in single channel mode
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
Operating Requirements	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Dimensions (H x W x D)	1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm)
Weight	0.8 lbs (0.36 kg)

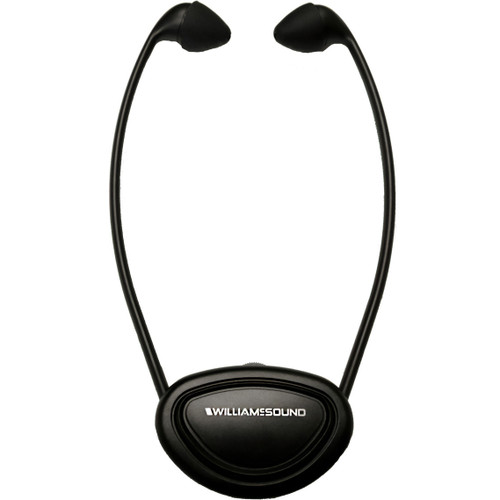

WIR RX22
Battery Type	2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Drain	25 mA, nominal
Frequency Response	25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion	Less than 1%, electrical response
Controls	ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Dimensions (H x W x L)	1.2" (30.4 mm) x 3.86" (72.4 mm) x 4.1" (104.1 mm)
Weight	0.28 lbs (0.13 kg)
CHG 520 Charger
Power Supply Input	120 VAC
Power Supply	100-240V/5 VDC
Unit Capacity	5 Units
Indicators	Individual Charging Indicators: Red LEDs
Approvals	WEEE, RoHS, CE, FCC, CANADA, RCM, UK CA
Dimensions (H x W x D)	1.5" (38.1 mm) x 6.25" (158.8 mm) x 12" (304.8 mm)
Weight	0.85 lbs (0.39 kg)
