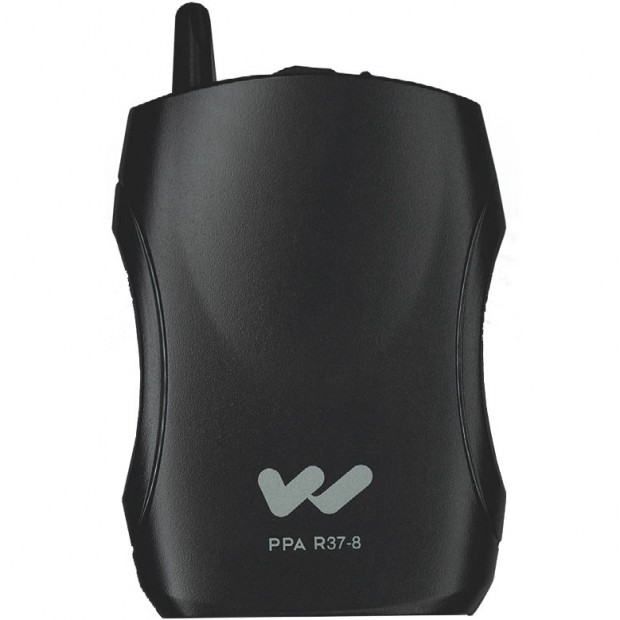

Flexible and simple. The PPA R37-8 FM receiver features easy-to-use, 8 channel rotary selection knob with access to 8 pre-set wideband frequencies between 72-76 MHz. Compatible with the following Williams Sound transmitters: PPA T45, PPA T46, and PPA T27. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
NOTE: The PPA R37-8 FM Receiver requires a transmitter operating on 72-76 MHz. The receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government´s radio regulations for 72-76 MHz operation.
| Color | Black |
|---|---|
| Battery Type | (2) AA Alkaline or (2) x AA NiMH |
| Battery Life | (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs, or (2) AA rechargeable NiMH batteries (BAT 026-2), 1500 mAh, approx. 32 hrs |
| Current Consumption | 42 mA nominal |
| Temperature Range | – 0 to 50 °C |
| Channels | 8, accessed via rotary knob on top of unit |
| Operating Frequencies | 72.1, 72.3, 72.6, 72.8, 74.7, 75.4, 75.7, 75.9 MHz |
| Modulation | FM, +/- 75 kHz peak deviation |
| De-Emphasis | 75 µS |
| LED Indicator | Power: Green; Low Battery: Flashes Green; Sleep mode: Fade-on, Fade-off |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 – 15 kHz |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 Ω |
| Output Connector | 3.5 mm stereo/mono phone jack |
| Included Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 Ω |
| Sleep Mode | Enters sleep mode after approximately 6 mins of no RF signal, returns to normal operation when a transmitter is re-established on same channel |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty (90 Days on most accessories) |
| Dimensions (H x W x D) | 4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm) |
| Weight (without batteries) | 0.16 lbs (0.07 kg) |
| Weight (with batteries) | 0.29 lbs (0.13 kg) |
