| Color |
Case: Black, white and blue legends on front, white legends on back. |
| Fan Cooling |
Variable Speed, Temperature Controlled |
| Power |
100-240 VAC, 50/60 Hz, 500 Watt |
| Heat Output |
Sleep state: 83 BTU, Idle State: 112 BTU Driving two loops @9A each: 286 BTU |

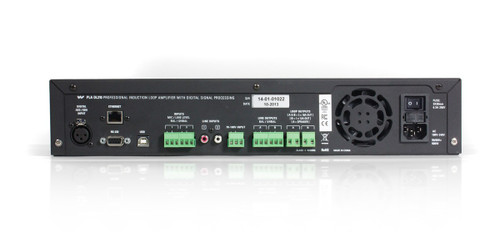

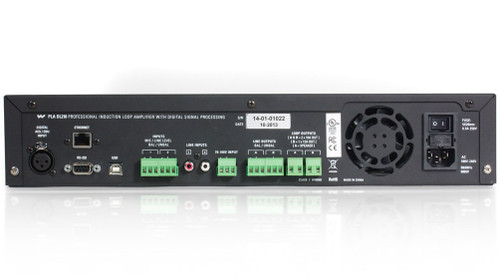

| Digital Input |
(1x XLR); AES or EBU; 44.1kHz/48kHz |
| Analog Line Inputs |
(1x RCA, L+R); -10dBV, 10kΩ input impedance |
| Mic/Line Inputs |
(2x Phoenix Terminal Block); balanced or unbalanced. |
| Input impedance |
1.5kΩ Mic, 10kΩ Line |
| 70-100v Input |
(1x Phoenix Terminal Block); speaker-level input, for distributed audio systems |
| Line Outputs |
(2x Phoenix Terminal Block); loop-through of Mic/Line inputs 1 & 2. +4dBu. Balanced or Unbalanced |
| Loop Outputs |
2x Phoenix Terminal Block |
| Required Loop Resistance |
0.5Ω to 1.5Ω (DC) |
| Output Current (Loop) |
One Loop, Output A or B: 12A rms, Two Loops, Outputs A and B: 10A rms each |
| Output Power (Speaker) |
50 Watts X 1 Channel @ 4 Ω (35 Watts @ 8 Ω). Class D. |
| Loop Frequency Response |
100Hz to 10kHz @400mA (Output A or B) |
| Speaker Frequency Response |
20Hz - 20kHz (Output A) |
| Speaker Dynamic Range |
>90 dB; A-weighted, typical |
| Speaker THD+N |
0.07%; 50 watts into 4Ω @ 20-20kHz |
| Loop THD |
|

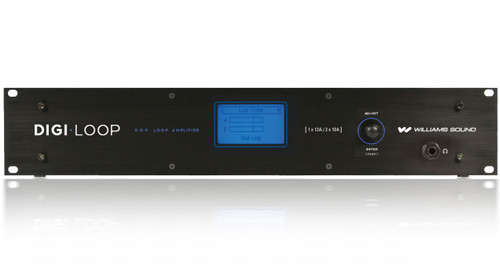

| Front Controls |
Front LCD display menu access/adjustment via control dial |
| Remote Control/Configuration |
Ethernet, USB, RS-232. Application “PC Mixer App” supports all 3 protocols |
| Ethernet |
Standard RJ-45 jack |
| RS-232 |
Standard DB-9 COM port connector |
| USB |
Standard-B jack. USB 1.1, 2.0 or 3.0 supported |
| Warranty |
2 years |
| Approvals |
CE, UL, ULC, FCC, Industry Canada, RoHS, WEEE, CB scheme |
| Dimensions (H x W x D) |
3.5" (90 mm) x 19" (482.6 mm) x 12" (304.8 mm) |
| Weight |
14.3 lbs (6.5 kg) |
| Color/Material |
Black ABS/polycarbonate molded plastic case |
| Battery Type |
(2) AA (1.5VDC) Alkaline or NiMH (rechargeable) |
| Battery Life |
Up to 200 hours with Alkaline batteries |
| LED Indicator |
Green LED indicates power on, flashes when batteries are low |
| Headphone Jack |
3.5mm stereo TRS jack works with mono or stereo headphones |
| Volume control |
External switched thumb wheel controls power on/off and volume level |
| Tone control |
Rotary control inside battery compartment (1kHz reference at 400mA/m input with Tone at mid position) |
| Induction Coil |
Maximum reception: receiver oriented vertically |
| Power Output |
35mW (max) into 33 ohms mono impedance |
| THD |
|
| Frequency Response |
300Hz to 10KHz, -6dB |
| Dimensions (H x W x D) |
4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm) |
| Weight |
0.29 lbs (130 g) with batteries |

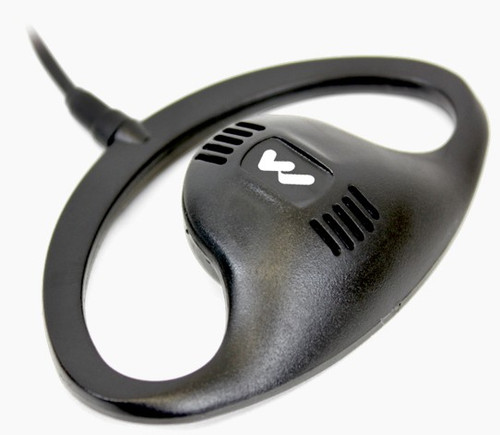

| Plug |
3.5 mm mono |
| Cord length |
39 inches |
| Impedance |
32 Ohms |
| Frequency Range |
20 - 20kHz |
| Max input power |
5mV |
| Sensitivity |
128dB @ 1kHz |
| Driver size |
13 mm |
| Replacement earpad |
EAR 015 |
| Weight |
0.0198 lbs (9 g) |
