- Description
Details
The Williams Sound PLA DL 210 SYS 2 Large Area DSP Induction Loop System with Network Control is the first of its kind to maximize modern amplifier technology. DSP audio processing offers flexible, powerful software control of mixing, equalization, compression, loop phase shift and more. Powerful Class D, pulse-width amplifiers maximize efficiency, and reduce size and weight. And network control capability provides seamless, remote system set-up, operation and monitoring via laptop, tablet or other portable device. The Digi-Loop’s dual-amplifier design offers flexibility, with the option of single 12A output for perimeter loops or dual 10A outputs for loop arrays or one loop and one loudspeaker. Digi-Loop is the only loop amplifier to offer an easy-to-read LCD graphic display.
- Features
Features
- Crestron control
- DSP Audio Processing
- Digital Inputs - AES3/EBU and Dante
- LCD Screen with Metering
- Ethernet or RS-232 control
- USB for firmware updates
- Mixing, Equalization, Compression, Phase, and Frequency-Shaping
- Power-save mode
- Master Gain Control
- High output current: 12/10 amps
- Active protection against short circuits
- XLR input configurable as microphone input or line-input, balanced or unbalanced.
- Standard 2RU, 19” rack enclosure
- Magnetic signal couples directly to hearing aids equipped with telecoils (T-coils)
- Can be used with optional loop receivers
- Suitable for set-up of high or low-overspill systems, or interleaved arrays
- Meets ADA / ADAAG guidelines
- Meets IEC Specification 60118-4
- Specification

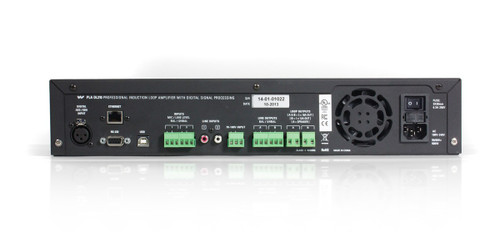

PLA DL210NET Amplifier Color Case: Black, white and blue legends on front, white legends on back Fan Cooling Variable Speed, Temperature Controlled Power 100-240 VAC, 50/60 Hz, 500 Watt Heat Output Sleep state: 83 BTU, Idle State: 112 BTU Driving two loops @9A each: 286 BTU Digital Input (1x XLR); AES or EBU; 44.1kHz/48kHz Analog Line Inputs (1x RCA, L+R); -10dBV, 10kΩ input impedance Mic/Line Inputs (2x Phoenix Terminal Block); balanced or unbalanced Input impedance 1.5kΩ Mic, 10kΩ Line 70-100v Input (1x Phoenix Terminal Block); speaker-level input, for distributed audio systems Line Outputs (2x Phoenix Terminal Block); loop-through of Mic/Line inputs 1 & 2. +4dBu. Balanced or Unbalanced Loop Outputs 2x Phoenix Terminal Block Required Loop Resistance 0.5Ω to 1.5Ω (DC) Output Current (Loop) One Loop, Output A or B: 12A rms, Two Loops, Outputs A and B: 10A rms each Output Power (Speaker) 50 Watts X 1 Channel @ 4 Ω (35 Watts @ 8 Ω). Class D. Loop Frequency Response 100Hz to 10kHz @400mA (Output A or B) Speaker Frequency Response 20Hz - 20kHz (Output A) Speaker Dynamic Range >90 dB; A-weighted, typical Speaker THD+N 0.07%; 50 watts into 4Ω @ 20-20kHz Loop THD <1% at nominal power output, 1kHz sine wave Front Controls Front LCD display menu access/adjustment via control dial Remote Control/Configuration Ethernet, USB, RS-232. Application “PC Mixer App” supports all 3 protocols Ethernet Standard RJ-45 jack RS-232 Standard DB-9 COM port connector USB Standard-B jack. USB 1.1, 2.0 or 3.0 supported Warranty 2 years Approvals CE, UL, ULC, FCC, Industry Canada, RoHS, WEEE, CB scheme Dimensions (H x W x D) 3.5" (90 mm) x 19" (482.6 mm) x 12" (304.8 mm) Weight 14.3 lbs (6.5 kg) PLR BP1 Receiver Color/Material Black ABS/polycarbonate molded plastic case Battery Type (2) AA (1.5VDC) Alkaline or NiMH (rechargeable) Battery Life Up to 200 hours with Alkaline batteries LED Indicator Green LED indicates power on, flashes when batteries are low Headphone Jack 3.5mm stereo TRS jack works with mono or stereo headphones Volume control External switched thumb wheel controls power on/off and volume level Tone control Rotary control inside battery compartment (1kHz reference at 400mA/m input with Tone at mid position) Induction Coil Maximum reception: receiver oriented vertically Power Output 35mW (max) into 33 ohms mono impedance THD <2% Frequency Response 300Hz to 10KHz, -6dB Dimensions (H x W x D) 4.1" (104 mm) x 2.85" (72 mm) x 1.38" (35 mm) Weight 0.29 lbs (130 g) with batteries EAR 013 Earbud Plug 3.5 mm mono Cord length 39 inches Impedance 32 Ohms Frequency Range 20 - 20kHz Max input power 5mV Sensitivity 128dB @ 1kHz Driver size 13 mm Replacement earpad EAR 015 Weight 0.0198 lbs (9 g) - In The Box
In The Box
- (1) PLA DL210NET DSP Induction Loop Amplifier

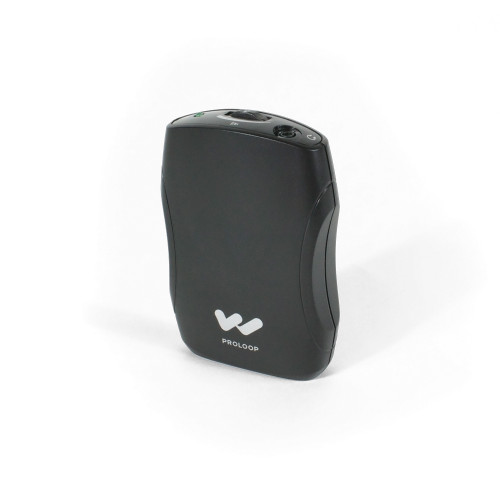

- (2) PLR BP1 Body-Pack Receivers
- (2) EAR 022 Surround Earphones
- (1) BAT KT6 Dual Drop-In Charger Kit

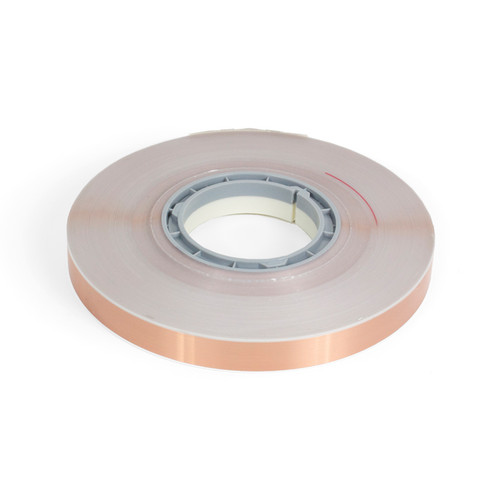

- (2) PLW F500 Power Loop Wire (flat copper wire)
- (6) FWT 001 Flat Wire Warning Tape
- (1) IDP 009 ADA Wall Plaque (T-Coil)
