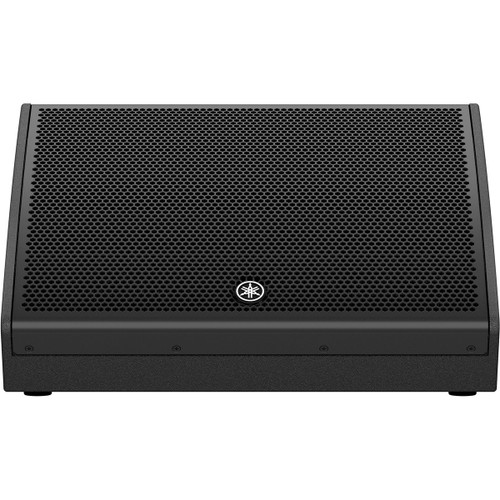

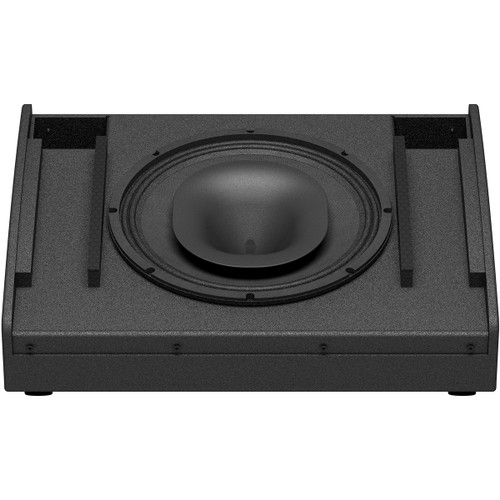

The CHR15M is a professional 15" 2-way passive loudspeaker designed for precise onstage monitoring and compact PA applications. Featuring a coaxial 15" LF driver and a 1.75" HF compression driver mounted in a custom constant directivity horn, it delivers smooth phase response and consistent coverage, ensuring accurate and natural sound reproduction.
Built to withstand the rigors of live performance, the CHR15M features a compact, low-profile plywood cabinet with a durable polyurea coating and a heavy steel grille for maximum protection. Triple Speakon connections wired in parallel, along with a 35 mm pole socket, provide flexible setup options on stage or for small installations.
Optimized for use with Yamaha DSP-equipped amplifiers or other compatible signal processors, the CHR15M combines high-quality transducers and intelligent design to deliver exceptional clarity, high SPL, and musical accuracy. Its coaxial design reduces phase issues, making it one of the most accurate floor monitors in its class while maintaining a robust and portable form factor. With 1100W power handling, it provides the headroom needed for demanding professional audio applications.
| System Type | 2-way Speaker, Bass-reflex |
|---|---|
| Components | LF: 15" cone, 2.5" voice coil, ferrite magnet HF: 1.75" diaphragm, 1" throat coaxial compression driver, ferrite magnet |
| Frequency Range (-10 dB) | 58 Hz - 20 kHz |
| Crossover | 2.0 kHz |
| Coverage Angle (H x V) | 65° x 75° |
| Nominal Impedance | 8Ω |
| Sensitivity (1W; 1m on axis) | 95 dB SPL |
| Peak SPL (Calculated) | 125 dB SPL |
| Power Rating | Noise: 275W, PGM: 550W, Peak: 1,100W |
| I/O Connectors | SpeakON NL4MP x 3 (Parallel) |
| Cabinet Material | Plywood |
| Finish | Durable Polyurea Painting, Black |
| Handles | Side x1 |
| Pole Socket | Φ35 mm x1 (Bottom) |
| Floor Monitor Angle | 57° |
| Dimensions (H x W x D) | 14.5" (369 mm) x 25.3" (642 mm) x 18.9" (505 mm) |
| Weight | 47 lbs (21.3 kg) |
