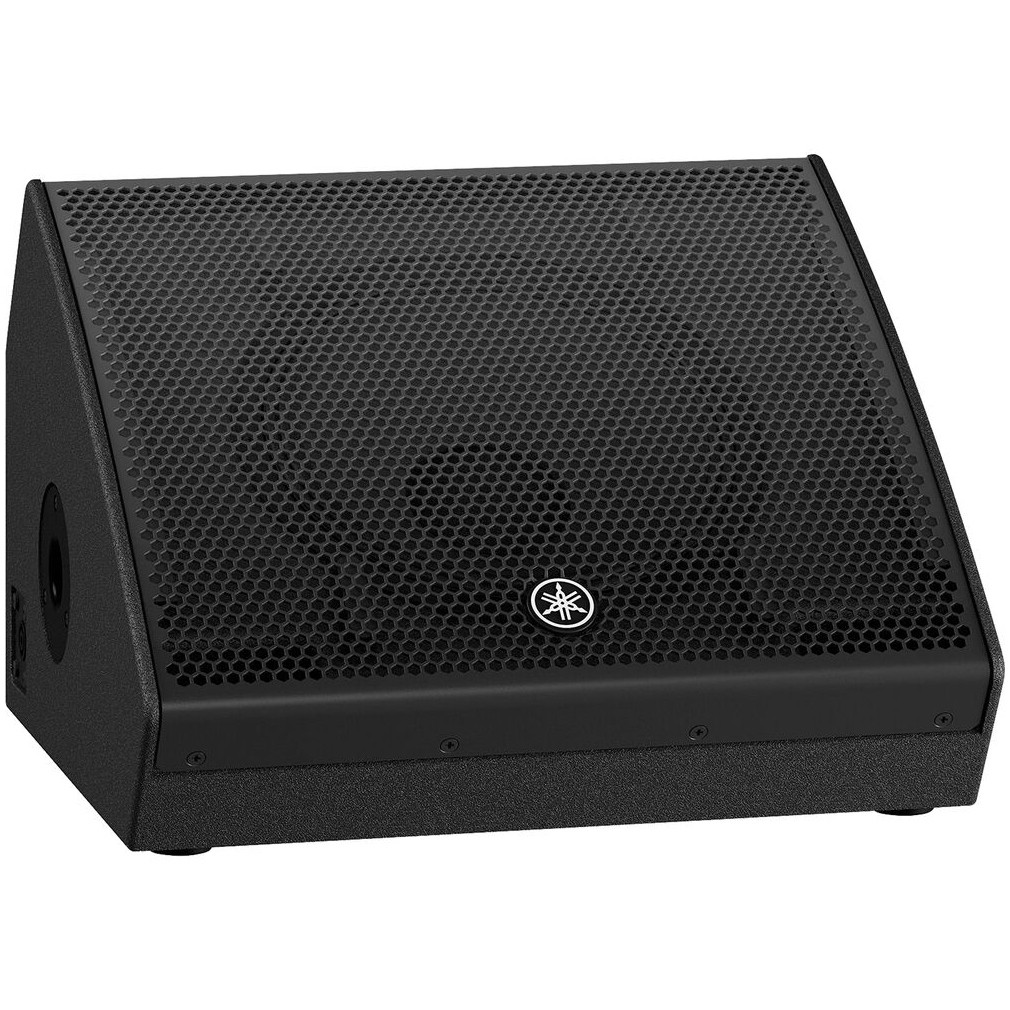

Live sound engineers in search of a professional-grade, passive floor monitor will be impressed with the black Yamaha CHR12M, a compact, passive, two-way coaxial floor monitor / loudspeaker that's well suited for clubs, bars, and other live sound applications.

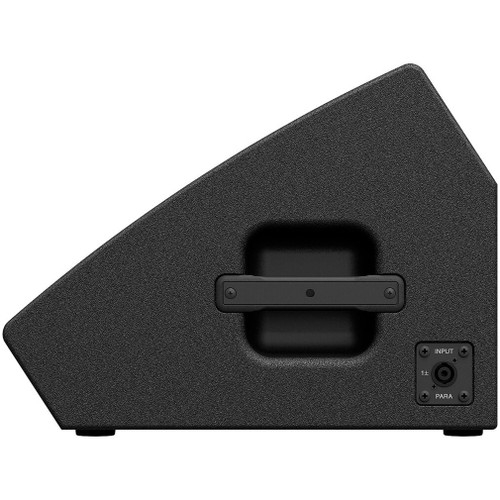

The speaker utilizes a 12" woofer and 1.75" compression driver, which are arranged in a coaxial design to deliver precise, smooth phase and frequency response characteristics ideal for use in monitoring application. The monitor offers a frequency range of 61 Hz to 20 kHz at 123 dB SPL. There are NL4 connectors on each side, making it easy to chain monitors, thereby preventing messy cabling.

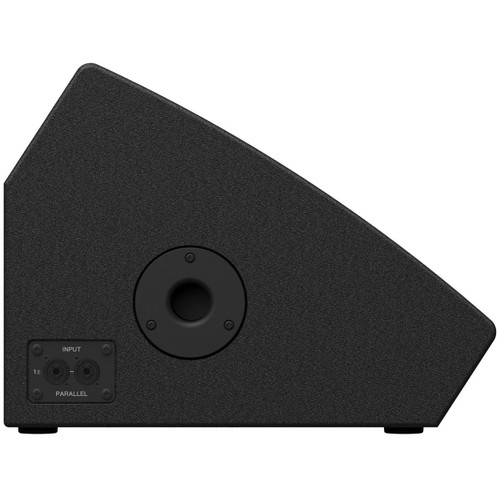

The plywood enclosure is finished with a durable Polyurea coating. A standard 1.4" pole socket is available on one side of the speaker, allowing it to be mounted on a speaker pole for side-fill monitoring or main FOH applications. Utilize processor tuning settings for a Yamaha DSP equipped amplifier or other compatible signal processors to maximize system performance.
| Pole Socket | 1.4" / 35 mm Pole Socket |
|---|---|
| Configuration | 12" 2-way Speaker, Bass-reflex Type |
| Power Rating (IEC Noise) | Noise: 250W PGM: 500W MAX: 1000W |
| LF Driver | 12" Cone |
| HF Driver | 1.75" |
| Frequency Range | 61Hz - 20kHz (-10 dB) |
| Maximum SPL | 123 dB |
| Coverage Angle | 90° H x 60° V |
| Connectors | SpeakON NL4MP x 3 (Parallel connected) |
| Rigging Points | None |
| Dimensions (H x W x D) | 13.5" (343 mm) x 19.75" (500 mm) x 18" (454 mm) |
| Weight | 34.3 lbs (15.6 kg) |
