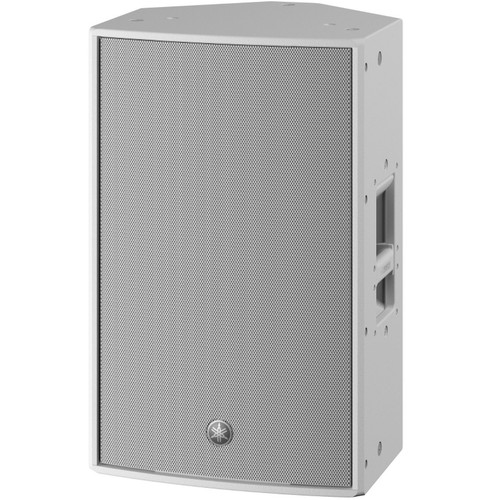

Yamaha CZR12W 12" 2-Way 800W Passive Loudspeaker with 90° x 60° Coverage - White

Description

Details

Yamaha CZR12W 12-Inch Passive White Loudspeaker

The CZR12W is a premium white 12" 2-way passive loudspeaker designed to deliver high output, excellent clarity, and impressive low-frequency performance in a compact, versatile enclosure. Its clean white finish makes it an ideal choice for modern venues, houses of worship, event spaces, and any installation where visual aesthetics matter as much as sonic performance. Yamaha’s Wide Dispersion Constant Directivity Waveguide Horn provides consistent 90° x 60° coverage with smooth, natural sound across the entire listening area.

Built from lightweight yet rugged plywood and coated with premium-grade Polyurea, the CZR12W is engineered to withstand demanding professional use, from live stages to fixed installations. With 800W program power handling, bi-amp capability, and a dual-angle pole socket, it adapts effortlessly to various configurations, including use as a floor monitor. A rotatable horn and optional U-brackets allow both horizontal and vertical mounting, giving you precise placement flexibility. The durable white cabinet ensures the CZR12W blends seamlessly into refined or architecturally sensitive spaces.

Features

Features

White 12" 2-way passive loudspeaker for live and installed sound
800W (PGM) power handling with bi-amp capability
Yamaha Wide Dispersion CD Waveguide Horn (90° x 60° coverage)
Lightweight plywood cabinet with premium white Polyurea coating
Rotatable horn for vertical or horizontal installation
Dual-angle pole socket for flexible positioning
Floor monitoring mode for stage use
Compatible with UB-DZR12H/V U-brackets for rigging
Optional protective cover (SPCVR-DZR12)
Durable white finish blends seamlessly into modern spaces

Specification

Speaker Type	2-way Speaker, Bass-reflex
Frequency Range (-10 dB)	Passive: 43 Hz - 20 kHz, Normal: 42 Hz - 20 kHz, FOH: 38 Hz - 20 kHz
Coverage Area	H90° x V60° Rotatable Constant Directivity Horn
Floor Monitor Angle	50° Symmetrical
Components	LF: 12" Cone, 3" Voice Coil, Neodymium magnet HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover	2.0 kHz
Power Rating	NOISE: Passive (EIA 426-A): 400W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W PGM: Passive (EIA 426-A): 800W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W Passive (EIA 426-A): 1600W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W
Nominal Impedance	Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
SPL	Sensitivity (1W; 1m on axis): Passive: 97 dB SPL, Bi-amp: LF: 97 dB SPL, HF: 108 dB SPL Peak (Calculated): Passive: 129 dB SPL, Bi-amp: LF: 129 dB SPL, HF: 131 dB SPL
I/O Connectors	SpeakON NL4MP x 2 (Parallel)
Handle	Aluminium die-cast, Side x 2
Pole Socket	35 mm x 2 (0° or -7°)
Finish	Plywood, Durable Polyurea coating, White
Dimensions (H x W x D)	25.4" (646 mm) x 16.1" (410 mm) x 15.5" (394 mm)
Weight	39.7 lbs (18 kg)
