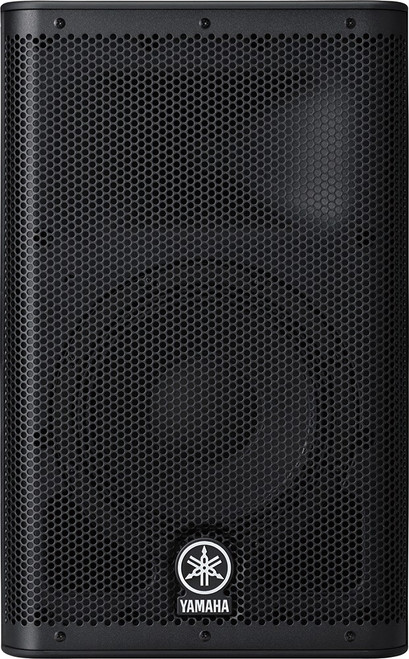

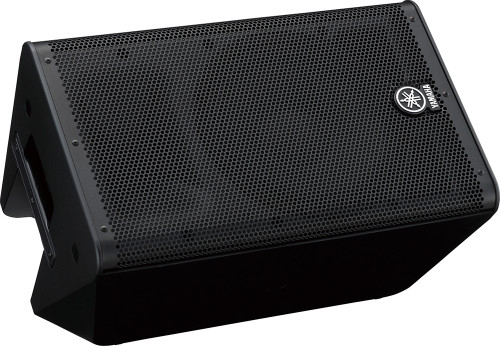

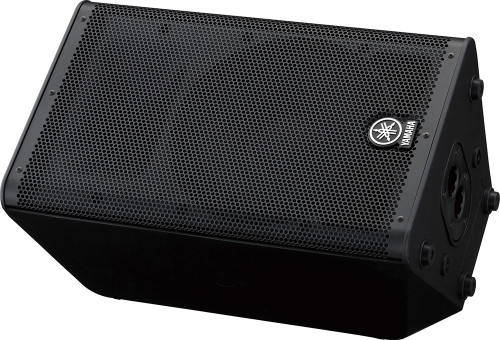

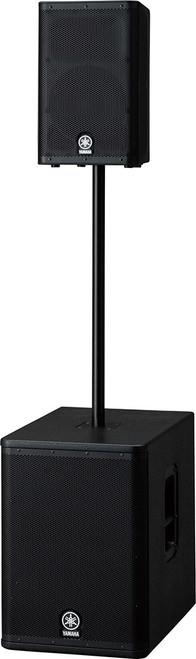

Yamaha DXR10 10" Active Speaker (Discontinued)

By Yamaha

Yamaha DXR10 10" Active Speaker (Discontinued)

Name: Yamaha DXR10 10" Active Speaker (Discontinued)
Brand: Yamaha
SKU: YAMAHA-DXR10
Price: 599.99 USD
Availability: OutOfStock

Write a Review

Part #:

DXR10

Model #:

DXR10

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha DXR10 10" Powered Speaker is portable and compact, it's functional design makes it ideal for a wide range of applications.

Description

The Yamaha DXR10 10" Powered Speaker will amaze you with it's clarity and depth. Housed in durable, compact ABS enclosures, the 10" DXR10 two-way speakers represent Yamaha's latest sound reinforcement technology. DXR10 speakers pack maximum performance into an efficient design that's perfect for the gigging musician that's on the go. And thanks to the built-in three-channel mixer, the DXR10 is perfect for those times when you need sound reinforcement but don't need an entire PA system. Whether you're playing pre-recorded music or performing for a crowd, you'll love the transparent sound of the Yamaha DXR10 powered loudspeakers.

Features

High-powered portable loudspeaker with multi-use flexibility
10" speaker, powered by 700W in a 2-way design
Built-in 3-channel mixer lets you connect microphones or line-level sources directly without an entire PA system
Built-in DSP for phase optimization and transparent dynamic control
ABS cabinet is durable with a low-resonance design for maximum sound quality

Specifications

Speaker type	10" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency Range (-10dB)	56Hz - 20kHz
Nominal coverage (H x V)	90° x 60°
Components (LF)	Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
Components (HF)	Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Crossover	FIR-X tuning™ (linear phase FIR filter)
Output power	Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis)	131dB SPL
I/O connectors	INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 , LINK OUT: XLR x 1
Processors	D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements	100V - 240V, 50Hz/60Hz
Power consumption	90W
Flying and mounting hardware	Top x 2, Rear x 1 (Fits for M8 x 15mm eyebolts)
Pole socket	35mm with 2-way features (0 or 7 degrees)
Accessories	UB-DXR10 (U-barcket)
Material	ABS (Matte Finish, Black)
Dimensions (H x W x D)	19 6/8" (502 mm) x 12" (305 mm) x 12 2/8" (310 mm)
Weight	32.2 lbs (14.6 kg)
