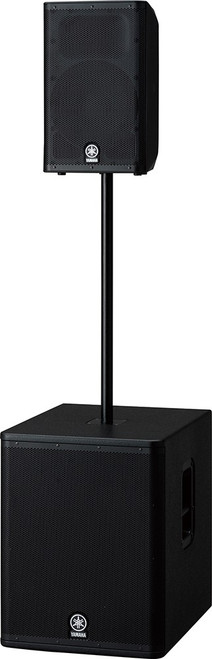

The Yamaha DXR8 8" Powered Speaker is the most compact of the DXR Series speakers, the DXR8 makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 subwoofer gives you an ultra-compact high-power SR system.
Performance runs in the family, and like the acclaimed DSR Series, DXR Series loudspeakers offer superb high-definition sound and class-leading sound pressure levels—yet in a more compact and extremely functional design that provides a level of versatility unmatched by any speaker in its class today. The DXR Series is comprised of four full-range models perfectly suited for front-of-house sound, monitors, simple amplification, rigged applications and more. Combining the series with our DXS subwoofers will further elevate your system’s performance, giving you versatile control of its thunderous bottom end. With the perfect balance of raw power and innovative speaker technologies, you can depend on DXR Series speakers to deliver the full power of your performance to every member of your audience.
| Speaker Type | 8" 2-way, Bi-amp powered speaker, Bass-reflex type |
|---|---|
| Frequency Range (-10dB) | 57Hz - 20kHz |
| Nominal Coverage (H x V) | 90° x 60° |
| Components (LF) | Diameter: 8" cone, Voice Coil: 2", Magnet: Ferrite |
| Components (HF) | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Crossover | FIR-X tuning™ (linear phase FIR filter) |
| Output Power | Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
| Maximum Output Level (1m; on axis) | 129dB SPL |
| I/O Connectors | INPUT: XLR-3-31 x1, INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1, LINK OUT: XLR x 1 |
| Processors | D-CONTOUR :FOH / MAIN, MONITOR, OFF |
| Power Requirements | 100V - 240V, 50Hz/60Hz |
| Power Consumption | 90W |
| Flying and Mounting Hardware | Top x 2, Rear x 1 (Fits for M8 x 15 mm eyebolts) |
| Pole Socket | 35 mm with 2-way features (0 or 7 degrees) |
| Accessories | UB-DXR8 (U-bracket) |
| Material | ABS (Matte Finish, Black) |
| Dimensions (H x W x D) | 18" (458 mm) x 11" (280 mm) x 11" (280 mm) |
| Weight | 29.8 lbs (13.5 kg) |
