Yamaha DXR10 10" Active Speaker (Discontinued)
Usually arrives in 5-9 business days.

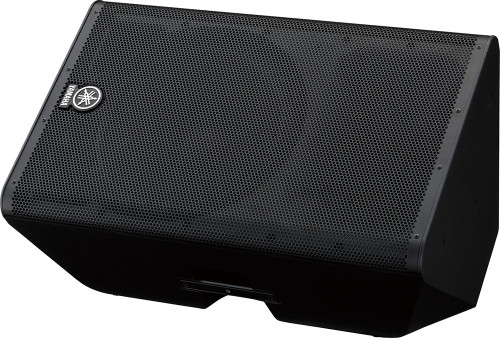

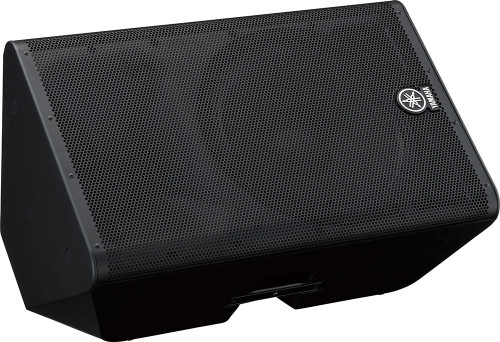

The Yamaha DXR15 15" Powered Speaker is portable and compact, it's functional design makes it ideal for a wide range of applications.
The 15" DXR15 two-way speakers represent Yamaha's latest sound reinforcement technology. DXR15 speakers pack maximum performance into an efficient design that's perfect for the gigging musician that's on the go. And thanks to the built-in three-channel mixer, the DXR15 is perfect for those times when you need sound reinforcement but don't need an entire PA system. Whether you're playing pre-recorded music or performing for a crowd, you'll love the transparent sound of the Yamaha DXR15 powered loudspeakers.
The Yamaha DXR15 employs a 700W RMS Class D amplifier to serve up vibrant, dynamic sound reinforcement. The DXR15 is bi-amped, with a full 600 watts for the LF driver and 100 watts for the HF driver. The high wattage doesn't just let the DXR15 get loud, it gives it the headroom needed to reproduce the dynamics and nuances in your music. And thanks to the ultra-lightweight Class D amplifier, the DXR15's big sound is still convenient to transport.
While a pair of DXR15 powered loudspeakers makes a great sound system, especially when paired with a Yamaha DXS subwoofer, what about those situations where you just need a little bit of reinforcement without an entire sound system? Just turn the DXR15 around, and connect up to three microphones or line-level signals for instant amplification. The versatile nature of the DXR15 makes it the ideal loudspeaker for solo musicians, as well as schools and houses of worship that need a flexible sound system for multiple applications.
| Speaker Type | 15" 2-way, Bi-amp powered speaker, Bass-reflex type |
|---|---|
| Frequency Range (-10 dB) | 49Hz - 20kHz |
| Nominal Coverage (H x V) | 90° x 60° |
| Components (LF) | Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite |
| Components (HF) | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Crossover | FIR-X tuning™ (linear phase FIR filter) |
| Output Power | Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
| Maximum Output Level (1m; on axis) | 133dB SPL |
| I/O Connectors | INPUT: XLR-3-31 x1 , INPUT 2: Phone x2, INPUT 3: RCA PIN x 2, THRU: XLR 3-32 x 1, LINK OUT: XLR x 1 |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Power Requirements | 100V - 240V, 50Hz/60Hz |
| Power Consumption | 110W |

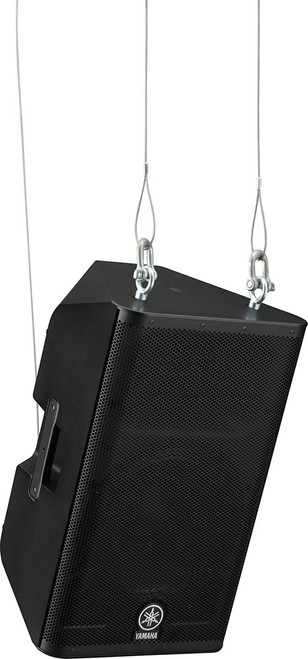

| Flying and Mounting Hardware | Top x 2, Rear x 1 (Fits for M8 x 15 mm eyebolts) |
| Pole Socket | 35 mm with 2-way features (0 or 7 degrees) |

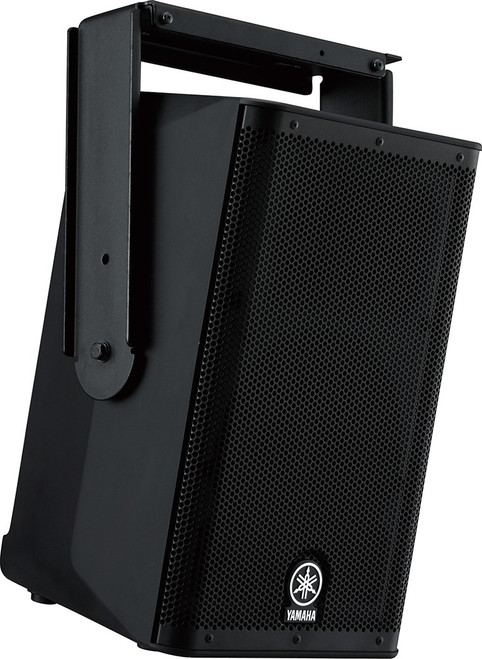

| Accessories | UB-DXR15 (U-bracket) |
| Material | ABS (Matte Finish, Black) |
| Dimensions (H x W x D) | 27.5" (700 mm) x 17.5" (445 mm) x 15" (380 mm) |
| Weight | 49.6 lbs (22.5 kg) |
