Yamaha DXR12 12" 700W Active Speaker (Discontinued)
Write a Review

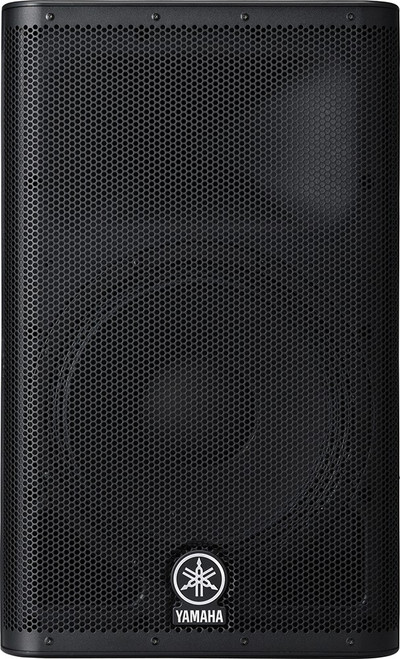

Yamaha DXR12 12" 700W Active Speaker (Discontinued)
Part #:
DXR12-CA
Model #:
DXR12
Availability:
No Longer Available
Contact us for comparable solutions.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
The Yamaha DXR12 12" powered speakers will amaze you with its clarity and depth. Housed in durable, compact ABS enclosures, the 12" DXR12 extremely high powered loudspeakers are capable of producing a maximum SPL of 132dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high resolution sound. DXR12 speakers pack maximum performance into an efficient design that's perfect for the gigging musician that's on the go. And thanks to the built-in three-channel mixer, the DXR12 is perfect for those times when you need sound reinforcement but don't need an entire PA system. Whether you're playing pre-recorded music or performing for a crowd, you'll love the transparent sound of the Yamaha DXR12 powered loudspeakers.
Features
- High-powered portable loudspeaker with multi-use flexibility
- 12" speaker, powered by 700W in a 2-way design
- Built-in 3-channel mixer lets you connect microphones or line-level sources directly without an entire PA system
- Built-in DSP for phase optimization and transparent dynamic control
- ABS cabinet is durable with a low-resonance design for maximum sound quality
Specifications
| Speaker Type | 12" 2-way, Bi-amp powered speaker, Bass-reflex type |
|---|---|
| Frequency Range (-10 dB) | 52Hz - 20kHz |
| Nominal Coverage (H x V) | 90° x 60° |
| Components (LF) | Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite |
| Components (HF) | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Crossover | FIR-X tuning™ (linear phase FIR filter) |
| Output Power | Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
| Maximum Output Level (1m; on axis) | 132dB SPL |
| I/O Connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1, LINK OUT: XLR x 1 |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Power Requirements | 100V - 240V, 50Hz/60 Hz |
| Power Consumption | 110W |
| Flying and Mounting Hardware | Top x 2, Rear x 1 (Fits for M10 x 18 mm eyebolts) |
| Pole Socket | 35 mm with 2-way features (0 or 7 degrees) |
| Accessories | UB-DXR12 (U-bracket) Not Included |
| Material | ABS (Matte Finish, Black) |
| Dimensions (H x W x D) | 23.63" (601 mm) x 14.25" (362 mm) x 13.75" (350 mm) |
| Weight | 42.5 lbs (19.3 kg) |
