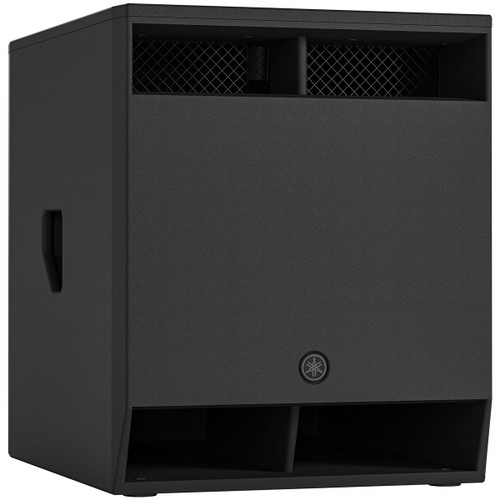

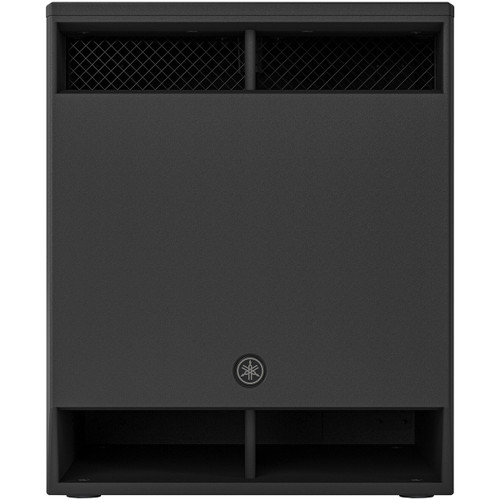

Yamaha DXS18 mk3 18-Inch 2500W Powered Subwoofer

The DXS18 mk3 is the flagship model in Yamaha's latest DXS series, engineered to deliver the deepest and most powerful low-frequency performance in the lineup. Featuring an 18-inch high-durability woofer with a 4-inch voice coil and a high-efficiency 2500W Class-D amplifier, it produces exceptional bass output with a maximum SPL of 134 dB. This makes it the ideal choice for large-scale live sound, DJ performances, and venues that demand maximum low-end impact.

Its advanced bandpass cabinet design enhances bass efficiency while minimizing unwanted resonance and cabinet noise, resulting in tight, clean, and powerful low frequencies. Built-in D-XSUB processing allows the system to extend bass response down to an impressive 32 Hz, while flexible DSP crossover settings ensure seamless integration with full-range speakers such as the DXR mk3 series.

For optimized stage performance, the DXS18 mk3 includes a cardioid mode that reduces low-frequency buildup behind the subwoofer, improving clarity and control in live environments. Constructed from durable plywood for superior acoustic performance, it also features dual pole sockets (M20 and 35 mm) and optional accessories such as wheels and protective covers, making it a robust and versatile solution for both touring and installed audio systems.

Features

Features

18" high-output woofer with 4" voice coil for ultra-deep bass performance
2500W Class-D amplifier delivers maximum low-frequency power
Up to 134 dB SPL for large-scale live sound and venue applications
D-XSUB processing extends bass response down to 32 Hz
Advanced DSP with flexible crossover settings for system optimization
Cardioid mode reduces stage bass buildup for improved clarity
Optimized bandpass cabinet minimizes distortion and unwanted resonance
Durable plywood enclosure for superior acoustic performance and reliability
Dual pole sockets (M20 and 35 mm) for mounting full-range speakers
Seamless integration with Yamaha DXR mk3 series loudspeakers
Ideal for DJs, live sound, touring, and large venue installations
Optional speaker wheels for enhanced portability
Optional protective cover for transport and storage

Specification

Speaker Type	Powered Subwoofer, Band-pass
Frequency range (-10 dB)	32 Hz - 120 Hz
Maximum Output Level	134 dB SPL (Measured peak, IEC noise @ 1 m)
Components	LF: Diameter: 18" cone, Voice Coil: 4" Class-D
Power Rating	PEAK: 2500W, RMS: 1250W
Cooling	Fan Cooling, 5 Speeds
Power Consumption	130W (1/8 power), 40W (Idle)
Power Requirements	100V - 240V 50/60 Hz
A/D D/A Converters	32 bit/96 kHz Sampling
Processors	HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: NORMAL, XTENDED LF
Inputs	INPUT1 & 2: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu
Outputs	OUTPUT1 & 2: XLR3-32 THRU or DSP OUT
Bluetooth	Ver. 5.0, A2DP (SBC, AAC), Class 1
Control and Others	D-Remote (iOS/Android app)
Finish	Durable Polyurea Painting, Black
Handle	Side x2
Pole Socket	Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Dimensions (H x W x D)	26.9" (683 mm) x 22.2" (563 mm) x 28.4" (721 mm)
Weight	112.4 lbs (51 kg)
