Yamaha DZR10W 10-inch 2-Way 2000W Bi-Amplified Powered Loudspeaker

Home /
Live Sound Equipment /
PA Speakers /
Active Powered Speakers /
Yamaha DZR10W 10" 2-Way 2000W Bi-Amplified Powered Loudspeaker - White

Description

Details

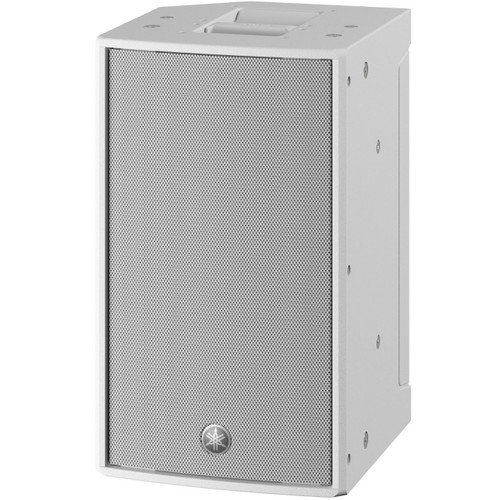

Yamaha DZR10W 10-Inch Powered White Loudspeaker

The DZR10W delivers professional sound performance in a compact, lightweight design. This white 10-inch 2-way bi-amplified powered loudspeaker produces a maximum 137 dB SPL and a wide 44 Hz to 20 kHz frequency range, offering superb clarity and exceptional low-frequency reproduction. With its best-in-class SPL and sophisticated DSP processing, the DZR10W ensures pristine audio for live events, touring, and installed systems.

Equipped with a 2000W Class-D amplifier, the DZR10W integrates advanced 96 kHz DSP with FIR filters for high-resolution sound and minimal latency. Advanced FIR-X tuning and D-Contour processing provide optimal phase coherence and tonal balance, while robust protection circuits safeguard the speaker under high-output conditions. The intuitive LCD interface allows precise adjustment of PEQ, delay, and routing for complete control over your sound.

Designed for flexibility, the DZR10W features a rotatable horn, floor monitor setting, and multiple rigging options with U-brackets. Its durable white Polyurea-coated plywood cabinet ensures reliability and longevity, while the optional SPCVR-DZR10 speaker cover provides additional protection during transport or storage. This versatile loudspeaker combines power, clarity, and durability for professional applications where performance matters most.

Features

Features

White 10" 2-way bi-amplified powered loudspeaker
2000W Class-D amplifier module for high-output performance
Maximum 137 dB SPL with 44 Hz to 20 kHz frequency range
96 kHz DSP with FIR filters for high-resolution sound
Advanced FIR-X tuning for minimized phase distortion
D-Contour processing and reliable protection circuits
Rotatable horn and flexible U-bracket mounting options
Floor monitor capability
Lightweight yet rugged white Polyurea-coated cabinet
Optional SPCVR-DZR10 protective speaker cover
Precise DSP control via intuitive LCD interface
Ideal for live sound, touring, and installed applications

Specification

Speaker Type	2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10 dB)	44 Hz - 20 kHz
Coverage Area	H90° x V60° (Rotatable)
Components	LF: 10" Cone, 3" Voice Coil, Neodymium magnet HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover	1.8 kHz (FIR-X)
Sampling Frequency Rate	Internal: 96 kHz and FIR Filter
A/D D/A Converters	96 kHz AD/DA
Maximum Output Level (1 m; on axis)	137 dB SPL
Power Rating	Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W) Continuous: 950W (LF: 850W, MF/HF: 100W)
I/O Connectors	Analog IN: Combo x 2, Line level (Maximum +24 dBu), Input impedance 20 kΩ Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
Amplifier Class	Class-D
Cooling	Fan cooling, Variable speeds
Power Consumption	45W (Idle), 150W (1/8)
Handle	Aluminium die-cast, Top x 1, Side x 1
Rigging	M10 x 8, M8 x 2
Dimensions (H x W x D)	21.1" (537 mm) x 12.4" (537 mm) x 13.6" (345 mm)
Weight	39.5 lbs (17.9 kg)
