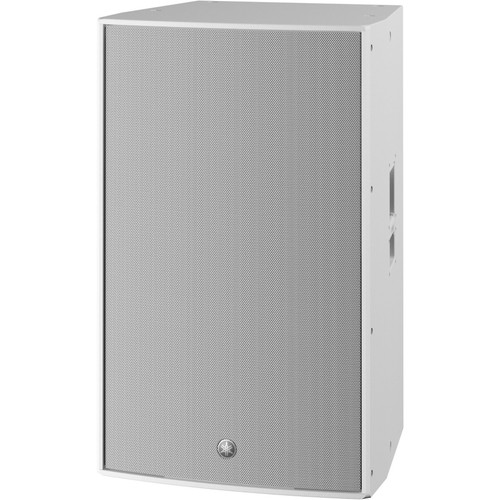

Yamaha DZR315-DW 15-Inch Dante-Enabled White Loudspeaker

The DZR315-DW is a high-performance 3-way bi-amped powered loudspeaker and the most powerful model in the DZR Series. Finished in sleek white, it produces an impressive maximum SPL of 143 dB with exceptional clarity, making it ideal for front-of-house main PA applications. Its 2" high-frequency, 8" mid-frequency, and 15" low-frequency drivers deliver full-range, professional-quality audio with precise low-end and dynamic range.

Equipped with advanced 96 kHz DSP processing and FIR-X tuning, the DZR315-DW ensures phase-coherent, high-resolution sound with minimal latency. The intuitive LCD display provides easy access to DSP functions, presets, PEQ, delay, and routing, while D-Contour multi-band compression and reliable protection circuitry guarantee consistent, safe operation even at peak output.

Housed in a rugged yet lightweight plywood cabinet with premium Polyurea coating, the DZR315-DW is built to withstand demanding professional use. Integrated M10 rigging points and optional accessories, such as a protective cover (SPCVR-DZR315), provide versatile deployment for both portable and installed setups. Whether suspended or ground-stacked, the DZR315-DW delivers the uncompromising power and fidelity expected from Yamaha's flagship DZR series.

Features

Features

White 3-way bi-amped powered loudspeaker with 2" HF, 8" MF, and 15" LF drivers
Maximum 143 dB SPL and 31 Hz to 20 kHz frequency range ideal for FOH main PA
High-power 2000W Class-D amplifier module
96 kHz DSP and FIR-X tuning for high-resolution, phase-coherent sound
Dante I/O (2in/2out) with SRC for 48 kHz device compatibility
Intuitive LCD display for DSP control, presets, PEQ, delay, and routing
D-Contour processing and highly reliable protection circuitry
Integrated M10 rigging points for suspended applications
Lightweight yet rugged plywood cabinet with premium Polyurea coating
Optional protective cover (SPCVR-DZR315)

Specification

Speaker Type	3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency Range (-10 dB)	31 Hz - 20 kHz
Coverage Area	H75° x V50°
Components	LF: 15" Cone, 3" Voice Coil, Neodymium magnet MF: 8" Cone, 1.5" Voice Coil, Ferrite magnet HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover	700 Hz (FIR-X), 2.5 kHz (Passive)
Sampling Frequency Rate	Internal: 96 kHz and FIR Filter
A/D D/A Converters	96 kHz AD/DA
Maximum Output Level (1 m; on axis)	143 dB SPL
SRC	Yes
Power Rating	Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W) Continuous: 950W (LF: 850W, MF/HF: 100W)
I/O Connectors	Analog IN: Combo x 2, Line level (Maximum +24 dBu), Input impedance 20 kΩ Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O	Dante: etherCON CAT5e x 2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
AC	IEC AC inlet x 1 (V-Lock)
Amplifier Class	Class-D
Cooling	Fan cooling, Variable speeds
Power Consumption	45W (Idle), 150W (1/8)
Handle	Aluminium die-cast, Side x 2
Rigging	M10 x 16
Finish	Plywood, Durable Polyurea Painting, White
Dimensions (H x W x D)	35.3" (897 mm) x 21.6" (550 mm) x 20.5" (520 mm)
Weight	91.7 lbs (41.6 kg)
