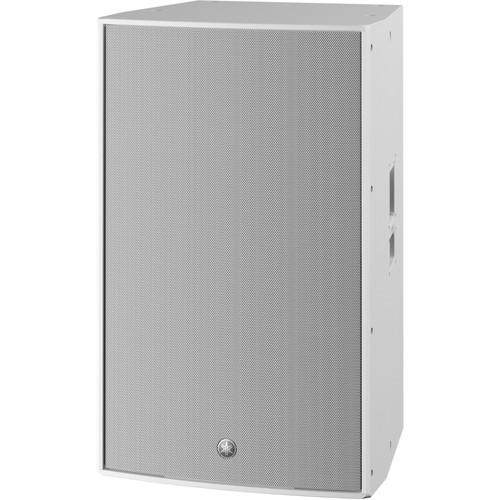

Yamaha DZR315W 15-Inch Powered White Loudspeaker

The DZR315W is the most powerful model in the DZR Series, offering a white 3-way bi-amplified design with a 2" high-frequency, 8" mid-frequency, and 15" low-frequency driver. It produces a maximum 143 dB SPL with outstanding clarity, delivering full-range professional sound with deep, precise low-end. Perfect for front-of-house main PA applications, the DZR315W combines impressive power with a compact, lightweight design.

Equipped with advanced 96 kHz DSP and FIR-X tuning, the DZR315W ensures high-resolution, phase-coherent audio with minimal latency. The intuitive LCD display provides easy access to DSP functions, presets, PEQ, delay, and routing, while D-Contour multi-band processing and reliable protection circuits guarantee consistent performance even at peak output levels.

Housed in a rugged plywood cabinet coated with premium Polyurea, the DZR315W is built for professional use and durability. Integrated M10 rigging points and optional accessories, such as the SPCVR-DZR315 cover, provide versatile deployment options. Whether suspended or floor-stacked, the DZR315W delivers the power, clarity, and reliability expected from Yamaha’s flagship DZR series.

Features

Features

White 3-way bi-amplified powered loudspeaker with 2" HF, 8" MF, and 15" LF drivers
Maximum 143 dB SPL and 31 Hz to 20 kHz frequency range ideal for FOH main PA
High-power 2000W Class-D amplifier module
96 kHz DSP and FIR-X tuning for high-resolution, phase-coherent sound
Intuitive LCD display for DSP control, presets, PEQ, delay, and routing
D-Contour multi-band processing and reliable protection circuitry
Integrated M10 rigging points for suspended applications
Lightweight yet rugged plywood cabinet with premium Polyurea coating
Optional protective cover (SPCVR-DZR315)

Specification

Speaker Type	3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency Range (-10 dB)	31 Hz - 20 kHz
Coverage Area	H75° x V50°
Components	LF: 15" Cone, 3" Voice Coil, Neodymium magnet MF: 8" Cone, 1.5" Voice Coil, Ferrite magnet HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover	700 Hz (FIR-X), 2.5 kHz (Passive)
Sampling Frequency Rate	Internal: 96 kHz and FIR Filter
A/D D/A Converters	96 kHz AD/DA
Maximum Output Level (1 m; on axis)	143 dB SPL
Power Rating	Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W) Continuous: 950W (LF: 850W, MF/HF: 100W)
I/O Connectors	Analog IN: Combo x 2, Line level (Maximum +24 dBu), Input impedance 20 kΩ Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
AC	IEC AC inlet x 1 (V-Lock)
Amplifier Class	Class-D
Cooling	Fan cooling, Variable speeds
Power Consumption	45W (Idle), 150W (1/8)
Handle	Aluminium die-cast, Side x 2
Rigging	M10 x 16
Finish	Plywood, Durable Polyurea Painting, White
Dimensions (H x W x D)	35.3" (897 mm) x 21.6" (550 mm) x 20.5" (520 mm)
Weight	91.7 lbs (41.6 kg)
