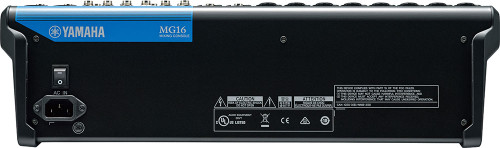

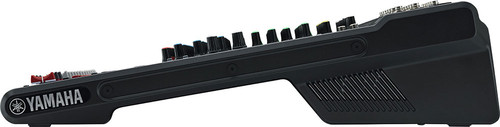

Yamaha MG16 16-Channel Mixing Console

Part #:
MG16
Model #:
MG16
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Yamaha MG16 16 Channel Analog Mixer is well-suited for portable rigs or permanent installations.

Description

Feature-rich and delivering outstanding sound quality, the Yamaha MG16 analog mixer is well-suited for portable rigs or permanent installations. The MG16's quality op-amp ensures that your mix sounds transparent and articulate. The MG16's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG16 can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG16 is ready to work for you!

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

Features

  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis

Specifications

I/O Phantom power: +48 V
Input Channels Mono [MIC/LINE]: 8, Mono/Stereo [MIC/LINE]: 2, Stereo [LINE]: 2
Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4
Bus Stereo: 1, GROUP: 4, AUX: 4
Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1
COMP Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150 ohm, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 30 W
Others Operating Temperature: 0 to +40 degrees celcius
Dimensions (H x W x D) 5.1" (130 mm) x 17.5" (444 mm) x 19.7" (500 mm)
Net weight 14.6 lbs (6.6 kg)
