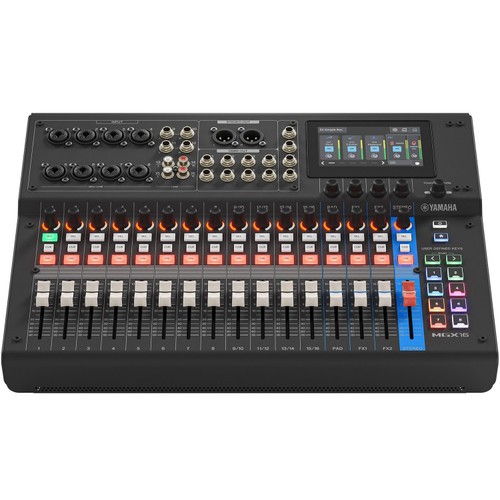

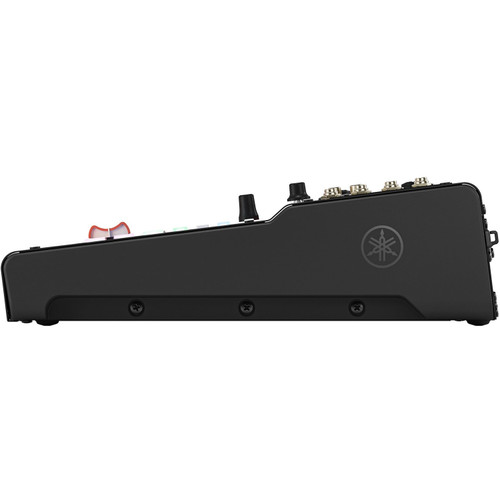

Yamaha MGX16 22-Channel Digital Mixing Console
The MGX16 is a professional 22-channel digital mixing console designed to deliver exceptional sound quality, flexible connectivity, and intuitive operation for live sound, recording, houses of worship, corporate events, and content production. Finished in black, the MGX16 features a streamlined 15 + 1 fader layout, a responsive 4.3-inch touchscreen display, and five dedicated control knobs for fast access to essential mixing functions. Its versatile channel configuration includes 8 mono inputs, 4 stereo inputs, a Sound Pad channel, and 2 FX returns, providing ample capacity for microphones, instruments, playback devices, and other audio sources.
Built for modern production environments, the MGX16 offers extensive connectivity with 8 combo mic/line inputs, 4 TRS line inputs, 4 RCA inputs, 2 XLR outputs, 8 TRS outputs, and 4 headphone outputs. The integrated USB audio interface supports 22x22 channels of high-resolution audio at up to 32-bit/96 kHz, making it ideal for multitrack recording, playback, and computer-based production workflows. Additional recording flexibility is provided through onboard microSD support, enabling up to 16-track recording and 2-track playback without requiring external hardware. Bluetooth 5.0 audio input allows convenient wireless playback from compatible mobile devices and computers.
The MGX16 incorporates powerful onboard DSP processing for professional sound shaping and low-latency monitoring. Advanced tools include EQ, compression, effects processing, and scene management, while user-friendly features such as Auto Gain, Clip Safe, Scene Recall, and selectable Simple or Standard operating modes help streamline setup and operation. Combining advanced digital mixing capabilities, high-channel-count USB audio, onboard recording, and a compact footprint, the Yamaha MGX16 is a versatile solution for demanding audio applications.
