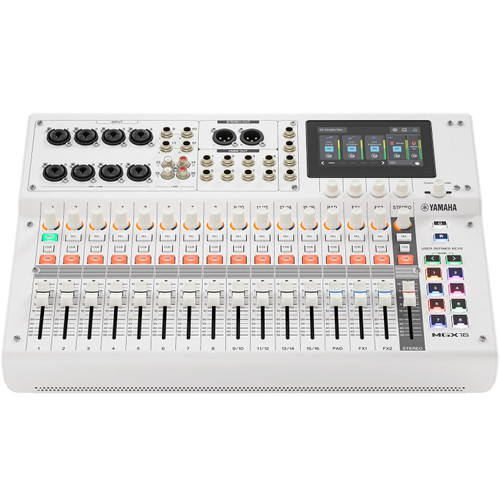

Yamaha MGX16 22-Channel Digital Mixing Console
The MGX16 is a versatile 22-channel digital mixing console designed for live sound, recording, streaming, worship services, corporate events, and professional content production. Finished in white, the MGX16 combines a sleek modern appearance with powerful audio capabilities, featuring a 15 + 1 non-motorized fader layout, a responsive 4.3-inch touchscreen display, and dedicated rotary controls for fast, intuitive operation. Its flexible channel configuration includes 8 mono inputs, 4 stereo inputs, a Sound Pad channel, and 2 FX returns, providing ample connectivity for microphones, instruments, media players, and other audio sources.
Built to support modern production workflows, the MGX16 includes a high-performance 22x22 USB audio interface capable of recording and playback at up to 32-bit/96 kHz. The console offers extensive connectivity with 8 combo mic/line inputs, 4 TRS line inputs, 4 RCA inputs, 2 XLR outputs, 8 TRS outputs, and 4 headphone outputs. Integrated microSD recording supports up to 16-track recording and 2-track playback without the need for an external computer, while Bluetooth 5.0 audio input allows convenient wireless playback from compatible mobile devices and computers.
Powerful onboard DSP processing provides professional-grade sound shaping and low-latency monitoring with tools including gate, compressor, EQ, Sweet Spot Morphing Channel Strip, guitar amp simulation, pitch correction, ducking, multi-band compression, delay, and REV-X reverb. User-friendly features such as Auto Gain, Clip Safe, Scene Recall, and selectable Simple or Standard operating modes help streamline setup and operation. Combining advanced digital mixing, multi-track recording, extensive DSP, and an elegant white finish, the Yamaha MGX16 is an ideal solution for demanding audio production environments.
