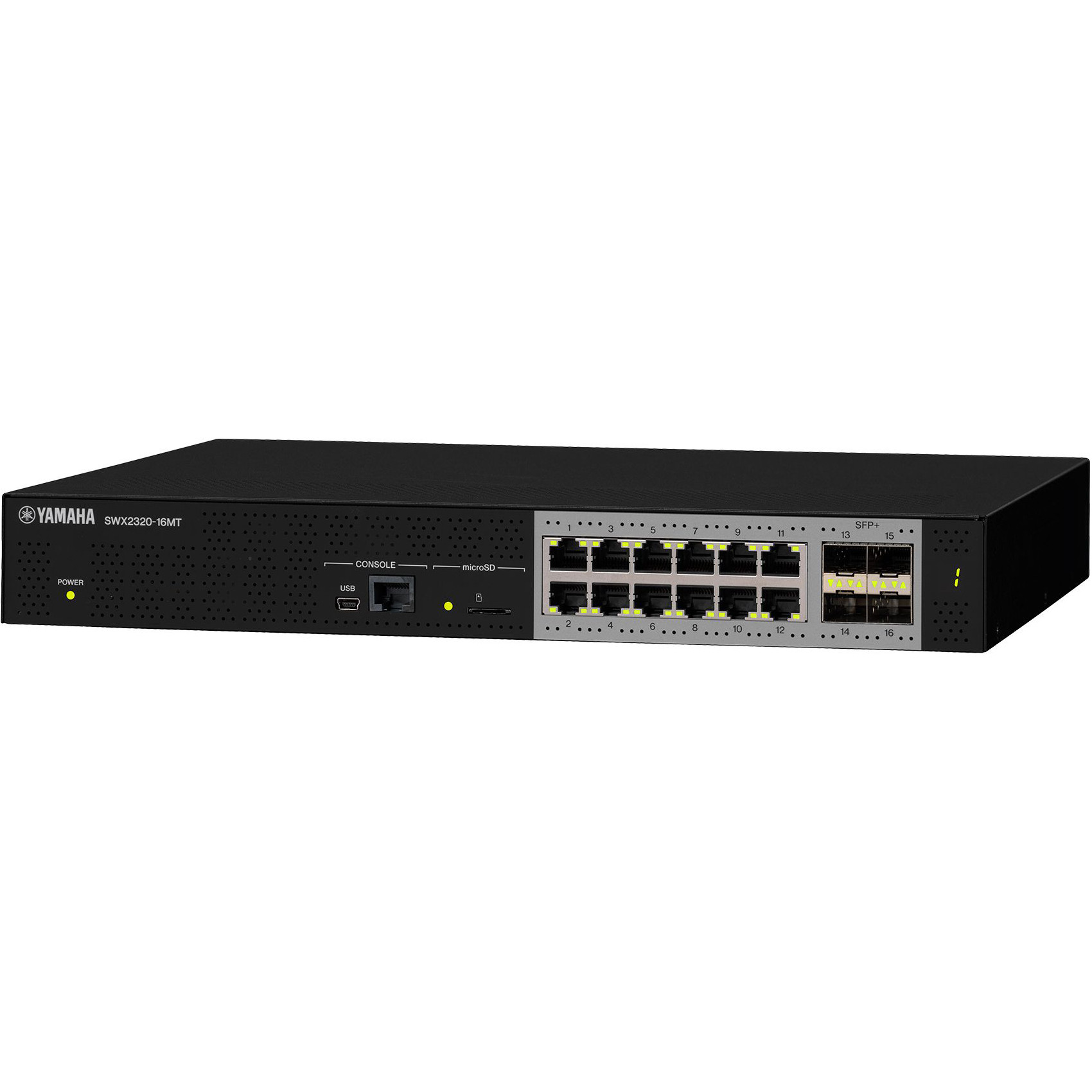

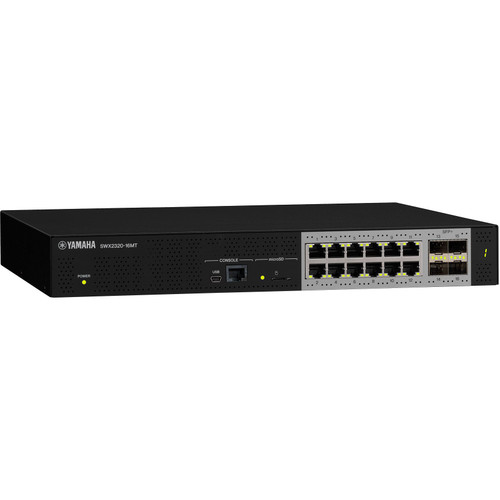

Yamaha SWX2320-16MT 16-Port Multi-Gigabit Intelligent Network Switch

The SWX2320-16MT is a high-performance Intelligent L2 Multi-Gigabit network switch designed for modern enterprise and industrial networks. With 12 multi-gigabit ports supporting 100M/1G/2.5G/5G/10G speeds and 4 SFP+ ports, it ensures flexible and high-speed connectivity for all network devices.

Equipped with a built-in RADIUS server, the SWX2320-16MT provides advanced security management, allowing centralized control of network access. It also supports PTPv2 Transparent Clock (TC), ideal for applications that require precise timing and synchronization, such as audio, video, and industrial systems.

The switch integrates seamlessly with Yamaha LAN Monitor, enabling easy monitoring and management of your network. Its compact design, robust performance, and comprehensive features make it a reliable choice for businesses and professional environments that demand speed, security, and scalability.

Features

Features

16-port Intelligent L2 network switch
12 multi-gigabit ports (100M/1G/2.5G/5G/10G) + 4 SFP+ ports
Built-in RADIUS server for advanced security
Supports PTPv2 Transparent Clock (TC) for precise timing
Compatible with the Yamaha LAN Monitor for easy management
High-performance switch for enterprise, industrial, and AV networks
Flexible port configuration for multi-speed connectivity
Compact design with reliable, scalable performance

Specification

LAN Ports	Standard: IEEE 802.3 (100BASE-TX/1000BASE-T/2.5GBASE-T/5GBASE-T/10GBASE-T) Number of Ports: 12 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight
SFP+ Ports	Standard: IEEE 802.3z (1000BASE-SX/1000BASE-LX), IEEE 802.3ae (10GBASE-SR/10GBASE-LR) Number of Ports: 4
Console Ports	Standard: RS-232C, USB 2.0 Connector Type: RJ-45, USB mini-B (5-pin) Data Transmission Speed: 9600 (initial value)/19200/38400/57600/115200 bit/s
Performance	Switching Bandwidth: 320 Gbit/s Forwarding Rate: 238.10 Mpps Flame Buffer: 3 MB
microSD Slot	Standard: microSD/microSDHC File System: FAT/FAT32
Indicators	POWER, microSD, LINK/ACT, SPEED, Stack ID
MAC Address	Indicated in product label on top panel of unit
Operating Environment	Ambient temperature: 0 - 50 °C, Ambient humidity: 15 - 80 % (non-condensing)
Storage Environment	Ambient temperature: -20-60˚C, Ambient humidity 10–90% (non-condensing)
Power Supply Voltage, Frequency	AC100 - 240V, 50/60 Hz
Maximum Power Consumption	84W
Accessories	Owner's manual, power cord, power cord clamp, legs, 19-inch rack mount hardware and screws, Wall mount hardware and screws
Dimensions (H x W x D)	1.73" (44 mm) x 13" (330 mm) x 9.8" (250 mm)
Weight	5.7 lbs (2.6 kg)
