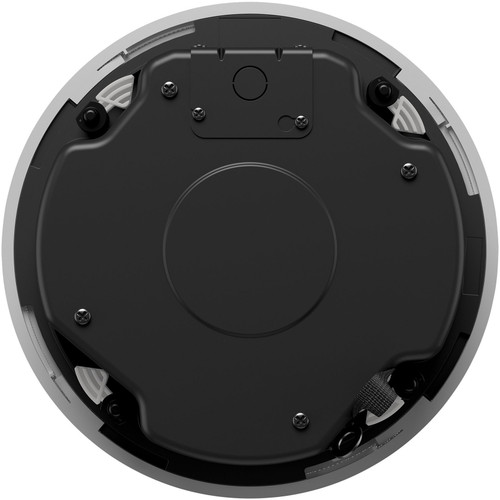

Yamaha VC8 8" 2-Way Coaxial Ceiling Speaker with 110° Coverage - White

Part #:
VC8W
Model #:
VC8
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Yamaha VC8 is an 8" 2-way coaxial ceiling speaker with 110° coverage. Its low-profile white design, 16Ω/70V-100V compatibility, and paintable magnetic grille make it ideal for commercial BGM and voice applications.

Description

Yamaha VC8 8-Inch 2-Way White Coaxial Ceiling Speaker

The VC8 8" ceiling speaker in white delivers professional-grade audio at an affordable price, making it perfect for commercial installations. Its coaxial 8" woofer and 0.8" tweeter provide clear, balanced sound optimized for background music and voice, with a wide 110° coverage angle to fill rooms evenly.

Featuring a low-profile white design, the VC8 fits seamlessly into modern ceilings while accommodating spaces with limited depth. Large mounting clamps with non-slip treads and double-threaded screws make installation fast, secure, and reliable. The paintable white magnetic grille allows for aesthetic customization, blending the speaker into ceilings for a clean, professional appearance.

Supporting 16-ohm low-impedance and 70V/100V high-impedance systems, the VC8 gives integrators flexibility in multi-speaker configurations. Lightweight and easy to install, the VC8 is ideal for offices, retail environments, hospitality venues, educational facilities, and other commercial applications requiring high-quality ceiling audio.

Features

  • 8" 2-way coaxial ceiling speaker with 0.8" tweeter
  • Wide 110° coverage for smooth, even sound distribution
  • Low-profile white design fits limited ceiling spaces
  • Supports 16Ω low-impedance and 70V/100V high-impedance systems
  • Optimized for BGM and voice reproduction
  • Paintable white magnetic grille for seamless ceiling integration

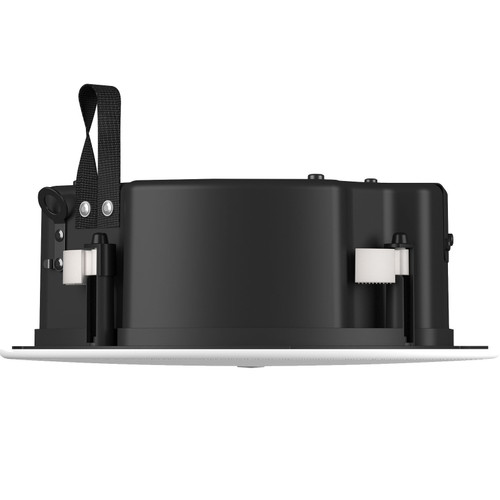

  • Quick and secure installation with large non-slip mounting clamps
  • Double-threaded clamp screws for fast, reliable tightening
  • Lightweight and compact for easy installation
  • Single-unit package for scalable system design
  • Suitable for commercial, office, retail, hospitality, and education spaces

Specifications

System Type 2-way Coaxial type, Acoustic Suspension
LF Driver 8" Cone
HF Driver 1" Soft dome
Frequency Range (-10 dB) 96 Hz - 20 kHz
Coverage Angle (H x V) 110° conical
Nominal Impedance 16Ω
Transformar Taps 70V: 12W, 6W, 3W, 1.5W
100V: 12W, 6W, 3W
Power Rating NOISE: 25W, PGM: 50W, MAX: 100W
Sensitivity (1W, 1m) 91 dB SPL
Maximum SPL 111 dB SPL
Connectors 1 x Euroblock (4 pin) (input: +/-, loop-thru: +/-)
Material, Finish, Color VC8W: White (approx. Munsell N9.3)
Packaging Single
Certificate UL1480, UL2043, NFPA70, CE, RoHS
Required Ceiling Board Thickness 2 mm - 37 mm
Dimensions (Dia x D) 12.80" (325 mm) x 4.80" (122 mm)
Weight 9.3 lbs (4.2 kg)
