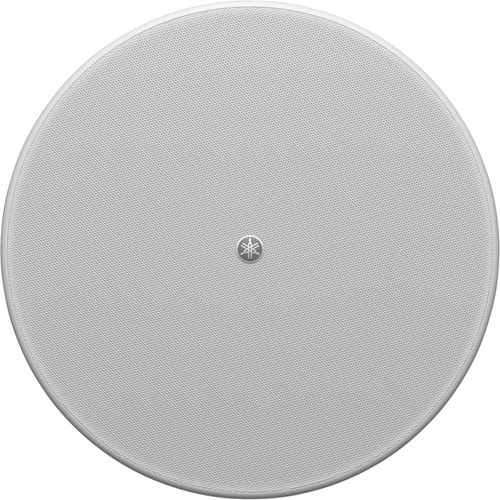

The Yamaha VC8N is an 8" 2-way coaxial ceiling speaker in a clean white finish, featuring a no back can, low-profile design for tight spaces. It delivers premium BGM and clear voice reproduction with wide 110° coverage and flexible low-Z or 70V/100V operation.

Description

Yamaha VC8N 8-Inch 2-Way White Coaxial Ceiling Speaker

The VC8N 8" 2-way coaxial ceiling speaker in white delivers high-quality sound at a cost-effective price, making it a strong choice for commercial spaces that want premium performance without exceeding budget. Its acoustic design offers detailed background music and clear speech reproduction, ideal for retail stores, offices, hospitality, classrooms, and public venues.

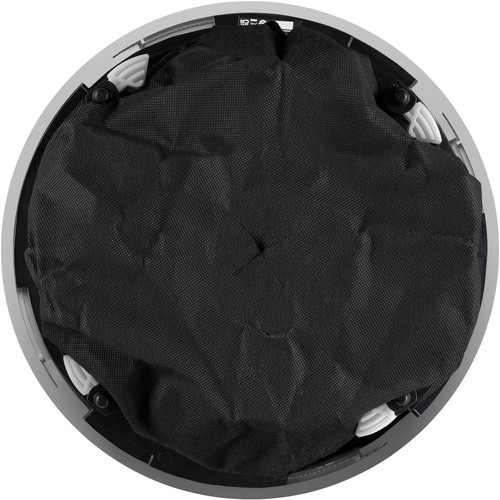

With its low-profile, no back can design, the VC8N installs easily in ceilings with limited depth, providing exceptional flexibility for both new construction and renovations. The wide 110° coverage pattern ensures smooth, even sound throughout a room, often reducing the number of speakers required. Large mounting clamps, non-slip treads, and double-threaded screws make installation fast and secure, while the magnetic paintable grille allows the speaker to blend cleanly into the ceiling.

Supporting both 16-ohm low-impedance and 70V/100V distributed systems, the VC8N offers the freedom to integrate into a variety of audio system designs. Its clean white finish makes it an excellent match for modern interiors, darker ceilings, and venues where subtle visual presence is preferred.

Features

  • 8" 2-way coaxial ceiling speaker in a clean white finish
  • Low-profile, no back can design for shallow or restricted ceiling spaces
  • Wide 110° coverage for consistent sound distribution
  • Flexible 16Ω low-Z or 70V/100V high-Z operation
  • Engineered for clear background music and voice reproduction
  • Large non-slip mounting clamps ensure secure installation
  • Double-threaded clamp screws for quicker setup
  • Paintable magnetic grille blends seamlessly into the ceiling
  • Ideal for offices, hospitality, retail, classrooms, and public spaces

Specifications

System Type 2-way Coaxial type (without backcan)
LF Driver 8" Cone
HF Driver 1" Soft dome
Frequency Range (-10 dB) 52 Hz - 20 kHz
Coverage Angle (H x V) 110° conical
Nominal Impedance 16Ω
Transformar Taps 70V: 12W, 6W, 3W, 1.5W
100V: 12W, 6W, 3W
Power Rating NOISE: 25W, PGM: 50W, MAX: 100W
Sensitivity (1W, 1m) 91 dB SPL
Maximum SPL 111 dB SPL
Connectors 1 x Push terminal (WAGO 294 /2 pin)
Material, Finish, Color VC8NW: White (approx. Munsell N9.3)
Packaging Single
Certificate CE, RoHS
Required Ceiling Board Thickness 2 mm - 37 mm
Dimensions (Dia x D) 12.80" (325 mm) x 5.16" (131 mm)
Weight 6.2 lbs (2.8 kg)
