Yorkville EF10 Elite Series 10" Passive Loudspeaker 325 Watts (650 Watts Peak)

Yorkville EF10 Elite Series 10" Passive Loudspeaker 325 Watts (650 Watts Peak)

Name: Yorkville EF10 Elite Series 10" Passive Loudspeaker 325 Watts (650 Watts Peak)
Brand: Yorkville
SKU: YORK-EF10
Price: 719 USD
Availability: InStock

Write a Review

Part #:

EF10

Model #:

EF10

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.

Description

Yorkville EF10 Elite Series 10" Passive Loudspeaker
and Extremely Durable Dedicated Front of House Box

Features

Ten-inch two-way passive speaker
325 watts (650 watts peak / 250 watts continuous)
127dB peak (124dB continuous) Max SPL
65 - 20k (Hz +/- 3dB)
Made in Canada

Specifications

System Type	2-Way
Active or Passive	Passive
Program Power (Watts)	325 Watts (650 Watts Peak / 250 Watts Continuous)
Max SPL (dB)	127dB Peak (124dB Continuous)
Frequency Response	65 - 20k (Hz +/- 3dB)
Crossover Frequency (Hz)	2900
Driver Configuration	10-inch / 1-inch
HF Driver(s)	1-inch throat (1-inch Titanium Diaphragm)
HF Dispersion (H x V)	100° x 30°
LF Driver(s)	10-inch (2-inch voicecoil)
In / Out Connections	(2) 1/4-inch jacks, (2) Speakon 4-pin
Nominal Impedance	8 Ohms
Sensitivity	99 dB @1Watt/1m
Bar Handles	1
Flypoints	3/8-inch x 3 (2 Top, 1 Back)

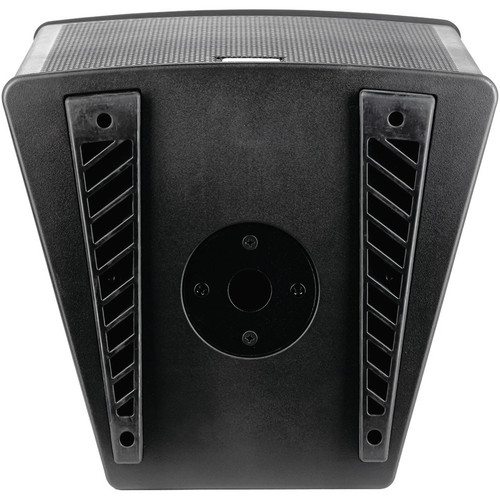

Pole Mount Adapter	1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials	15mm (5/8-inch) 11-ply Russian Birch
Dimensions (H x W x D)	20" (508 mm) x 13.7" (348 mm) x 13" (330 mm)
Weight	42.5 lbs (19.4 kg)
